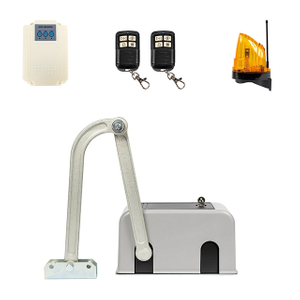

High-Efficiency 90° Swing Door Opener for Modern Entrance Solutions

100 kg Single-Leaf Capacity: Supports doors up to 100 kg, including glass, wood, metal, and aluminum frame doors.
Variable Speed Control: Adjustable speeds from 250 to 450 mm/s ensure smooth motion and prevent door slamming.
Fast 90° Opening: Opens fully in 3 to 7 seconds, ideal for high-traffic corridors and commercial entrances.
Programmable Hold-Open: Adjustable 1 to 30-second delay for easy accessibility and cargo transfer.

Boom Type:
Crank Arm
Drive Type:
DC

Quantity:
Availability:





Inquire Add to Basket

>> Introduction

Our 90° door opener is designed to provide a seamless and efficient entrance solution. It features a robust construction with high-quality materials, ensuring durability and reliability. The machine uses a powerful yet quiet motor to achieve smooth and swift door operation. It supports customizable opening angles and can be adjusted according to specific needs. The safety of users is prioritized with features like obstacle detection and automatic reversal to prevent collisions. Additionally, it offers multiple control methods, including remote control and card access, making it suitable for various applications such as office buildings, hospitals, and residential areas.

The product supports a wide voltage range of AC 110V - 240V for global compatibility. The maximum load capacity for a single door is 100KG. The opening/closing speed (250 - 450mm/s), opening time (3 - 7s), and the time for keeping the door open (1 - 30s) can all be freely adjusted. The operating noise is as low as below 55 decibels. It is equipped with an intelligent obstacle detection system, which automatically reverses the operation when encountering an obstacle, ensuring the safety of pedestrians. At the same time, it has a rich set of expansion interfaces, which can be compatible with various external devices such as electric locks, safety beams, and access card readers, and supports the interlocking function between doors.

The product can be seamlessly linked with the OMKER E-LINKED intelligent access control system to achieve remote control via mobile APP and unified management of multiple devices. It supports both internal and external installation. It is small in size, easy to install, and offers a one-year whole machine warranty and lifetime online technical support. Customization services for OEM/ODM are also available. It is an ideal choice for indoor and light outdoor sliding doors automation upgrades in office buildings, hotels, hospitals, residences, and other places.

Model	DSW-100
Input Power	200V~240V AC Single-phaseAC 110V-240V
Max. Gate Weight (KG)	100KG
Power Consumption	50W
Opening Speed	250-450mm/S(adjustable)
Closing Speed	250-450mm/S(adjustable)
Opening Time	3-7S(adjustable)
Hold-open Time	1-30S(adjustable)
Manual Force	<30N
Swinging Noise	≤55Db
Environment Temperature	-20 ℃ ~+50 ℃
OEM&ODM	Yes

>> FAQ

Q1: How do I reset my automatic swing door opener if it stops responding?

A: To reset your door operator, turn off the main power supply, wait approximately 30 seconds, and switch it back on to clear minor system glitches. If the system still fails to operate smoothly or needs a complete limit re-learning process, follow our detailed guide on How Do You Reset A Gate Opener to properly restore control board settings and default parameters.

Q2: What are the most common operational issues with swing door openers and how can they be solved?

A: Typical issues include sluggish motor movement, unexpected reversing during opening cycles, or complete failure to activate. These problems are often caused by power supply fluctuations, misaligned safety sensors, or mechanical obstruction along the pivot arm. You can review step-by-step solutions for these symptoms in our guide to Troubleshooting Common Automatic Gate Opener Problems.

Q3: What systematic troubleshooting steps should I take if the door opener won't trigger or lock properly?

A: First, verify the main power source and test remote transmitter batteries. Next, inspect safety photo eyes for debris or misalignment, and check physical hinges for binding. For a structured step-by-step diagnostic workflow covering control board indicators and wiring checks, check out our resource on How To Troubleshoot A Gate Opener.

Q4: What key installation requirements ensure optimal performance for a 90° swing door opener?

A: Ensure the door frame and hinges are structurally sound and plumb before mounting the motor arm. Proper alignment prevents mechanical strain, allowing the unit to achieve smooth 90-degree opening cycles and extend long-term drive system lifespan.

Q5: Can this high-efficiency swing door opener integrate with existing access control systems?

A: Yes, the control board supports standard signal inputs for seamless integration with push buttons, motion sensors, wireless keypads, card readers, and commercial building automation controllers.
