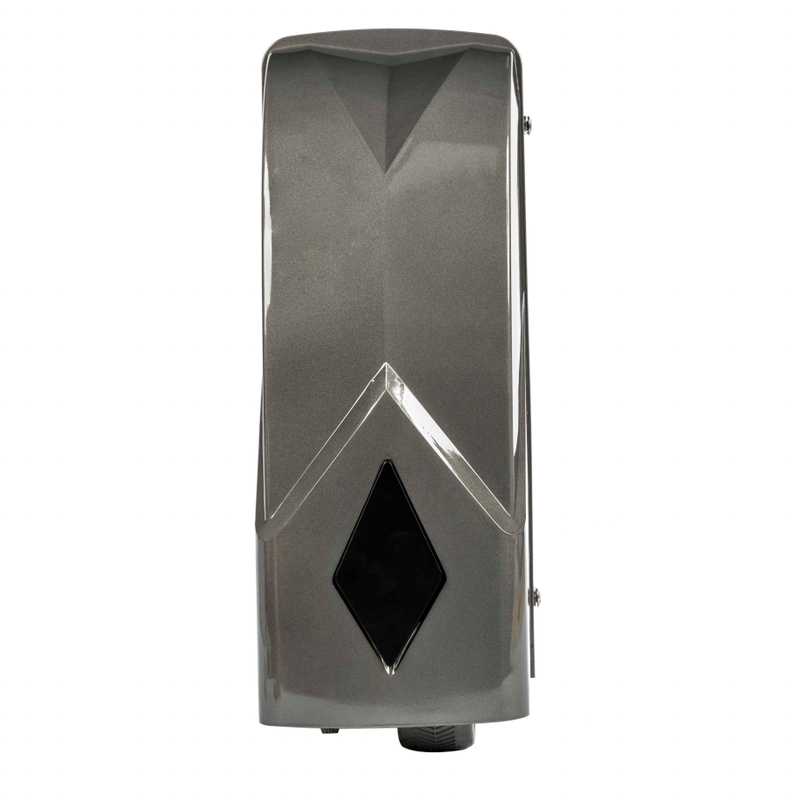

High-Quality Swing Door Motors Door Opener Motor remote controlled door openers

Quantity:
Availability:





Inquire Add to Basket

Product Description

>> Introduction

The products are suitable for large heavy duty doors and are compatible with low energy applications, which can be used in hospitals, airports, shopping centers. It also supports low energy consumption and all-electric mode switching, which can meet different use needs and provide a variety of adjustable functions, such as opening and closing speed and keeping open time.

Model No.	DCK-100D	DCK-150D	DCK-100DFF	DCK-150DFF
Power Supply	INAC120V~240V士10%OUT DC24V
Motor	24VDV Motor
Door Max.Opening Angle	>180°
Motor Speed	2800RPM
Power	150W	200W	150W	200W
Torque	10Nm	12Nm	10Nm	12Nm
Gear Speed	6°/s
Operating Ambient Temperature	-40°C ~+55°C
Weight	36Kg	39Kg	36Kg	39Kg
Thermal Protection	110°C
Single Leaf Max.Width	8M
Single Leaf Max.Weight	1000Kg	1500Kg	1000Kg	1500Kg

>> Function And Features

Efficient and flexible performance

The motor can adapt to a variety of environments and conditions and support a variety of modes to ensure smooth operation in different scenarios.

Energy saving and environmental protection

The motor is designed with low energy consumption, which significantly reduces energy consumption.

The motor supports low power consumption manual thrust mode and has intelligent power saving function.

Safety and reliability

Equipped with safety sensor and anti-clip function, when the door encounters obstacles during operation, it will automatically stop and reverse movement to ensure the safety of users.

Support for non-volatile memory, which preserves Settings even after power failure without reconfiguration.

Versatility suitable for all product

Automatic gate openers,AC/DC, sliding gate opener ,swing gate opener, automatic retractable folding gate opener.

Saving money

Can control multiple gates, more gates more cost effective, can add 50 mobile phones, no need to add the remote controls.

Easy installation

After download APP and WIFI been connected,and long range control can be realized by mobile phone .

>> FAQ

1.Ease of installation and maintenance?

The motors support a variety of mounting methods, including surface mounting, hidden mounting and ground mounting, suitable for new construction projects or retrofits of existing doors.

Use of advanced technology to reduce maintenance costs and repair needs.

2.Intelligence and convenience?

The motor supports Bluetooth or mobile application control, and the user can open and close the door through the phone, while supporting remote monitoring and setting adjustment.

Equipped with intelligent learning function, it can automatically optimize the performance according to the weight of the door and the environment in which it is used.
