>> Introduction

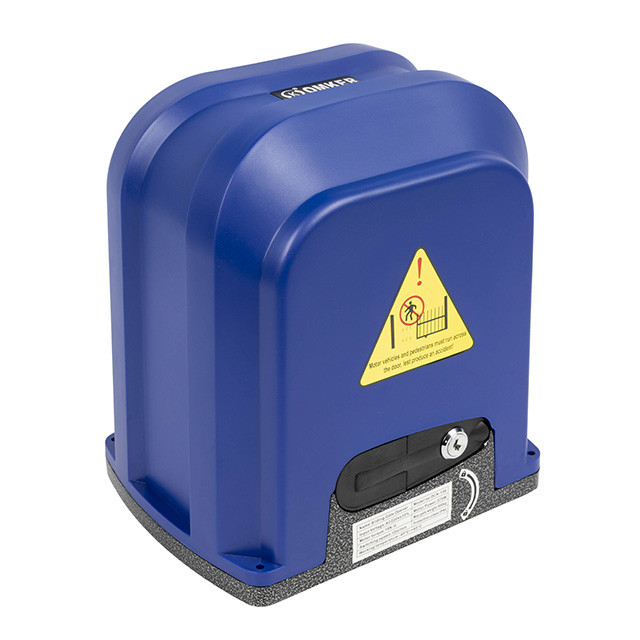

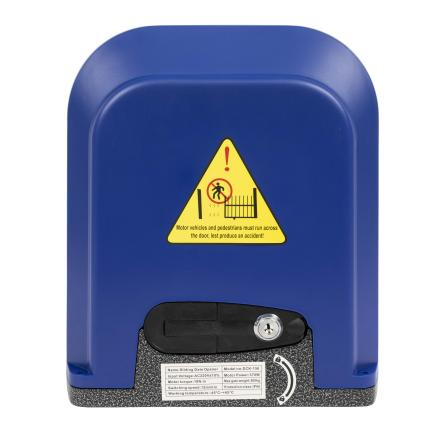

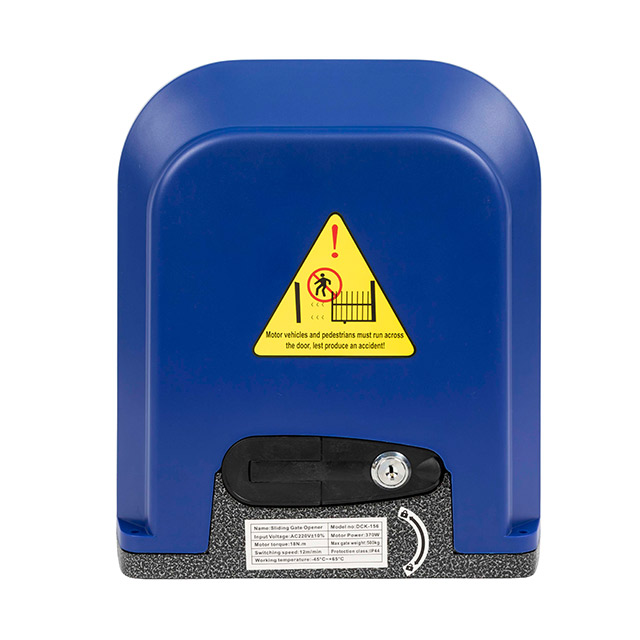

Automatic sliding gate opener have keypad / single button interface and Infrared safety sensor interface.Gate operator can soft start and soft stop function and the soft stop width are adjustable, and the soft start function can be disabled.And motor output torque is adjustable,working time is adjustable,run back when meet obstacle.
Model | DCK-156D | DCK-166D | DCK-166E | DCK-176D | DCK-186D | DCK196D | |
Input Power | AC Single-phase120V/220V~240V | ||||||
Max. gate weight | 500KG | 800KG | 1200KG | 1600KG | 2000KG | 2500KG | |
Max. Torque | 18Nm | 22Nm | 35Nm | 50Nm | 60Nm | 75Nm | |
Rated Power | 370W | 450W | 550W | 750W | 900W | 1200W | |
Protection Class | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | |
Speed (m/min) | 12 | 12 | 12 | 12 | 12 | 12 | |
Temperature | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | |
Noise | ≤56dB | ≤56dB | ≤56dB | ≤56dB | ≤56dB | ≤56dB |
>> Function And Features
Emergency application
User can select Auto-close function.
Manual key release designed for emergency purposes.
Simple operation
OPEN, STOP, CLOSE cycle, control by one button on the remote control.
Automatic close function, time is adjustable.
Accessory selection

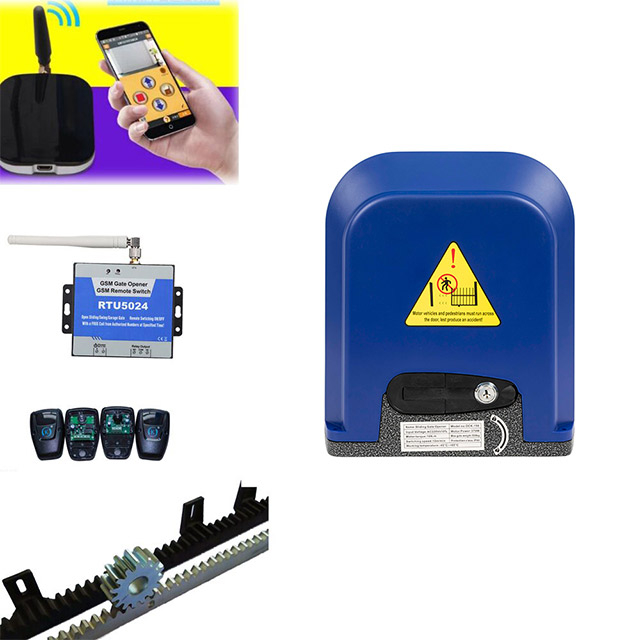

Works with infrared sensor, alarm lamp, external button switch, GSM device .
Versatility suitable for all product
Automatic gate openers, AC/DC, sliding gate opener ,swing gate opener, automatic retractable folding gate opener.
Saving money
Can control multiple gates, more gates more cost effective, can add 50 mobile phones, no need to add the remote controls.
Easy installation
After download APP and WIFI been connected,and long range control can be realized by mobile phone .
>> FAQ
1.Whether the product is safe during use?
Automatic reverse function when gate meets obstalce in closing,Soft start slow stop.
2.What is our factory service?
Rich exporting services, experience more than 10 years, we have a professional technology team and sales team to answer your questions, if you find some problems to install or use the product,you can ask us to help you solve the problem.
3.Can you make my own designed products?
We can make the products according to your requirements given your detailed drafts or samples.
