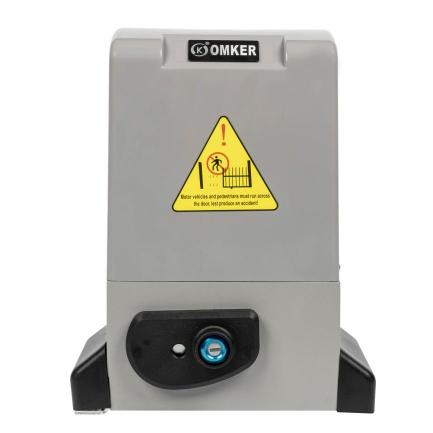

220VAC 2000KG Heavy Duty Automatic Sliding Gate Opener IndustrialVilla Application Working Voltage Motor

220VAC 2000KG Heavy Duty Automatic Sliding Gate Opener Industrial Villa Application Working Voltage Motor

Quantity:
Availability:





Inquire Add to Basket

Product Description

>> Introduction

The automatic door motor has a certain aesthetic and modern sense, and can provide unique design elements for the building.And heavy duty automatic door operators can select auto-close function. Door opening machine is a mechanical and electrical integration remote control door opening machine for the courtyard, villa translation door professional design, is the host and electrical control part, remote control part of the three into one, with easy installation, stable use, beautiful appearance, lightweight structure, smooth transmission, ultra-low noise, power outage relief and other characteristics.

Model	DCK-200	DCK-200	DCK-200 Oil Immersed Type	DCK-200 industrial Heavy Type	DCK-200 industrial Heavy Type
Input Power	120V/220V~240V 50/60HZAC Single-phase	120V/220V~240V 50/60HZAC Single-phase	120V/220V~240V 50/60HZAC Single-phase	120V/220V~240V 50/60HZAC Single-phase	120V/220V 240V 50/60HZAC Single-phase
Max. Gate Weight (KG)	500KG	1200KG	1600KG	2000KG	3000KG
Max. Torque	18Nm	35Nm	40Nm	50Nm	65Nm
Rated Power	370W	550W	750W	900W	1200W
Protection Class	IP44	IP44	IP44	IP44	IP44
Speed (m/min)	12	12	12	12	12
Temperature	-45℃~+65°C	-45℃~+65°C	-45°C~+65°C	-45°C~+65°C	-45℃~+65°C
Noise	<56dB	<56dB	<56dB	<56dB	<56dB
Certificate	CE	CE	CE	CE	CE

>> Function And Features

Technology upgrading

The sliding gate opener 2000kg structure of integrated mechanic part and electronic part with built-in control panel, no any external controllers needed.

Remote control with rolling code technology.

Unique circuit design with stroke learning mode, accurate on and off positioning.

When there is no power
When power failure , use special key to release clutch,and push the door manually.

Modern design sliding gate emergency release provides manual operation in case of power failure.

Security enhancement

With software start-up design, automatic return function in case of resistance (adjustable resistance) to ensure safety.

The whole machine adopts ultra-quiet design technology, the noise is less than 52 decibels, and the whole series of motors are equipped with thermal protection function to ensure that the motor will not be overheated and burned.

Motor force size adjustable function, can adjust the motor operation force.

Versatility suitable for all product

Automatic gate openers, AC/DC, sliding gate opener ,swing gate opener, automatic retractable folding gate opener.
