A sliding gate motor is an electromechanical device designed to provide automated lateral movement for sliding gates, offering significant improvements in property security, operational convenience, and long-term value for both residential and industrial applications.
Investing in the correct sliding gate motor not only optimizes daily traffic flow but also acts as a primary deterrent against unauthorized access. With advancements in motor technology, users can now enjoy features such as obstacle detection, soft start/stop functions, and integration with smart home or facility management systems, making the sliding gate motor an indispensable component of modern perimeter security.
This article provides a deep dive into the various technologies involved in selecting, installing, and maintaining your sliding gate motor, ensuring that you make an informed decision that aligns with your specific operational requirements.

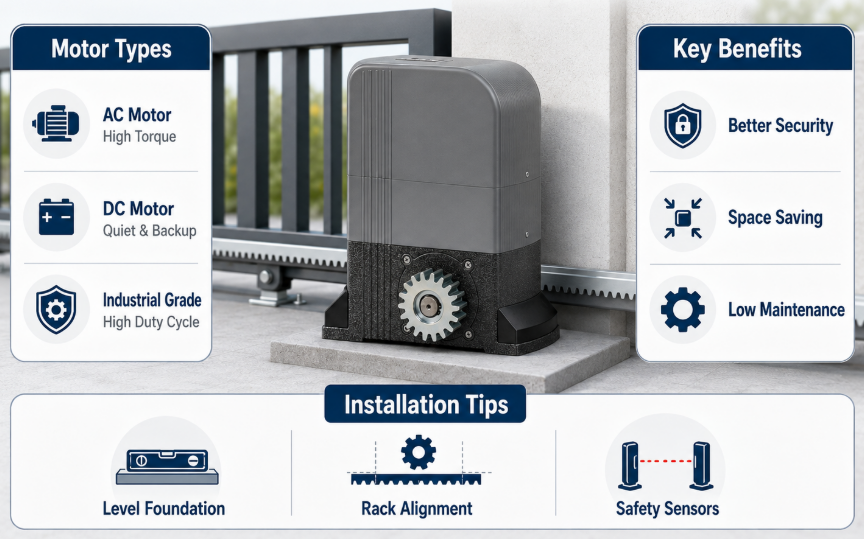

Types of Sliding Gate Motors
Benefits of Sliding Gates
Installation Tips for Sliding Gate Motors
Why Choose Modern Sliding Gate Motors?
Sliding gate motor technology is primarily categorized by power source (AC or DC), intended weight capacity, and duty cycle (frequency of use), each tailored to meet specific industrial or residential demands.
The selection of a sliding gate motor depends heavily on the weight and length of the gate leaf. AC-powered motors are traditionally chosen for heavy-duty applications where consistent, high-torque power is needed. For example, a robust high-capacity AC sliding gate motor is an ideal choice for gates weighing up to 1000kg, providing the necessary strength to move heavy materials reliably day after day. These motors are designed for longevity and can withstand the rigors of frequent use in busy access points.
Conversely, DC motors offer high efficiency and are often paired with battery backups, ensuring the sliding gate motor remains functional during power outages. For industrial settings, specialized solutions such as a remote-operated industrial gate opener are essential. These systems are engineered to handle continuous cycles, high-frequency usage, and challenging environmental conditions, providing a seamless operational experience for facilities that require high throughput.
When comparing different types of motors, it is helpful to look at technical specifications:
Motor Type | Primary Use Case | Key Advantage |
AC Sliding Gate Motor | Heavy/Industrial Gates | High continuous torque |
DC Sliding Gate Motor | Residential/Light Commercial | Battery backup/quiet operation |
Industrial-Grade Motor | High-traffic complexes | High duty cycle capability |
The primary benefits of installing a professional-grade sliding gate motor include enhanced perimeter security, significant space optimization, increased property convenience, and long-term cost-efficiency through durability and reduced manual intervention.
Space-saving design is perhaps the most notable advantage of a sliding system. Unlike swing gates that require a large radius of clearance, a sliding gate moves parallel to the fence line, making it perfect for properties with short driveways or limited space. When paired with a reliable sliding gate motor, these systems provide a smooth and controlled entry experience that is both aesthetically pleasing and highly functional.
Beyond spatial advantages, security remains paramount. A modern sliding gate motor acts as a sturdy barrier that is difficult to force open manually when the motor is engaged. This provides peace of mind for both residential homeowners and business owners. Furthermore, integrating smart access controls means you can monitor entry points remotely, ensuring that only authorized individuals gain access to your facility or home.
Finally, durability is a core benefit. When you select a long-lasting, low-maintenance sliding gate motor, you reduce the total cost of ownership significantly. Maintenance becomes a simplified, periodic task rather than a constant burden, allowing the system to operate efficiently for years. The following list highlights the key operational benefits:
Increased security through locked, controlled gate positioning.
Optimized use of property space due to lateral sliding movement.
Enhanced safety features such as integrated obstacle detection.
Reduced physical labor by automating entry and exit processes.
A successful and safe installation of a sliding gate motor relies on precise foundation preparation, correct alignment of the gear rack, professional electrical wiring, and thorough safety sensor calibration to ensure peak performance and user safety.
⭐ For complete technical specifications, electrical schematics, and detailed safety guidelines, please click the link above to view the full "DCK-156D Series Motor User Manual." |
Foundation and Metal Base Preparation: Before mounting the sliding gate motor, the base foundation must be solid and level. The door opener should be securely mounted onto a dedicated metal base using expansion bolts (referencing the standard installation dimensions, such as the 205 * 80 mm mounting hole layout). Any shifting in the foundation can cause gate drag or gear misalignment, leading to premature wear. Always ensure the gate moves freely by hand before final installation.
Precision Rack and Pinion Alignment: The relationship between the rack and the motor's output gear is critical. The easiest installation method is to place the rack sections on the gear teeth of the motor first, disengage the clutch using the dedicated release key, and manually push the gate bit by bit to mark and secure each mounting point. Ensure that the teeth of the rack perfectly engage with the pinion gear, maintaining a slight clearance so that the entire weight of the gate never rests directly on the gear.
Limit Switch Calibration: Proper installation of the limit switch brackets is essential for accurate travel control. For spring switches, adjust the bracket angle until the spring makes reliable contact with the switch flapper. For magnetic limit switches, ensure the magnet points directly toward the motor housing and maintains an optimal gap (approximately 10-15 mm to match the internal magnetic sensor's position.
| |
Electrical Wiring and Grounding: All electrical connections must comply with related standards, ensuring that the power supply matches the motor requirements (e.g., AC single-phase voltage with stable grounding). Proper circuit short and electric leakage protection devices must be equipped. Connect the phase, common, and earth wires securely to the designated terminals, and ensure the ground wire is in top condition.
Modern sliding gate motors are chosen for their superior technological integration, high safety standards, whisper-quiet operation, and energy efficiency, making them the superior choice for contemporary property management.
Technological advancement has transformed the sliding gate motor into a smart device. Today's motors often feature soft-start and soft-stop capabilities, which gently ramp up speed and decelerate at the end of the travel, preventing structural damage to the gate and reducing noise. This sophisticated movement is a hallmark of high-quality engineering that extends the lifespan of both the gate hardware and the motor itself.
Furthermore, safety is ingrained in the hardware. Modern motors include advanced obstacle detection, where the motor senses resistance and automatically reverses direction. This is a vital feature for homes with children or pets, or commercial spaces with high foot traffic. The ability to integrate these motors with various access control devices—such as keypads, remote controls, and mobile apps—provides a high level of flexibility.
Lastly, energy efficiency and reduced environmental impact are driving the industry. Modern designs prioritize reduced power consumption in standby modes without sacrificing the responsiveness of the system. By choosing a robust, high-performance sliding gate motor, you are investing in a future-proof solution that delivers consistent performance, year-round security, and minimal operational disruption.
Selecting the right sliding gate motor involves balancing power requirements with usage frequency and specific site constraints. By understanding the types, benefits, and critical installation parameters outlined in this guide, you can ensure that your access system remains secure, functional, and efficient. Remember that proper maintenance and professional installation are the keys to a long-lasting, high-performance automated entrance.
