Intelligent Vehicle Loop Detector Sensor for Gate Automation Modern Design for Villas and Toll Roads

Intelligent Vehicle Loop Detector Sensor for Gate Automation Modern Design for Villas and Toll Roads

This vehicle inductive loop detector is a professional ground‑embedded vehicle sensing accessory perfectly matched with automatic swing, sliding gate openers and parking barrier systems. Working together with buried loop wire, it detects vehicles by identifying inductance changes within the electromagnetic field, sending accurate trigger signals to gate control units for auto‑opening, obstruction protection and reverse action when vehicles enter or stay within the detection zone. Widely adopted for residential driveways, commercial parking lots, factory access entrances and toll access points, it delivers stable all‑weather vehicle detection performance.

Drive Type:
AC, DC

Quantity:
Availability:





Inquire Add to Basket

Product Description

>> Introduction

Product name	Inductive Vehicle Single Loop Detector
Application	Security Access Control Management
Certificate	CE Approved
Supply voltage	230V AC
Voltage tolerance AC	+10% / -15%
Voltage tolerance DC	±15%
Output relays	240V/5A
Power Consumption	4.5VA
Operating temperature	-20°C to +65°C
Storage temperature	-40°C to +85°C

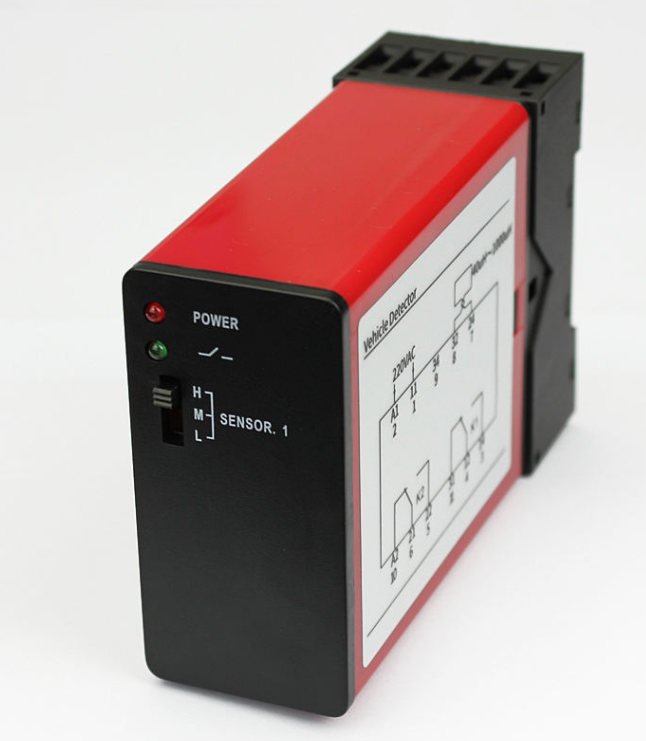

Adjustable Sensitivity & Frequency: Multi‑level sensitivity and working frequency configurable via DIP switches, effectively avoids signal interference from adjacent loops to cut false alarms.
Two Working Modes: Supports Presence Mode for holding gate open and Pulse Mode for one‑shot trigger, flexible for diverse gate control logic.
Fast Response: Quick reaction time ensures instant response for passing or stationary cars, trucks and forklifts.
Wide Compatibility: Works with most automatic gate openers & barrier controllers; compatible with wide loop inductance range for different loop‑wire layouts.

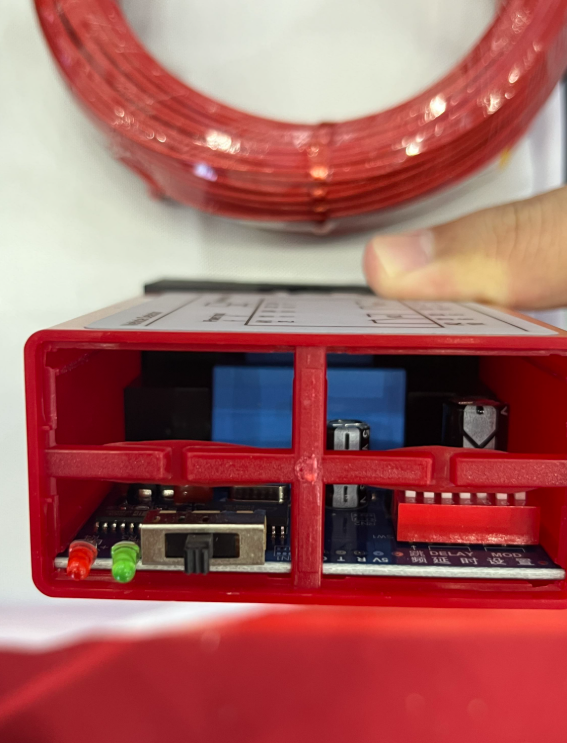

Durable Outdoor Performance: Tolerates broad operating temperature range, fits long‑term outdoor installation with status LED indicators for simple installation & troubleshooting.

FAQ

Q1: What is this loop detector used for? A1: It is a vehicle inductive sensor for automatic gate openers and parking barriers. It detects vehicles above the buried loop wire and sends signals to trigger gate opening, obstruction protection or hold-open function.

Q2: Does it work with my sliding gate opener? A2: Yes, it is widely compatible with most sliding, swing gate openers and barrier controllers. It supports standard loop wiring for driveway access control.

Q3: Can I adjust its sensitivity? A3: Sure. It comes with DIP switches to set sensitivity and working frequency. You can reduce false triggers caused by interference from nearby loops.

Q4: What are the two working modes? A4: It supports Pulse Mode (one-time trigger when vehicle arrives) and Presence Mode (keeps the gate open while the vehicle stays on the loop).

Q5: Is it suitable for outdoor use? A5: Yes. It works in a wide temperature range. The detector box is installed inside the control cabinet, while the loop wire is buried under the road surface.

Q6: How to troubleshoot it? A6: It has LED status indicators. You can check the light status to confirm power supply, loop connection and vehicle detection status quickly.
