>> Introduction
Open the door with car Bluetooth operation guide
1.When this device is used as a car Bluetooth, you can choose not to download the APP, and you can useit directly.
(3)lf the indicator is off at intervals, the device is in the link state.

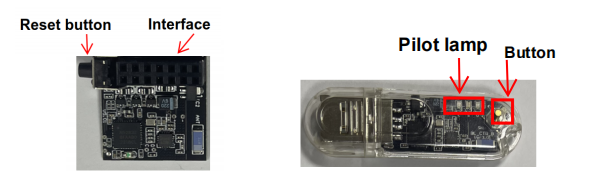

3.Pairing and deletion instructions:Note: The button setting operation must be performed when no peripheral is connected to the maindevice
(1) Delete the bound phone: Long press the reset button for six seconds, the light flashes quickly, and thenlet go to clear the phone connection.
(2) Delete matching vehicle equipment: press the reset button twice within two seconds, wait for twoseconds after the indicator light, immediately press and hold the reset button(at this time, the indicator lighwill be off for 1 second and then on) ,Six seconds later, the indicator light will flash quickly, and the system
will delete all USB peripherals.
(3) Car USB pairing method: Plug the main device of the car Bluetooth module into the Bluetooth moduleinterface of the door control motherboard and press onceThe reset button is rele ased, the indicator blinks quickly, and wait for the peripheral USB connection. At thistime, the USB device needs to be plugged in quickly and equippedAfter the pair is successful, the 3 indicator on the USB is steady on, unplug the USB and power it on again.Second repeat operation.
(4) Set the automatic closing time: press the button three times within two seconds, wait for two secondsand the indicator light will turn off, then the system will proceedTo set the delay closing time of the vehicle leaving, press the button (please wait until the indicator is offand then press the button), press onceOne second, three seconds if the button is not pressed, the indicator will be restored. When there is noperipheral, the connection state indicates that you have exited the setting delay door closingTime (Maximum delay is 99 seconds, default is 5 seconds for new devices).
(5) All the matched devices are not online (including the mobile phone connection, the indicator light is notblinking at the same interval, indicating that all the devices are offOpen) and then close the door. (Note: The distance of disconnection is about twice the distance ofconnection)
4.USB car device button function description:1. In the closed state, press the door within two seconds (the green light flashes twice).
2. When the door is open, press the door twice within two seconds (yellow light flashes twice)
3. Press the release button three times within two seconds, and the indicator wil turn on (blue light) for twoseconds. (Please do not operate during device connection.After the blue light is off, the yellow, red andgreen three indicators wil be illuminated according to the current system's door opening distance level). thisWhen entering the setting whether to connect the automatic door opening and set the approximateconnection door opening distance level function.
(1) The signal light is completely off, which is the manual door opening mode (the USB vehicle device willnot automatically open the door after connection).
(2) A signal light (yellow light) is the most recent door mode, and the vehicle will open the door only when itis near.(3) Two signal lights (yellow light red light) is the middle distance to open the door, and three signal lights(yellow light red light green light) indicate the connectionCan open the door (the farthest distance from the door).
Note: The distance of disconnection is abouttwice the distance of connection)The value is automatically saved and the setting mode exits after 3seconds of pressing the button.
