>> Introduction

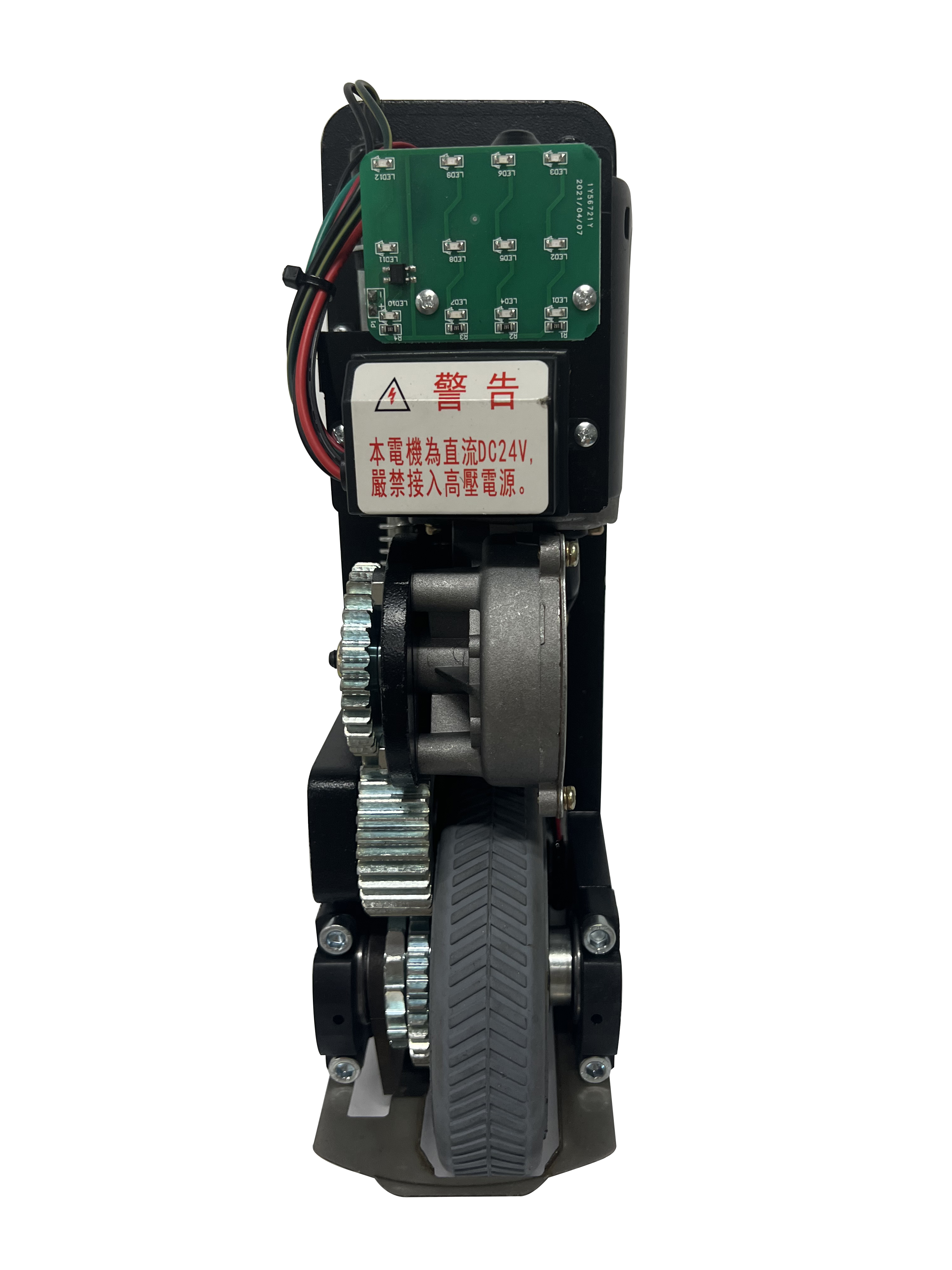

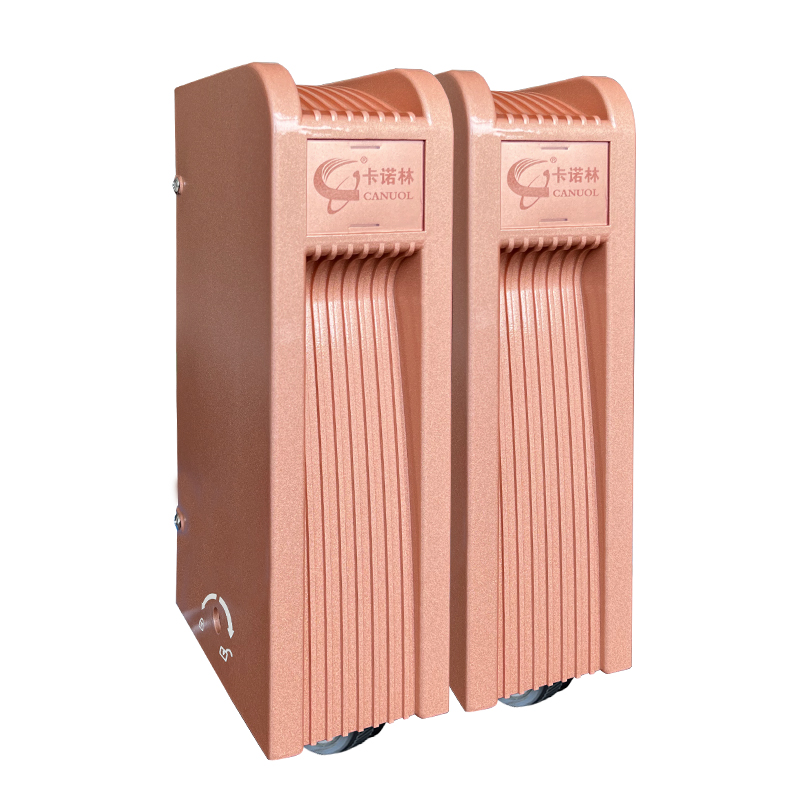

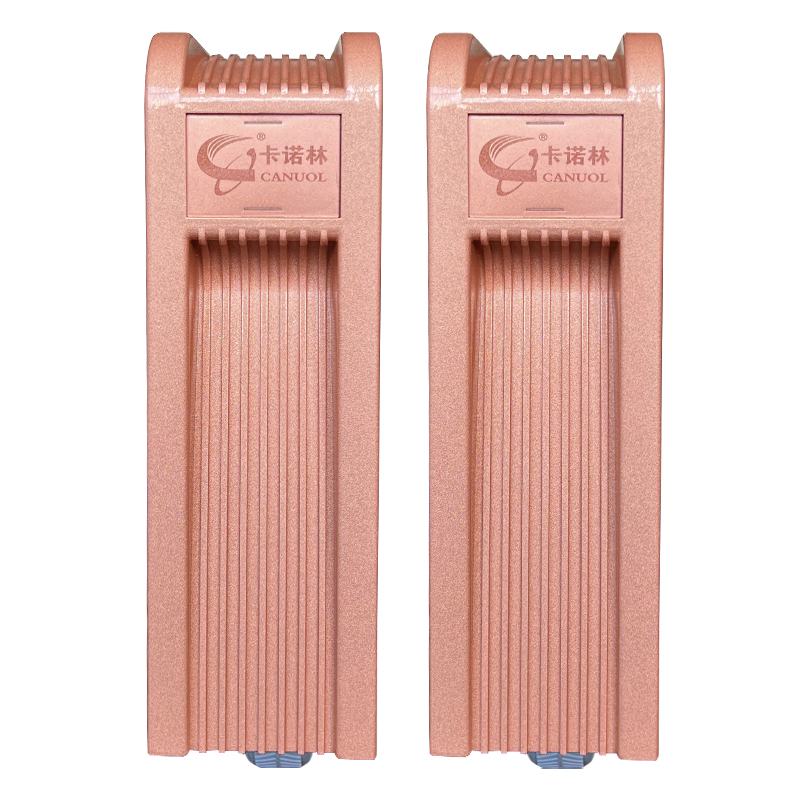

The Swing Door Motor is a high-performance solution designed to automate swing doors in various settings, including commercial buildings, residential complexes, and industrial facilities. This motor is equipped with a direct-arm mechanism that ensures smooth, reliable, and quiet operation. It features advanced safety technologies such as infrared sensors and obstruction detection to prevent accidents and ensure safe usage.
Model | Specification |
Warranty | 1 Year |
After-sale Service | Online technical support |
Project Solution Capability | total solution for projects |
Application | Hotel |
Design Style | Modern |
Place of Origin | Fujian |
Brand Name | OMKER |
Model Number | DCK-980KS |
Product Name | DCK-980/990KS |
Working Voltage | DC24V |
Motor Power | 100W/120W |
Opening Mode | Open inside/outside |
Packing Weight | 15/16KG |
Operating Speed | 13 m/min |
Package Size | 390*220*360mm |
Adaptive Temperature | -30°C-+50°C |
Single Door Weight | ≤500KG |
>> Function And Features
1.What is the maximum door weight this motor can handle?
The motor can handle doors weighing up to 400kg. For heavier doors, we recommend consulting with our technical support for customized solutions.
2.Does the motor come with any safety features?
Yes, the motor includes several advanced safety features:
Infrared Protection: Sensors detect obstacles in the door's path and stop or reverse the door to prevent collisions.
Obstruction Detection: The motor automatically reverses direction if it encounters an obstacle during operation.
Emergency Manual Override: Allows manual operation in case of power failure or emergencies.
