>> Introduction
Our motor is an ideal solution for rolling doors, offering compact design and powerful performance. The tubular shape allows for seamless integration into the door system, saving space and providing a sleek appearance. This motor is designed with high-quality components to ensure durability and reliability. It features a built-in thermal protection system that automatically shuts down the motor if it overheats, preventing damage and extending the lifespan of the motor. The motor operates smoothly and quietly, providing a seamless experience for users. It is also easy to install and maintain, making it a cost-effective choice for rolling door applications.
Model | Power Source (V) | Rated Frequency (Hz) | Lifting Force (KG) | Output Torque (N.m) | Output Speed (r/min) | Lifting/Mass Raising Height | Rated Power (W) | Rated Current (A) | Short-team Ration (min) |
DCK-300KG-1P | 220 | 50 | 300 | 164 | 5 | 6.0 | 250 | 2.5 | 8 |
DCK-300KG-3P | 380 | 50 | 300 | 343 | 5 | 6.0 | 180 | 0.8 | 15 |
DCK-600KG-1P | 220 | 50 | 600 | 412 | 6 | 6.0 | 370 | 3.5 | 8 |
DCK-600KG-3P | 380 | 50 | 600 | 412 | 6 | 6.0 | 250 | 1.5 | 15 |
DCK-800KG-1P | 220 | 50 | 800 | 647 | 4.2 | 9.0 | 400 | 4.7 | 8 |
DCK-800KG-3P | 380 | 50 | 800 | 647 | 4.2 | 9.0 | 300 | 2.3 | 15 |
DCK-1000KG-3P | 380 | 50 | 1000 | 810 | 3.6 | 9.0 | 400 | 2.4 | 15 |
DCK-1300KG-3P | 380 | 50 | 1300 | 1050 | 4.2 | 13.0 | 600 | 3.5 | 15 |
DCK-1500KG-3P | 380 | 50 | 1500 | 1220 | 3.8 | 13.0 | 600 | 4.0 | 15 |
DCK-DC-500KG-1P | 220 | 50 | 500 | 490 | 4.8 | 6.0 | 200 | 12.0 | |
DCK-DC-600KG-1P | 220 | 50 | 600 | 588 | 4.8 | 6.0 | 250 | 12.0 |

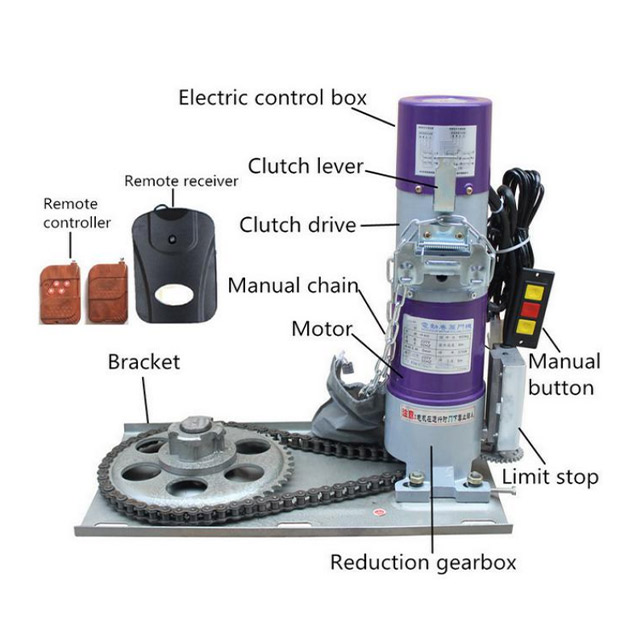

>> Function And Features
>> FAQ
1.How do I choose the right roller shutter motor for my door?
A: Consider the weight and size of your door, the type of operation (manual or electric), and the required features such as remote control or overheat protection. Ensure the motor is compatible with your door's dimensions and load capacity.
2.What are the key features to look for in a roller shutter motor?
A: Key features include overheat and overload protection, safety brakes, precise limit control, manual operation in power failure, low noise operation, and high torque. These features ensure safety, reliability, and ease of use.
3.Can I customize the roller shutter motor to fit my specific needs?
A: Yes, many suppliers offer customization options for roller shutter motors, including different voltages, control systems, and additional features like remote control or fire-proofing.
