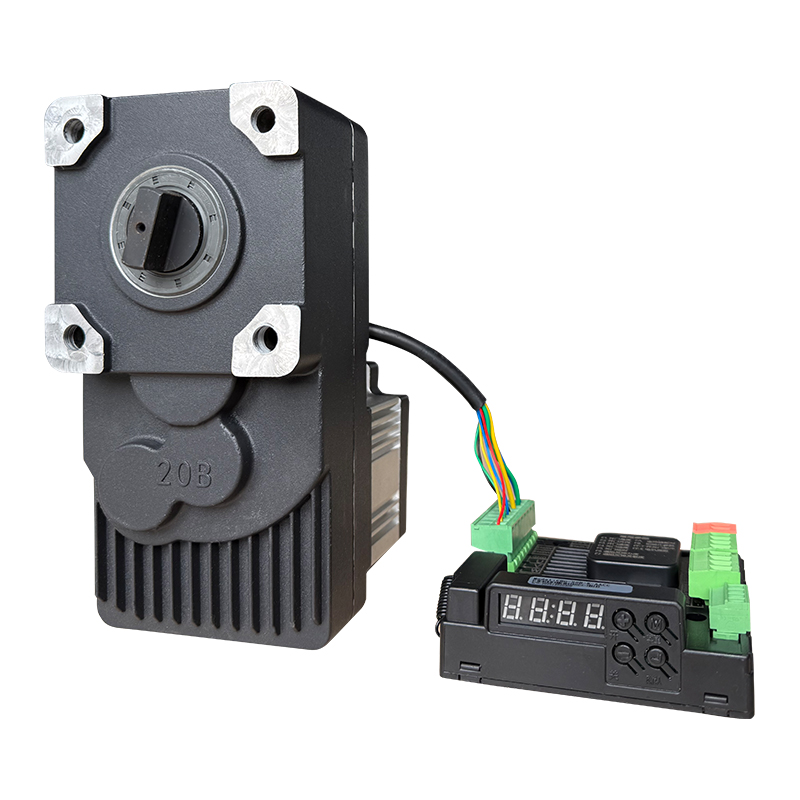

CBG-20B-K sliding gate control board supports swipe card, password, remote control, sensor, IC/ID card, fingerprint and facial recognition access. It drives DC brushless motors with longer lifespan and better efficiency. Featuring digital circuit design, it creates low vibration, low noise and little heat during operation.
Built-in motor feedback cuts extra sensors and limit switches. Equipped with industrial three-loop servo control, it has anti-bounce, emergency stop and anti-collision & windproof functions. Users can adjust running speed, buffer speed and closing force, customize LED light schedule and realize automatic unattended gate opening & closing. Made of industrial standard materials for stable daily operation.
>> Introduction
Model | CBG-20B-K |
Voltage | DC 24V |
Output Power | 30W |
Current | 1.5A |
Insulation Class | Class F |
Opening Time | 3~6 seconds |
Temperature Range | -30°C~+70°C |
Humidity | ≤85% |
Altitude | -≤1,000m |
>> Function And Features
>> FAQ
1.How safe is the product remote control?
Sliding gate control board with remote control function, control sensitively, control long distance, strong anti-interference. Using the most advanced jump code technology, have one million password groups that can not be deciphered, and is safer and more secretive than the traditional remote controller (6561 password groups) in the market.
2.How safe is the product?
Products through ISO9221:2000 certification, CE certification, 3C certification.
Automatic electric gate opener motor can slowly start and stop,stable working and no inertia.
Can adjust the force for slow stop and start.
3.Is the product convenient and adjustable?
Gate opener automatic the starting torque is adjustable,adjust the time from 1-120 seconds.
