Rolling shutter doors are designed for heavy-duty security, structural durability, and efficient vertical space-saving operation across industrial and commercial facilities.

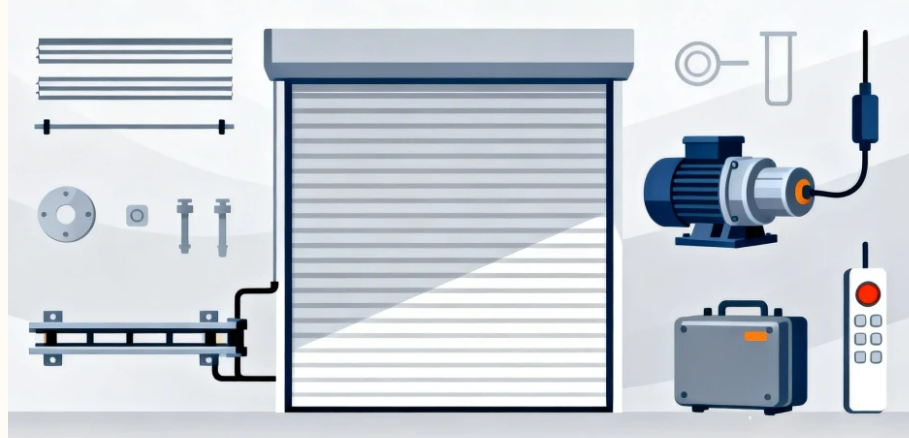

A complete automated system integrates a high-strength curtain, precision barrel tube, robust guide rails, and specialized support hardware.
Essential accessories include infrared safety photocells, wireless encrypted remote transmitters, manual override cranks, and IoT control modules.
Motor selection depends strictly on curtain weight, physical dimensions, operating frequency, and environmental ingress protection ratings.
Rigid adherence to professional engineering specifications ensures long-term operational reliability, safety compliance, and minimal maintenance downtime.
Rolling shutter doors are precision-engineered vertical security barriers designed for industrial and commercial facilities, utilizing a compact coiling mechanism around an overhead barrel tube to maximize opening space while delivering exceptional wind resistance and structural durability. As integrated electromechanical systems, high-performance rolling shutters depend on accurate mechanical alignment, corrosion-resistant materials, and high-efficiency drives that transform rotational torque into smooth vertical linear movement. By factoring in variable drum radiuses and end-lock retention under severe environmental loads, these doors withstand high wind pressures and integrate seamlessly with building management systems, fire alarms, and automated access networks to protect personnel and secure high-traffic logistical perimeters.
Technical Parameter | Standard Industrial Specification | Heavy-Duty Commercial Specification |
Curtain Material | Hot-dipped galvanized steel / Extruded aluminum | Double-walled insulated steel with PU foam |
Nominal Slat Thickness | 0.8 mm to 1.2 mm | 1.5 mm to 2.0 mm |
Wind Load Resistance | Class 3 (up to 800 Pa) | Class 5 (up to 1600 Pa) |
Operating Temperature | -20°C to +60°C | -30°C to +70°C |
Standard Finish | Polyester powder coating | Polyurethane corrosion-resistant coating |
Maintenance Tip: Regular inspection of the curtain slats, side guide alignment, and spring tension adjustments prevents premature mechanical wear, reduces frictional drag on the motor, and ensures whisper-quiet vertical travel throughout the operational lifecycle of the rolling shutter system. |

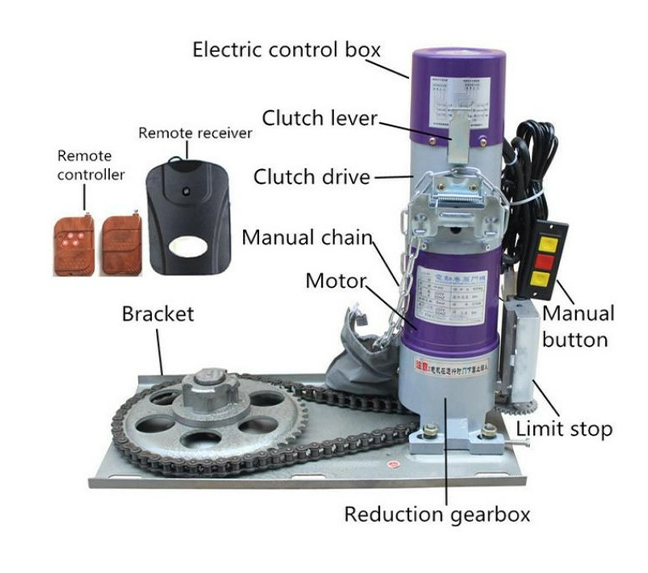

Component Name | Primary Material | Core Function | Maintenance Interval |
Motor | Copper / Cast Aluminum | Generates the primary electrical torque to drive the rolling shutter system | Annual electrical winding inspection |
Reduction Gearbox | High-Strength Alloy Steel | Transmits and reduces motor rotation speed to optimize output torque | Semi-annual gear lubrication check |
Bracket | Structural Carbon Steel | Securely mounts and supports the motor and drive operator assembly | Annual anchor bolt verification |
Electric Control Box | ABS Plastic / Metal Enclosure | Houses internal relay switches and control circuitry for automated operation | Annual terminal connection check |
Clutch Lever & Drive | Galvanized Steel / Alloy | Engages or disengages the mechanical drive for manual or electric switching | Semi-annual operational test |
Manual Chain | Galvanized Carbon Steel | Provides manual emergency lifting and lowering during power outages | Annual tension and rust inspection |
Limit Stop | Precision Mechanical Steel | Controls upper and lower travel boundaries to prevent over-winding | Annual limit calibration check |
Manual Button | Plastic / Electronic Housing | Enables direct wall-mounted push-button control for local operation | Quarterly functional testing |
Remote Controller & Receiver | ABS Plastic / RF Circuitry | Facilitates wireless radio-frequency command transmission and reception | Battery replacement as needed |
Safety Photocells and Infrared Sensors: Safety photocells project an invisible infrared beam across the doorway threshold to instantly signal the drive system to reverse or stop if the optical path is interrupted, providing vital protection against crushing injuries within weatherproof, dust-resistant housings that integrate seamlessly with professional automated motor setups.
Wireless Remote Transmitters and Receivers: Wireless remote transmitters deliver convenient radio-frequency control utilizing encrypted rolling-code frequency transmissions to prevent signal interception, featuring multi-channel relay outputs designed to coordinate smoothly with advanced motorized operators and centralized building management systems.
Manual Override Crank Systems: Manual override cranks provide an essential mechanical backup mechanism consisting of a geared reduction handle that connects directly to the motor head, enabling facility staff to safely raise or lower the shutter during unexpected power outages while complementing standard motorized drive operations.
Automatic Locking Pins and Security Bolts: Automatic locking pins and security bolts engage mechanically at the fully closed position to immobilize the curtain, working alongside the motor's internal worm gear mechanism to deliver dual-layer anti-lift security and maximum asset protection after business hours.
Smart Wi-Fi and IoT Control Modules: Smart Wi-Fi and IoT control modules bridge motorized systems with digital network infrastructures, enabling remote smartphone monitoring, automated maintenance alerts, and global access permissions to streamline multi-site operations alongside standard control setups.
Rolling shutter doors rely on specialized electric drives engineered for high torque, precise limits, and reliable thermal management. When specifying solutions, engineers choose motor types based on curtain weight and spatial constraints, utilizing high-performance options like an advanced automatic rolling shutter motor to ensure maximum efficiency and mechanical reliability. Modern installations feature space-saving tubular motors, balanced central axis drives for medium commercial doors, and heavy-duty industrial shaft-end operators built with copper windings, alloy gears, and thermal overload protection to eliminate failure risks across demanding global environments.
Tubular roller shutter motors are compact, cylindrical electromechanical drives designed to slide entirely inside the core barrel tube, providing a completely hidden installation footprint and utilizing high-precision planetary gears to deliver smooth rotational force for architectural projects seeking professional automatic rolling shutter motor solutions that meet international standards.

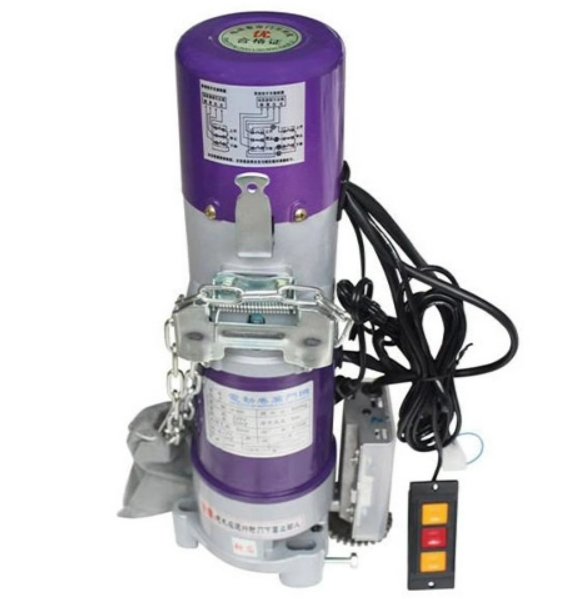

Central axis motors are traditional external drive units mounted alongside the main spring-loaded shaft, utilizing a robust gear train to assist spring balancing systems in lifting medium-weight commercial shutters while simplifying manual override access for retail maintenance technicians.
External industrial shaft-end motors are heavy-duty, high-torque drive systems mounted directly to external wall brackets outside the roller barrel, engineered with rugged cast-aluminum housings and hand-chain manual overrides to deliver ultimate mechanical reliability in high-frequency manufacturing environments.
Motor Type | Typical Application | Mounting Position | Key Operational Advantage |
Tubular Motor | Residential & Light Commercial | Inside Barrel Tube | Completely hidden profile and quiet operation |
Central Motor | Retail Shops & Medium Commercial | Alongside Shaft | Cost-effective and balanced spring assistance |
Industrial Shaft-End | Heavy Warehouses & Factories | External Wall / Bracket | Maximum lifting torque and easy service access |
Maintenance Tip: Inspecting the motor's thermal cut-off switch and lubricating external reduction gears annually prevents overheating during peak summer months and extends the operational lifespan of the entire automated shutter system. |
Door size dictates the physical dimensions and wind load exposure of the shutter curtain, requiring precise measurement of opening width and travel height to calculate surface area and prevent structural deflection under pressure.
Door weight represents the cumulative mass of the curtain and slats, which must be converted into rotational torque based on roller radius, where heavier insulated steel requires significantly higher starting torque than aluminum, as outlined in our technical guide on How To Choose The Right Shutter Motor.
Frequency of use determines the thermal duty cycle of the motor windings, contrasting light daily residential cycles with heavy industrial loading dock operations that require advanced ventilation and thermal overload protection.
The installation environment dictates the necessary ingress protection and corrosion resistance to withstand dust, moisture, and corrosive coastal or chemical atmospheres through sealed housings and anti-corrosion treatments.
Power supply requirements specify whether the system operates on single-phase AC mains or high-efficiency three-phase industrial power to deliver smooth, continuous torque under heavy loads.
Manual operation needs guarantee compliance with safety codes by incorporating reliable hand-crank or chain-hoist override systems for safe emergency egress during unexpected power failures.
Noise requirements govern the acoustic profile of the drive assembly, prioritizing ultra-quiet operation through precision dampening rings and vibration-isolated brackets for architectural and hospitality venues.
Automation and safety integration ensure the control board supports smart sensors, remote access transmitters, and universal relay interfaces to connect seamlessly into building management networks.
Rolling shutter doors represent a vital convergence of structural engineering, automated motion control, and perimeter security for modern industrial and commercial facilities. By understanding the intricate mechanical interplay between the shutter curtain, barrel tube, guide tracks, and specialized drive units, facility managers and B2B buyers can optimize operational efficiency and minimize long-term maintenance costs. Selecting the correct motor and accessories requires meticulous calculation of curtain weight, environmental exposure, and daily duty cycles to guarantee decades of reliable, safe performance. Through expert engineering and adherence to rigorous international manufacturing standards, advanced automation solutions deliver uncompromised security, operational convenience, and structural longevity across global export markets.
