An automatic sliding gate mechanism operates through a synchronized electromechanical system: an electric gear motor converts rotational energy into linear motion using a rack and pinion driver, supported by roller tracks, controlled by a digital logic board, and protected by optical or pressure safety sensors.
How automatic sliding gates work
Key mechanical and electronic components
Benefits of automatic sliding gates
Selecting the right drive motor and controller
Maintenance tips and long-term operating guidelines
The foundational mechanism behind an automatic sliding gate relies on converting high-speed, low-torque rotational power into controlled, linear movement across a rigid track. When a signal is initiated via remote control, access terminal, or magnetic loop detector, the control board energizes the electric motor drive. The motor drives a hardened steel pinion gear, which meshes directly with a continuous gear rack mounted along the lower beam of the gate leaf. This gear-to-rack engagement converts motor rotation into steady horizontal translation along guided roller assemblies.
Modern high-performance perimeter gates integrate variable frequency conversion technology rather than simple single-speed AC induction drives. Frequency conversion allows the main control module to alter the input voltage frequency dynamically, managing motor output speed during different phases of movement. The drive system initiates a soft start, accelerating the heavy gate leaf without jerking the mounting hardware, shifts into a high-speed travel phase across the clear opening, and executes a soft stop as the gate approaches limit switches. This managed speed curve eliminates sudden kinetic shocks that wear out gear teeth, shear mounting bolts, and shorten mechanical service life.
To maintain perfect linear trajectory, the gate leaf is held upright by top guide rollers while moving along a ground track or suspended as a cantilevered structure. In cantilever configurations, the gate leaf floats above the driveway entrance, supported by internal roller carriages set inside a bottom guide track. As the rack moves over the rotating pinion, limit switches—either physical mechanical levers or contact-free magnetic sensors—send positional signals back to the main motherboard to cut power or trigger soft braking at precisely determined end positions.
Linear Drive Conversion: Converts motor torque directly into continuous horizontal motion via a precise gear rack interface.
Variable Frequency Speed Control: Utilizes variable frequency conversion to deliver smooth acceleration and decelerated stopping, protecting internal drive gears.
Position Monitoring: Employs magnetic limit sensors or optical encoders to ensure consistent stopping accuracy and prevent structural impact.
For heavy industrial applications requiring continuous operational capability, specialized variable frequency conversion sliding gate motors maintain thermal stability while managing high-mass leaf movement.

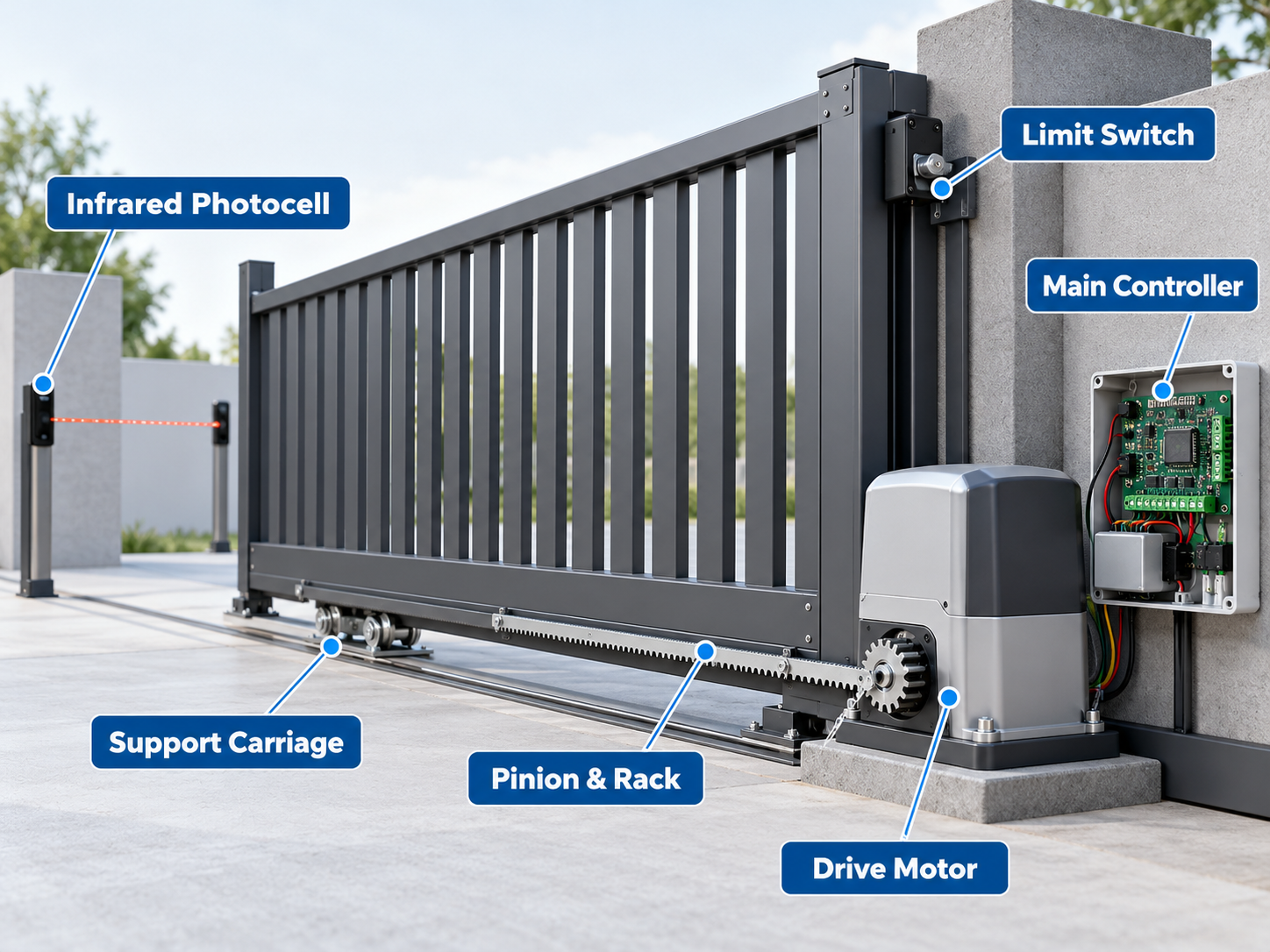

An automatic sliding gate system functions as an integrated assembly of mechanical load-bearing parts, power transmission hardware, and low-voltage control electronics. Each component must be engineered to withstand continuous cycle duty, environmental oxidation, and vibration. The electric drive unit houses the motor, gearbox, terminal block, and control interface within a weather-sealed enclosure rated to at least IP44 or IP54 ingress protection levels.
The mechanical drivetrain relies on precision gearing. Steel or reinforced nylon racks are bolted along the entire length of the gate leaf. Steel racks are selected for heavy-duty industrial installations exceeding 1,000 kg, while nylon-encapsulated steel racks offer noise reduction in quiet residential or office environments. The control board serves as the processing center, receiving inputs from safety photocells, push buttons, loop detectors, and radio receivers, while executing output commands to the motor drive and warning beacons.
Safety hardware components prevent accidents by interrupting gate movement upon detecting obstacles. Infrared active photocells project invisible beams across the gate pathway; breaking this beam immediately signals the control logic to stop and reverse travel. Additionally, physical safety edges (rubber bumpers with internal conductive contact strips or wireless pressure monitors) respond to physical contact, fulfilling safety standards such as EN 12453 for force limits.
Component | Material / Engineering Standard | Primary Operational Function |
Drive Motor | Variable Frequency AC / 24V DC Brushless | Generates primary mechanical torque and controls travel velocity |
Pinion & Rack Gear | Module 4 Hardened Steel / Reinforced Nylon | Converts rotational force into linear leaf movement |
Main Controller | Microprocessor board with inverter drive | Processes sensor signals, regulates speed profiles, manages logic |
Limit Switches | Sealed Magnetic Reed / Mechanical Lever | Defines absolute open and close limit positions |
Infrared Photocells | Anti-jamming active infrared sensors | Detects obstacles in line of sight to trigger automatic reversal |
Support Carriages | Heavy-duty steel with sealed bearings | Bears leaf weight and maintains alignment along ground track |
Drive Engine Assembly: Integrates thermal protection, oil-bath or heavy-grease gearing, and a manual release clutch for power outage scenarios.
Structural Hardware Sets: Ground tracks, guide rollers, and end-stops distribute static and dynamic loads across concrete foundations.
Safety & Sensor Network: Combines optical sensors, contact bumpers, and current-sensing overload limits to safeguard vehicles and pedestrians.
To gain a broader overview of structural layouts, track selections, and complete site preparation steps, explore the ultimate guide to sliding gates.
Automatic sliding gates offer distinct space-saving advantages over swing gate configurations. Because a sliding leaf travels parallel to adjacent fence lines, the entire driveway perimeter remains clear. Vehicles can pull up directly to the gate line without risking contact with an outward-opening panel. This layout maximizes usable parking area and simplifies access control along narrow commercial driveways or busy industrial loading bays.
From a structural and security perspective, sliding gates offer superior resistance against forced physical entry. A closed sliding gate leaf is locked into an end-catch pocket and held by the rigid rack-and-pinion drive system, making it nearly impossible to force open without specialized heavy equipment. Swing gate arms, by contrast, act as long levers that put severe stress on hinges and operator arms when subjected to wind loads or physical impacts.
Integration with modern security infrastructure is another key operational benefit. The low-voltage control interface inside modern gate openers supports connection with RFID card readers, license plate recognition (LPR) cameras, biometric keypads, and mobile app modules. Combined with variable speed drives, sliding gates can close rapidly after a vehicle passes, minimizing tailgate entry risks and maintaining continuous site perimeter security.
Space Optimization: Requires zero clearance inside or outside the driveway opening, maximizing vehicle storage capacity.
High Security & Wind Resistance: Solid engagement with ground tracks and end posts provides high resistance against physical intrusion and high wind forces.
Seamless Access Control Integration: Connects directly with industrial access monitoring, automated ticketing, and security management platforms.
When specifying systems for logistics parks or garage entrances with frequent access cycles, selecting an automatic heavy-duty sliding gate opener ensures long-term continuous duty without overheating internal motor windings.
Selecting an appropriate gate drive mechanism requires evaluating structural gate parameters, ambient operational conditions, and expected daily cycle frequencies. The total weight and length of the gate leaf dictate the minimum startup torque requirements. However, wind resistance factors on solid-panel or timber-clad gates can increase load forces during operation, requiring operators to select motor sizes 30% to 50% above the net static weight of the gate.
Motor drive topology plays a critical role in system performance. Variable frequency AC drives excel in high-tonnage industrial settings where heavy mass inertia must be controlled smoothly across hundreds of daily cycles. For applications requiring battery backup functionality during power failures, low-voltage DC motors with integrated encoders offer reliable soft start and stop controls while allowing continuous backup operation from standby batteries.
Environmental factors such as ambient temperature ranges, rain exposure, and coastal air salinity must dictate component selection. Motor housings should feature IP55 or higher ingress protection, cast aluminum lower bodies, and stainless-steel internal drive shafts. Electronics boards must be coated with conformal anti-corrosion lacquer to prevent circuit shorts caused by condensation, insects, or temperature fluctuations.
Selection Metric | Light Commercial | Heavy Industrial / Logistics |
Gate Leaf Mass Limit | 500 kg – 800 kg | 1,500 kg – 3,000+ kg |
Motor Drive Type | 24V DC Brushless or Single-Phase AC | Three-Phase AC with Variable Frequency Drive |
Daily Cycle Rating | 50 – 150 cycles/day | Continuous Duty (500+ cycles/day) |
Speed Adjustment | Fixed Dual Speed | Fully Programmable Variable Frequency |
Rack Material | Nylon with Inner Steel Core | Heavy-Duty Module 4 / Module 6 Steel |
Weight & Friction Calculation: Factor in leaf mass along with track friction, slope incline, and wind resistance coefficients.
Duty Cycle Capabilities: Distinguish between intermittent residential ratings and continuous commercial duty requirements to prevent thermal shutdown.
Protection Standards: Ensure enclosure ratings, mechanical release systems, and electronic circuit boards match local climate extremes.
Mechanical System Setup: Ensure that mechanical hard stops are installed at both physical ends of the travel track. Never rely solely on electronic limit switches to stop gate momentum. If an electronic limit fails or misreads position, a physical steel end stop prevents the gate leaf from running off its track or damaging nearby structures. |
Preventive maintenance keeps automatic sliding gate systems operating smoothly and prevents premature failure of electronic and mechanical parts. Ground tracks must be kept clear of gravel, mud, snow, and debris. Any obstruction along the track increases rolling resistance, forcing the motor to draw higher operating current and leading to premature gear wear or thermal tripping.
Systematic inspection of drive components should be conducted every six months. The drive pinion and gear rack interface must be checked for proper gear mesh clearance (typically maintaining a 1 mm to 2 mm clearance between pinion teeth and rack root to prevent the gate's entire weight from resting on the motor shaft). Lubricate steel racks with high-viscosity synthetic grease designed for outdoor exposure, while nylon racks should be kept clean without heavy grease that attracts abrasive dirt particles.
Electrical connections, safety sensors, and limit switches require regular technical verification. Terminal screws can loosen over time due to motor vibration, leading to voltage drops or erratic sensor readings. Clean optical photocell lenses using non-abrasive soft cloths, test the manual release clutch mechanism to guarantee smooth operation during emergency power failures, and verify that safety reversal systems react immediately when an obstacle interrupts gate travel.
Track Clearance Procedures: Clear dirt, small rocks, and debris from ground rails weekly to maintain low rolling friction.
Gear Mesh Calibration: Maintain a 1 mm to 2 mm vertical gap between pinion gear teeth and the rack to protect motor shaft bearings.
Safety System Verification: Test safety photocells, physical edge sensors, and manual clutch releases monthly to verify regulatory compliance.
In summary, an automatic sliding gate mechanism functions as a complete electromechanical network where gear ratio calculations, speed regulation, controller logic, and safety loops operate in tandem. By matching the drive motor's torque and speed control capabilities to the physical demands of the site—and adhering to scheduled mechanical alignment and electronic testing routines—facility managers can ensure safe, smooth, and dependable perimeter access control for years to come.
