The Ultimate Guide to Sliding Gates

A sliding gate is an automated or manual perimeter barrier operating horizontally along a track or cantilever system, engineered to deliver space-saving perimeter security, wind resistance, and structural longevity across high-frequency access points.

At a Glance

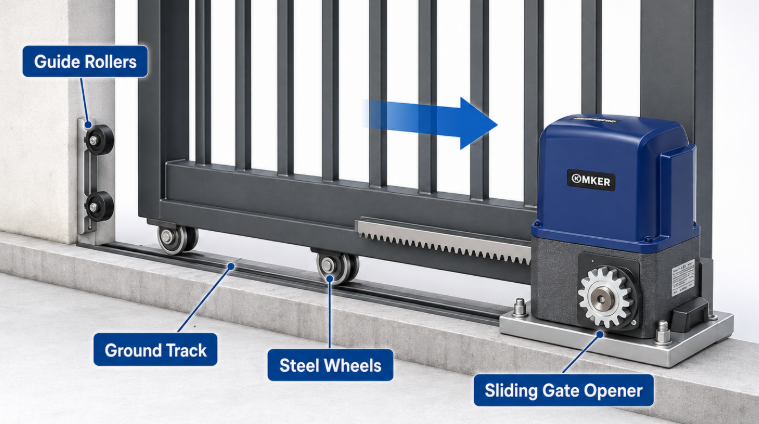

Sliding Gates with Ground Tracks

Sliding gates with ground tracks feature a concrete foundation embedded with a metal rail that directly supports the entire weight of the gate panel during movement.

Ground-tracked sliding gates transfer structural weight directly through steel wheels onto a ground-level track rail embedded along the concrete slab. Because vertical loads are continually supported along the entire drive path, the gate leaf requires less frame depth than cantilevered structures, making ground tracks ideal for ultra-wide vehicle openings or heavy steel-clad gates.

Proper operation depends heavily on level foundation concrete and exact track rail alignment. Any ground shifting or track deflection increases mechanical drag, demanding higher startup torque from the primary heavy duty sliding gate opener. Modern installations incorporate flush-mounted galvanized steel rails and side drainage channels to avoid speed bumps while preventing water and debris accumulation that could derail rolling wheels.

Top-mounted guide rollers maintain vertical alignment during heavy lateral wind loads, while precision sealed bearing wheels provide smooth, continuous rolling. When configured with appropriate drive motors, ground-tracked systems offer compact horizontal travel that requires only a short runback clearance equal to the driveway opening.

Cantilever Gates

Cantilever gates suspend over the driveway without touching the ground, supported entirely by internal roller carriages mounted in a counterbalance tail.

Cantilever gate systems eliminate ground track rails across the vehicle driveway, rendering them ideal for unpaved roads, steep grade inclines, heavy snow zones, or high-gravel industrial environments. Structural stability relies on an extended counterweight section (typically 30% to 50% of the opening width) anchored to a heavy concrete foundation pad outside the clear opening span.

Mechanical design must account for intense rotational torque and cantilevered moment forces. As the gate panel extends, tension pulls upward on the front roller carriage while compression forces push down on the rear carriage. Consequently, the main bottom beam requires a high section modulus, often utilizing structural steel channel or heavy extruded aluminum profiles to prevent structural deflection.

Because cantilever gates remain elevated, snow, mud, and road debris cannot impede horizontal movement. Furthermore, mounting the drive rack elevated on the gate leaf isolates the gear rack and sliding gate opener pinion gear from ground moisture and flooding, ensuring dependable operation across harsh industrial environments.

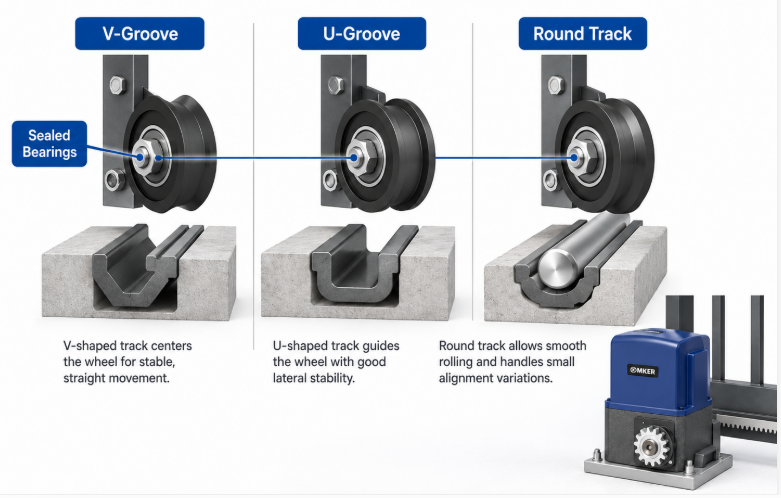

Track and Wheel Systems

Track and wheel systems form the central rolling interface of ground-guided gates, pairing precision-machined wheel profiles with specific track geometries.

Mechanical efficiency relies directly on the interface between rolling wheels and guide rails. Selecting the correct geometric profile impacts rolling resistance, side-load stability, noise generation, and debris clearance. The primary configurations utilized in perimeter engineering include V-groove, U-groove, and flat surface options.

V-groove wheels resting on inverted steel angle tracks deliver strong self-centering action and lateral resistance, though grit on the rail point can create temporary torque spikes for the drive motor. U-groove wheels riding on rounded top rails distribute vertical loads over a larger surface area, reducing structural wear and producing quieter travel suitable for commercial sites.

Machined carbon steel wheels with hardened surface treatments offer exceptional weight capacities without surface deformation. Dual ball-bearing hubs with synthetic seals exclude dust and water, preserving low rolling friction across demanding operational cycles.

Rolling Track Gates

Rolling track gates utilize surface-mounted track sections paired with lightweight structural frames for rapid installation and modular flexibility.

Rolling track gate setups provide a practical solution for temporary facilities, leased commercial grounds, or retrofit projects. Rather than requiring deep ground trenching, modular track rails bolt directly to existing reinforced concrete surfaces using heavy-duty mechanical anchors, cutting civil preparation time significantly.

Gate frames are typically fabricated from hollow structural steel tubing or aluminum profiles to minimize total dead weight. Lower structural mass reduces motor startup inertia, allowing the integration of efficient high performance sliding gate opener motors equipped with soft-start and soft-stop acceleration profiles to prevent system wear.

Ensuring surface levelness along the travel path is vital. Driveway slopes over 2% require mechanical braking hardware or motor operators with integrated electric brakes to ensure controlled movement during manual release or power failures.

Things to Consider When Designing a Sliding Gate

Designing an industrial sliding gate requires evaluating structural mechanics, wind dynamic loads, site conditions, duty frequency, and access control safety standards.

Successful implementation requires balancing structural principles with site dynamics. Evaluating technical specifications early prevents motor burnout, frame distortion, and compliance issues. Key design considerations include:

✅ Total Gate Weight and Frame Mass: Calculate the cumulative weight of the gate frame and infill panels to determine wheel bearing load ratings, structural beam sizing, and motor starting torque requirements.

✅ Wind Load Surface Area: Solid sheet or close-picket infills create high wind resistance during storms, creating dynamic lateral forces against guide rollers that increase motor resistance.

✅ Daily Operational Duty Cycles: Industrial logistics sites require continuous-duty 24V DC brushless or three-phase AC inverter motors, whereas lower-traffic commercial entrances operate effectively on standard intermittent-duty gearmotors.

✅ Civil Foundation Depth: Ensure concrete anchor pads for cantilever carriages or ground track grade beams extend below local soil frost line depths to prevent ground heave and rail misalignments.

✅ Gear Rack and Drive Pinion Selection: Match gate weight to appropriate gear rack materials, choosing steel-reinforced nylon for quiet light-duty operation or zinc-plated steel racks for heavy industrial gates, maintaining a 1mm to 2mm mesh clearance.

✅ Integrated Safety Systems: Standardize perimeter safety according to EN 12453 or UL 325 by installing optical safety photocells, wireless edge sensors along leading edges, manual release keys, and adjustable force-sensing obstruction detection within the electronic control unit.

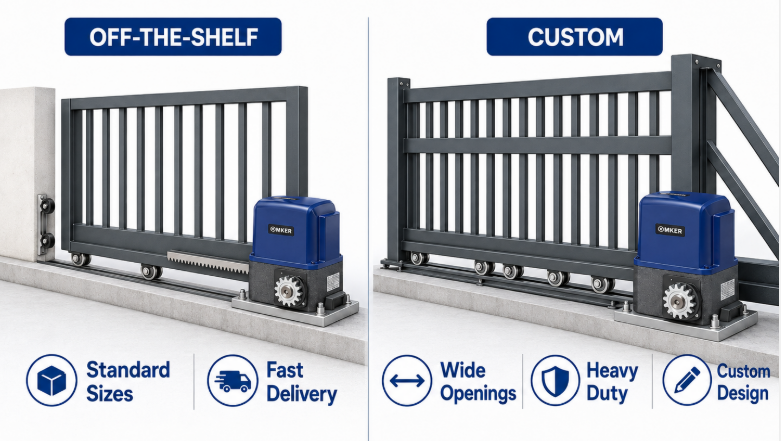

Custom or Off the Shelf?

Choosing between a prefabricated off-the-shelf sliding gate and a custom-engineered model depends on opening dimensions, structural demands, aesthetic preferences, and site installation schedules.

Off-the-shelf prefabricated sliding gates offer standardized, budget-conscious solutions for routine 4-meter to 6-meter driveway spans. Mass-produced from galvanized steel or aluminum tubing with powder-coated finishes, standard gate panels reduce procurement lead times and initial capital costs. However, they require civil site dimensions to fit pre-established manufacturer specifications and offer limited infill choices.

Custom-engineered sliding gates provide complete structural flexibility to accommodate wide driveway spans, severe wind conditions, slope inclines, or specialized security requirements. Custom fabrication allows engineers to specify heavy steel tubing, custom cantilever tails, anti-climb tops, and integrated mounting plates configured specifically for heavy-duty sliding gate opener maintenance protocols and access control devices.

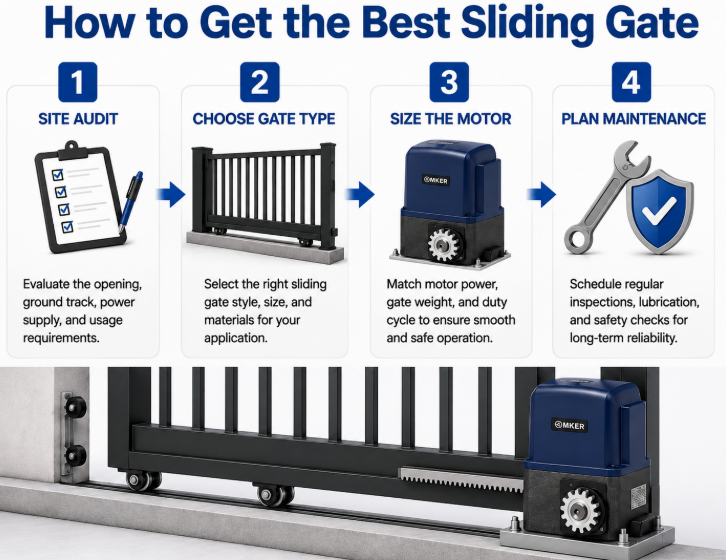

How to Get the Best Sliding Gate for Your Project

Securing an optimal sliding gate solution requires conducting thorough site surveys, verifying component quality, matching drive motor torque accurately, and establishing routine preventive maintenance.

To maximize system longevity, perform a comprehensive site audit measuring ground stability, slope gradients, wind conditions, and daily vehicle traffic. These parameters determine whether a ground-tracked or cantilever structure is appropriate, avoiding structural failures caused by underspecified components.

Prioritize build quality by requiring hot-dip galvanization (ISO 1461) on steel gate elements before powder coating. Inspect wheel bearing load ratings and gear shaft metallurgy. Always choose a drive motor rated 30% to 50% above calculated gate weight to handle dynamic wind pressure and cold-weather resistance.

Finally, establish a preventive service framework. Automated sliding gates undergo continuous physical wear. Frequently inspect rack-pinion engagement, test safety photocell response, clear track channels, and lubricate mechanical bearings to guarantee long-term operational performance, access safety compliance, and site security.
