You can determine if your gate opener has battery issues by observing symptoms such as significantly slowed gate movement, intermittent operational failures, audible clicking sounds from the control box without any subsequent movement, a completely unresponsive system despite active remote signals, and low voltage readings below 12 volts when tested with a digital multimeter under a functional load.
Navigating the complexities of automated gate troubleshooting requires a systematic approach to differentiate between mechanical resistance, remote control interference, and actual electrical power failure. Because a failing battery closely mimics the symptoms of a burnt-out motor or a misaligned track, property owners often misdiagnose the root cause, leading to unnecessary component replacements and prolonged downtime.
This comprehensive guide will walk you through the definitive signs of battery failure, step-by-step diagnostic techniques, environmental impacts, and proactive maintenance strategies. By mastering these troubleshooting protocols, you can ensure your automated entry system remains fully operational, efficient, and reliable throughout every season.
Section | Summary |
Signs Your Gate Opener Battery Has Issues | Explores the primary physical and mechanical indicators that signify a deteriorating or failing backup battery system. |
Troubleshooting Gate Opener Battery Issues | Provides a practical, step-by-step diagnostic guide utilizing technical tools to confirm electrical voltage drops. |
How Weather Affects Your Gate Opener Battery | Analyzes the impact of extreme thermal fluctuations on chemical energy storage and overall battery life cycles. |
When to Replace Your Gate Opener Battery | Identifies key operational milestones, physical warning signs, and age thresholds that dictate immediate battery replacement. |
Preventive Care for Your Gate Opener Battery | Outlines strategic maintenance routines, charging protocols, and system checks to maximize battery longevity. |

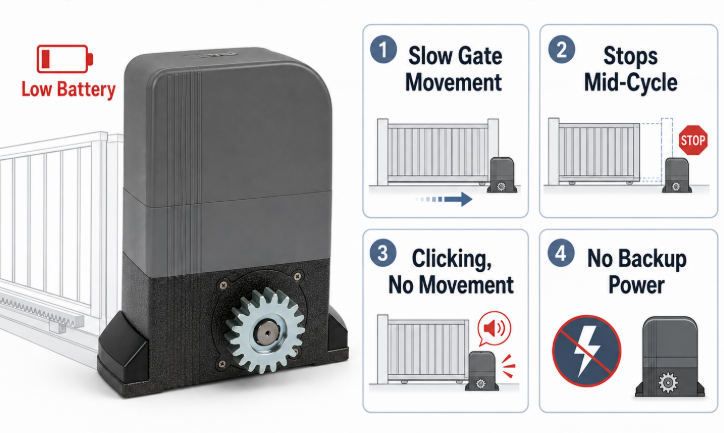

The clear signs that your automated gate power system is experiencing critical battery issues include drastically reduced operational speeds, failure to complete a full opening or closing cycle, loud clicking noises originating from the control board, and complete unresponsiveness during mains power outages.
When a backup battery starts to degrade, the most immediate manifestation is a noticeable drop in the speed of the gate panel. Heavy duty entrance systems require a massive surge of current to overcome initial inertia, especially when dealing with a heavy Sliding Gate Opener. If the battery cannot supply this peak amperage, the motor operates below its optimal torque capacity, causing the gate to drag sluggishly along its track or stop midway through its cycle. This symptom is particularly evident during consecutive operations when the weak cell lacks the time to recover its superficial charge between cycles.
Another prominent indicator is erratic or ghostly behavior from the automated system. You might notice the gate initiating movement only to reverse unexpectedly, or failing to respond to remote transmitters until you stand directly adjacent to the control box. This happens because the system voltage drops below the critical threshold required to power both the radio receiver and the motor simultaneously. In many instances, the control panel relays will click repeatedly as they attempt to engage the motor, but the depleted battery cannot deliver the necessary current to turn the gears, resulting in a locked system.
In industrial and commercial sectors, these failures can compromise logistics and security protocols. For instance, when configuring heavy duty Slide Gate Operators, an unstable power source can lead to frequent system errors, false obstruction detections, and accelerated wear on the internal drive gears. If your system completely shuts down during a local power outage despite having a dedicated backup supply installed, it is a definitive sign that the internal cells have entirely lost their capacity to hold an electrical charge.
To effectively troubleshoot automated gate battery issues, you must systematically isolate the power source by measuring the chemical cell voltage with a digital multimeter under both static and operational loads, while inspecting all physical wire connections for corrosion or signs of degradation.
The initial phase of diagnosing a suspected power failure involves a comprehensive visual inspection of the internal control box. You must power down the main alternating current supply to ensure you are testing the battery in isolation. Check the positive and negative terminals for any signs of white, powdery oxidation or rust, which creates high electrical resistance and prevents proper charging. Ensure that all wiring harnesses are firmly seated and that there are no frayed wires or loose spade connectors that could cause intermittent voltage drops during operation.
After completing the visual inspection, a digital multimeter is required to perform a precise voltage diagnostic test. Set your multimeter to the direct current voltage setting and place the probes onto the corresponding battery terminals. A fully charged, healthy twelve-volt lead-acid or lithium battery should register a static reading between 12.6 and 13.1 volts; if your initial reading falls below 12.0 volts, the cell is severely depleted. However, a static test can occasionally be deceptive, as a damaged battery can show a surface charge while resting but fail completely when subjected to structural stress.
To uncover hidden defects, you must perform a load test by tracking the voltage drop simultaneously as the motor activates. While keeping the multimeter leads securely connected to the battery terminals, trigger the entry system to open. If the voltage reading drops sharply below 10.5 volts during the initial cycle startup, it proves the internal plates are compromised and cannot sustain the necessary current distribution. If you encounter an completely unresponsive system after a power flux, you may need to learn how to reset a gate opener system to clear stored software faults before concluding that a physical replacement is mandatory.
Clean the battery posts thoroughly using a wire brush and a mixture of baking soda and water to neutralize acid buildup. Re-tighten all terminal nuts to ensure maximum surface contact, as minor vibrations from heavy machinery can loosen connections over time.
Measure the output voltage coming from the step-down transformer or solar regulator directly to the charging circuit. This ensures that the battery issue is not being caused by a faulty charging mechanism failing to deliver replenishment current to the cells.
Utilize a digital clamp meter to track the exact amperage drawn by the drive motor during operation. An unusually high current draw might indicate mechanical binding in the track rather than an internal battery defect.
Extreme weather conditions affect your automated gate battery by accelerating internal chemical degradation during intense summer heat and drastically reducing immediate current delivery capacity during freezing winter temperatures.
Temperature extremes represent one of the most significant external threats to the operational lifespan of backup energy storage cells. During the peak of summer, internal control boxes fabricated from metal or dark plastics can trap heat, driving internal temperatures well above safe operating limits. This extreme thermal exposure accelerates the internal chemical reactions within lead-acid batteries, leading to rapid water loss through evaporation and permanent plate sulfation. While the battery might appear to perform exceptionally well in the heat due to lowered internal resistance, this prolonged thermal stress drastically shortens its overall life expectancy.
Conversely, freezing winter temperatures present a completely different set of challenges for automated entry systems. Cold weather slows down the internal electro-chemical reactions required to release electrical energy, effectively cutting a battery's available capacity in half when temperatures drop below freezing. At the same time, cold weather causes lubricants within the gate tracks, hinges, and gearboxes to thicken, significantly increasing the mechanical resistance the motor must overcome. This combination of decreased electrical capacity and increased mechanical load frequently causes marginal batteries to fail completely on the first cold morning of the year.
For properties utilizing a solar-powered Sliding Gate Opener, seasonal weather shifts present an added layer of complexity. Shorter winter days, lower solar angles, and extended overcast periods reduce the daily charge time provided by solar arrays. If the system experiences high traffic during these periods, the battery will enter a state of chronic undercharging, causing deep discharge cycles that can permanently destroy standard lead-acid cells within a matter of weeks.
Utilize dual-walled, weather-sealed polycarbonate control cabinets to protect delicate electrical components and batteries from direct solar radiation and extreme ambient temperature fluctuations.
Deploy industrial-grade Slide Gate Operators engineered with intelligent low-temperature compensation charging circuits that automatically adjust voltage outputs based on ambient temperatures.
Select high-performance motors equipped with die-cast aluminum gearboxes, weather-resistant structural seals, and high-torque efficiency to minimize the electrical current drawn from the battery pack during cold weather startups.
You should replace your gate opener battery immediately when it exhibits physical swelling or leakage, is more than three years old, fails to maintain a charge above 12 volts after a full isolation cycle, or causes frequent control board system resets.
Recognizing the precise time to retire an old battery prevents structural damage to the surrounding electrical components within your control enclosure. Physical deformation, such as bulging, cracking, or swelling of the plastic casing, indicates severe overcharging or internal short circuits. If left unaddressed, these compromised cells can leak corrosive sulfuric acid or vent explosive gases, permanently ruining the main control board, radio receivers, and loop detectors, resulting in expensive repair bills.
Time is another critical benchmark for battery replacement, regardless of how often the gate is operated. Standard sealed lead-acid batteries utilized in access control systems possess a reliable operational lifespan of approximately three to five years under optimal conditions. Even if a battery has experienced minimal cycles, the natural degradation of internal lead plates and the drying out of electrolyte gels mean that its reliability drops significantly after the three-year mark. Planning a proactive replacement cycle is much more cost-effective than managing an emergency breakdown.
Furthermore, if your gate system exhibits frequent electronic errors or requires constant recalibration, a failing power source is often the culprit. When a battery drops voltage rapidly, it can cause the onboard microprocessor to experience mini-power drops, wiping out saved limits and memory settings. If you frequently find yourself searching for guides on how to reset a gate opener system memory due to erratic system behavior, it is highly probable that a weak battery is failing to sustain logic power, and a new cell must be installed immediately.
Implementing preventive care for your gate opener battery involves maintaining pristine terminal connections, balancing operating cycles with adequate charging periods, executing routine mechanical track maintenance, and upgrading to premium, energy-efficient automation components.
The longevity of an automated gate power supply is directly tied to the consistency of its maintenance regime. Regularly applying a dedicated terminal protection spray or a thin layer of dielectric grease to clean battery terminals blocks moisture and oxygen, effectively preventing the development of high-resistance corrosion. Additionally, verify that your charging system is delivering the correct float voltage. For a standard twelve-volt configuration, the charging circuit should consistently supply between 13.5 and 13.8 volts to keep the cells topped off without boiling the electrolyte.
Mechanical maintenance of the physical gate structure also plays an underappreciated role in preserving battery health. If a gate track is warped, filled with debris, or has worn-out rollers, the drive motor must work significantly harder to move the load. This increased mechanical resistance forces the system to draw excessive current from the battery during operation, accelerating internal plate wear. Keeping your tracks clear, checking alignments, and lubricating hinges ensures the motor operates efficiently and preserves battery life.
Finally, investing in high-quality hardware components from the start dramatically reduces the electrical strain placed on your backup power systems. When sourcing equipment, look for advanced technical specifications designed to maximize system performance while minimizing power consumption.
+---------------------------------------------------------+
| PREVENTIVE MAINTENANCE CHECKLIST |
+--------------------------+------------------------------+
| Task Description | Recommended Frequency |
+--------------------------+------------------------------+
| Terminal Corrosion Check | Every 6 Months |
| Voltage Load Diagnostic | Annually |
| Track & Roller Clearance | Every 3 Months |
| Charging Voltage Test | Annually |
+--------------------------+------------------------------+
Modern control systems utilize energy-saving standby modes that drop idle current consumption down to minimal levels, preserving critical battery reserves for actual operation cycles.
Upgrading to a high-performance Sliding Gate Opener featuring a brushless direct current motor delivers superior power output with significantly lower energy usage compared to traditional alternating current configurations.
Advanced operators feature soft start and stop technology, which electronically ramps motor speed smoothly at the beginning and end of each cycle. This minimizes the initial current spike drawn from the battery and reduces mechanical stress on the entire gate assembly.
Industrial systems built with oil-immersed gearboxes, heavy-duty steel drive pinions, and IP44 weatherproofing seals ensure reliable operation under heavy loads while minimizing friction and energy loss.
