Barrier gates are motorized perimeter control devices engineered to manage vehicle passage, enforce site security, streamline traffic flow, and integrate with modern access control infrastructure for commercial, industrial, and residential environments.
Section | Summary |
Understanding Gate Barriers | A deep dive into the engineering principles, core components, motor mechanics, and operational dynamics of modern automatic barrier gates. |
Functionalities and Benefits of Gate Barriers | An analytical evaluation of how barrier gate systems improve security, streamline high-volume traffic flow, enable automated access control, and adapt to diverse site constraints. |
Applications Across Industries | Practical technical breakdown of barrier gate deployments across residential, commercial, industrial, and public sector environments. |
Considerations for Installing Gate Barriers | Engineering guidelines covering site power assessment, system integration, mechanical operational requirements, and preventive maintenance protocols. |
A barrier gate is a heavy-duty electromechanical or hydraulic physical perimeter system designed to regulate vehicle access using a pivoted boom arm that raises and lowers dynamically based on authorized control signals.

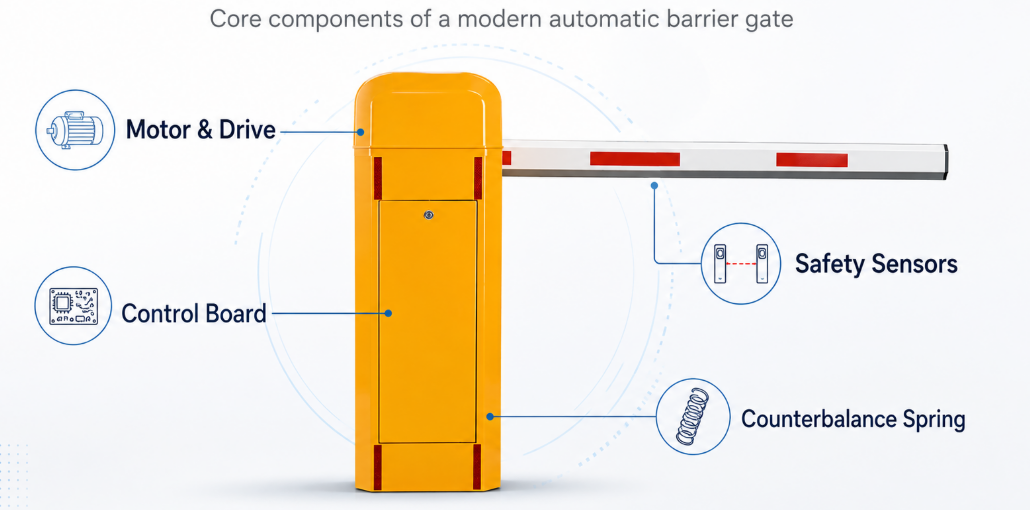

To understand how these safety barriers function at an industrial level, engineers must examine the combination of drive units, spring balance systems, control motherboards, and safety sensing arrays that allow a standard gate barrier to operate continuously across hundreds of thousands of cycles without mechanical fatigue.
Modern barrier gate units rely on high-precision drive mechanisms designed to convert electric power into smooth, controlled angular motion of the boom arm. High-efficiency brushless DC motors operate at lower temperatures, offer superior torque at low speeds, and allow precise acceleration and deceleration ramping to prevent boom arm bounce and mechanical stress. The mechanical weight of the barrier arm is counterbalanced by heavy-duty tension springs to reduce energy consumption and extend gearbox lifespan, while advanced microcontrollers process inputs from access readers, loop detectors, and safety sensors to deliver precise variable speed control. When evaluating overall architecture, engineers frequently consult technical guides detailing how automatic barrier gates operate under continuous duty conditions.
Feature Parameter | Standard Commercial Grade | Heavy-Duty Industrial Grade | High-Speed Toll/Parking Grade |
Operating Voltage | AC 220V/110V (50/60Hz) | AC 220V or DC 24V Brushless | AC 220V or DC 24V Brushless |
Motor Power Rating | 90W to 150W | 150W to 250W | 120W to 200W |
Opening/Closing Speed | 3.0s to 6.0s | 4.0s to 6.0s | 0.9s to 2.5s |
Max Boom Arm Length | 4.0 meters to 6.0 meters | 6.0 meters to 8.0 meters | 3.0 meters to 4.0 meters |
Boom Arm Profile | Octagonal or Round Aluminum | Heavy Octagonal / Telescopic | Lightweight Elliptical / Carbon |
Duty Cycle | 80% (Medium Frequency) | 100% Continuous Duty | 100% Continuous Duty |
Housing IP Rating | IP54 / IP55 Outdoor Class | IP65 Heavy Weatherproof | IP65 Heavy Weatherproof |
Operating Temperature | -20°C to +55°C | -35°C to +65°C | -30°C to +65°C |
The barrier gate cabinet acts as the primary defense against outdoor environmental degradation, mechanical impact, and intentional tampering. High-grade barrier gates utilize cold-rolled steel plates with a minimum thickness of 2.0 mm, treated through multi-stage anti-corrosion processes including phosphating pre-treatment to remove surface oxides, electrostatic powder coating with thermosetting exterior-grade polyester powder, and durable IP54 to IP65 sealant gaskets to keep internal electronics dry and dust-free. To gain a broader perspective on chassis design options and structural configurations, developers often explore industry literature addressing what defines a barrier gate system in commercial installations.
Maintenance Tip: To maintain precise mechanical balance and prevent excessive drive motor load, spring balance must be verified every six months or whenever the boom arm length is modified. Disconnect the drive power, release the gearbox manual clutch, and position the boom arm manually at a 45-degree angle. If calibrated correctly, the arm should remain stationary in this position. If the arm drifts upward, decrease spring tension; if it drops downward, increase spring tension until static balance is restored. |
Implementing motorized barrier gates provides facility operators with precise traffic regulation, robust perimeter security, automated access authorization, and real-time vehicular auditing.
Understanding these operational benefits requires analyzing the balance between physical protection and traffic throughput capacity. Modern barrier systems deliver significant operational advantages across core functional security and traffic areas.
Physical vehicle entry restriction forms the outer perimeter barrier of any secure facility by forcing vehicles to stop and authenticate before entry to eliminate tailgate intrusion risks and unauthorized access. High-grade barrier housings establish clear physical boundary points that deter unauthorized drivers, while forced stopping protocols give security personnel or license plate recognition (LPR) cameras sufficient time to inspect and record vehicle credentials.
Modern barrier gates function as active peripheral devices within centralized building management and site security networks by interfacing directly with RFID card readers, long-range UHF tags, biometric terminals, mobile QR code scanners, and LPR platforms. Facility managers can set operational schedules via centralized software, locking barriers down during non-business hours while permitting authorized maintenance vehicles through pre-programmed credentials, while dual loop detectors prevent single credentials from being shared to enter multiple vehicles simultaneously.
In high-density commercial sites, dual-barrier setups establish clear entry and exit channels to prevent head-on conflicts, while fast-acting high-speed boom barriers opening in under 1.5 seconds maintain organized lane discipline without creating traffic backups on public roads. Connecting barrier gates to parking counter displays automatically closes entry lanes when capacity is reached, eliminating unproductive internal site cruising. To see how high-throughput barriers optimize commercial sites, facility managers often implement an automatic parking system straight boom barrier engineered specifically for continuous vehicle processing.
Automating access control minimizes manual guard intervention, drastically lowers ongoing site management costs, and speeds up throughput through hands-free vehicle passage utilizing UHF windshield tags or automated plate recognition. Modern IP-enabled barrier control boards allow off-site management teams to monitor gate status, remotely raise boom arms for emergency vehicles, and view real-time entry logs, allowing commercial parks to operate secure entry lanes 24/7 without maintaining round-the-clock security staffing.

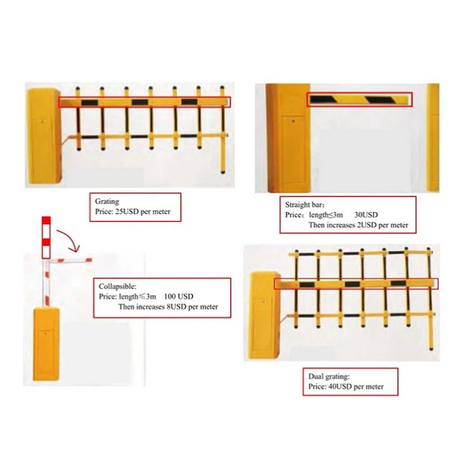

Site layout limitations require flexible barrier gate configurations tailored to overhead clearances, arm lengths, and environmental conditions. In underground parking garages with low ceilings, 90-degree or 180-degree folding boom arm mechanisms allow full arm movement without contacting overhead beams, while optional lightweight aluminum fence grates expand automatically to prevent clearance under the arm. Furthermore, integrated RGB LED light strips along the boom arm offer high visibility at night, switching dynamically from red during downward travel to green when the lane is safe to traverse.
Technical Insight: In recent years, market data indicates a significant shift among European commercial and municipal buyers toward 24V Brushless DC motor configurations rather than traditional AC induction motors. This preference stems from strict European safety standards (EN 12453 / EN 12445) regarding dynamic impact forces. BLDC motors feature low internal rotational inertia, allowing instant dynamic braking and current-reversal upon detecting an obstacle. Furthermore, 24V DC architectures allow direct integration of solar panels and battery backup systems, ensuring continuous operation during power grid outages without requiring bulky line-interactive UPS units. |

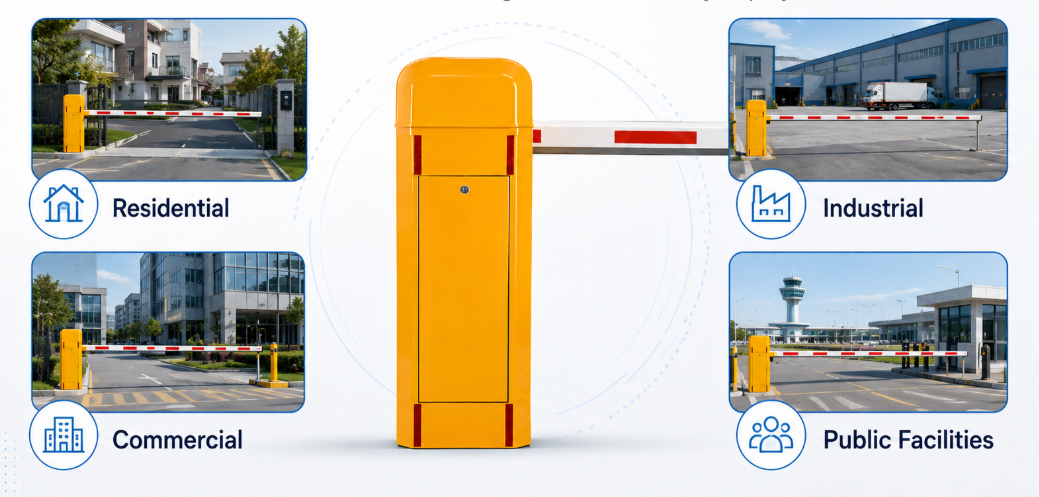

Automatic barrier gates are versatile perimeter solutions tailored to meet the distinct security, speed, and access control demands of residential, commercial, industrial, and municipal environments.
Different industries present unique operational demands, requiring tailored barrier configurations, safety sensor combinations, and access reader integrations.
Residential properties prioritize quiet motor operation operating smoothly below 50 dB so late-night arrivals do not disturb residents, alongside dual-lane entry layouts that separate registered residents using long-range UHF tags from visitors who must validate credentials at an intercom. Rapid closing speeds combined with dual safety loop sensing effectively prevent tailgating vehicles from following authorized residents without risking arm impact on passing cars.
Commercial office parks and multi-tenant centers manage heavy traffic bursts during peak hours by utilizing fast-acting barrier gates capable of 1.5-second to 2.5-second operation to prevent traffic queuing from spilling onto urban roadways. Commercial facilities frequently link barrier control boards directly to ticketing machines, payment kiosks, and automated mobile payment networks, allowing access management software to track individual company parking quotas and restrict entry once assigned spaces are full. To review fully integrated commercial parking configurations, engineers frequently evaluate complete parking lot management automatic barrier gate setups that consolidate ticketing, credential validation, and loop safety logic into a unified platform.
Manufacturing plants, logistics hubs, and freight terminals require heavy-duty barrier gate systems with extended boom arm spans ranging from 6.0 to 8.0 meters to accommodate semi-trucks, oversized machinery, and double-trailer freight combinations safely. These logistics hubs demand 100% duty cycle motors rated for millions of cycles without thermal shutdown, while tying directly into truck weigh stations and security checkpoints to hold vehicles until weight data and cargo manifests are verified.
Municipal centers, airports, military installations, and public transit terminals demand strict security protocols, often pairing standard barrier gates with automatic road blockers or bollards to create double-tier physical access checkpoints. Access systems connect with emergency service radio receivers or acoustic siren detectors to automatically lock barrier arms open during security alerts, while public sector installations log every gate operation with credential IDs, time-stamps, vehicle photos, and direction of travel for forensic reporting.
Successful barrier gate installation requires thorough site assessment, robust access system integration, clear operational speed planning, and structured preventive maintenance.
Failing to properly plan site infrastructure often results in frequent vehicle damage claims, nuisance sensor trips, motor overheating, or premature mechanical failure.
Before selecting equipment or pouring concrete pads, engineers must perform a complete spatial and physical site inspection to measure total lane width and verify vertical clearance for overhead light fixtures, canopy structures, and ceiling beams. Barrier gate cabinets require a level, reinforced concrete foundation raised at least 100 mm to 150 mm above road level to prevent water ingress during heavy rains, while separate electrical conduits must be installed for high-voltage power lines and low-voltage signal lines to prevent electromagnetic interference.
A barrier gate is only as smart as the control system behind it, requiring seamless electrical integration where modern barrier motherboards accept standard open, close, and stop dry contact signals compatible with virtually any third-party access controller. Vehicle loop detectors must be cut cleanly into the asphalt using a rectangular pattern with 45-degree corner chamfers following manufacturer inductance recommendations, and paired with secondary photoelectric safety beams mounted across the drive lane to detect high-clearance flatbed trailers or non-metallic obstacles.
Matching system performance specifications to actual traffic profiles prevents mechanical strain, requiring high-throughput parking lanes to use fast 1.5s to 3.0s opening times while long industrial spans use 5.0s to 6.0s smooth travel speeds to swing heavier boom profiles safely. Every installation must feature an easily accessible manual clutch release key or auto-drop boom modules for power outages, as well as internal thermostatic heating elements or forced air ventilation fans for site installations exposed to extreme cold or hot outdoor environments.
Preventive maintenance schedules preserve system safety and prevent costly downtime through monthly visual checks of boom arms, safety loops, and photoelectric sensors, alongside quarterly mechanical servicing to lubricate drive linkages, verify gear oil levels, check drive belt tension, and tighten electrical blocks. Additionally, biannual balance and safety audits must be performed to re-calibrate counterbalance springs, test motor obstacle reversing sensitivity, and inspect anchor bolts for stress or rust corrosion.
Proactive Operating Tip: When installing dual barrier gate lanes in close proximity (e.g., adjacent entry and exit channels), ground loop wires can interfere with one another if operated on identical frequencies, causing ghost triggers or missed vehicle detections. To prevent loop cross-talk, ensure that loop detector modules feature selectable frequency channels. Set the entry loop module to 'High Frequency' and the adjacent exit loop module to 'Low Frequency.' Additionally, maintain at least 1.0 meter of separation between the physical loop cuts in adjacent lanes. |
Selecting and deploying the right automatic gate barrier system requires balancing mechanical durability, motor technology, fast operation speed, and intelligent access integration. Whether you are managing a high-volume commercial office park, a secure industrial logistics depot, or a residential community, selecting modern BLDC-driven barrier gates ensures long-term operational efficiency, reduced maintenance overhead, and maximum perimeter protection. By adhering to rigorous site assessment procedures, implementing dual-layer safety sensor arrays, and following structured preventive maintenance schedules, facility engineers and security directors can maintain seamless, reliable vehicle access control for years to come.
