In the realm of vehicle access control, barrier gates are among the most visible and essential components. Found at toll booths, parking lots, gated communities, and industrial facilities, these devices control and regulate the flow of vehicles efficiently and securely. But how exactly do barrier gates work?
Understanding the mechanics and technologies behind barrier gates can help property managers, security personnel, and infrastructure planners select, maintain, and optimize these systems for maximum performance and safety.
Barrier gates, sometimes called boom barriers, are not just mechanical arms blocking vehicle access; they are integral parts of sophisticated access control systems. Their role is vital in controlling vehicle entry and exit points, improving site security, and managing traffic flow.
By understanding how barrier gates work, users can better appreciate the technology’s capabilities and limitations, making informed decisions about installation, upgrades, and maintenance. This knowledge also helps in troubleshooting operational issues and ensuring safety compliance.
At the most basic level, a barrier gate consists of a horizontal arm (the barrier or boom) that moves to block or allow vehicles to pass through an access point. However, this simple description belies the complexity of the components that enable smooth, reliable operation.
Boom Arm: Typically made from lightweight but durable materials such as aluminum or reinforced plastic, the boom arm spans across the access lane to physically block vehicles.
Motor: The motor powers the movement of the boom arm, allowing it to lift or swing open when access is granted.
Gearbox: Connected to the motor, the gearbox regulates the torque and speed to ensure smooth and controlled arm movement.
Control System: The “brain” of the barrier gate, it processes signals from access devices like RFID readers, remote controls, or sensors to operate the gate accordingly.
Sensors and Safety Devices: These include obstacle detection sensors, anti-crushing mechanisms, and limit switches to prevent accidents or damage.
Housing: The protective casing that houses all mechanical and electrical components, designed to withstand environmental factors.

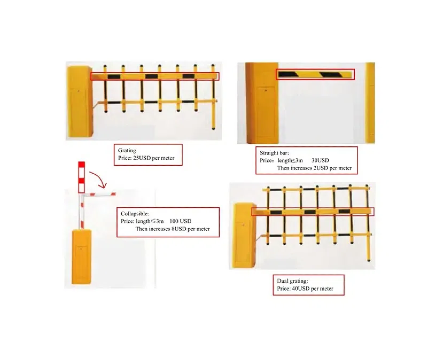

Barrier gates come in several mechanical designs, each suited for specific environments and needs.

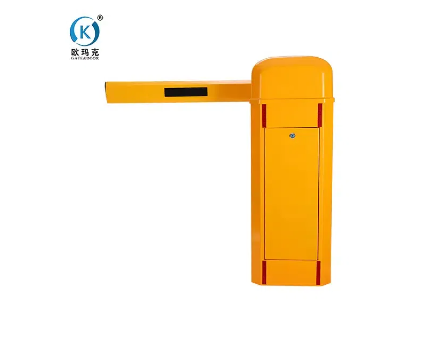

The most common type, the straight arm moves vertically to block passage. It’s suitable for most standard vehicle lanes and offers reliable operation with boom arms ranging from 3 to 6 meters.
Designed for locations with limited vertical clearance (e.g., underground garages), the folding arm bends in the middle as it lifts, reducing required headroom.
Swing arms rotate horizontally to the side, often used in narrow or specialized entryways. Vertical lift gates raise straight up and are sometimes used in premium residential or aesthetic-sensitive sites.
Each mechanism offers specific advantages in terms of space, speed, and security, making it important to choose the right type for the intended application.
With the rise of IoT and smart building technologies, barrier gates have evolved beyond simple mechanical devices to become integrated components of intelligent access control systems.
Barrier gates can connect with building management systems, allowing centralized control, remote monitoring, and data collection. This integration enables facility managers to oversee multiple gates across locations from a single dashboard.
Modern barrier gates feature self-diagnostic tools that monitor motor health, sensor status, and control system performance. Alerts can be sent proactively to maintenance teams to prevent failures.
Advanced control units allow variable arm movement speeds depending on traffic conditions, improving throughput and reducing energy consumption. Some systems also offer solar power options for environmentally conscious installations.
The mechanical operation of a barrier gate is centered on converting electrical energy into controlled mechanical motion that raises or lowers the boom arm to allow or restrict vehicle access efficiently and safely.
How the Motor Drives the Boom Arm Movement
When the barrier gate receives an authorized signal—such as from an access control device or remote control—the electric motor is triggered to start. This motor turns the gearbox, which is responsible for converting the motor’s high-speed rotation into slower, high-torque movement necessary to raise or lower the boom arm smoothly. The motor’s operation is precisely controlled to ensure the boom arm moves at a consistent speed, avoiding sudden jerks or stops that could damage the mechanism or create safety hazards.
The Role of Gearbox and Counterweights or Springs
The gearbox is a crucial component that governs the torque and speed of the boom arm’s movement. It reduces the motor’s speed to a manageable level and increases torque, providing the power needed to lift the arm, especially for longer or heavier arms. Many barrier gates also use counterweights or spring systems to balance the weight of the boom arm. This balancing reduces the load on the motor and gearbox, enabling the system to operate more efficiently and reducing wear and tear. Consequently, these mechanisms contribute to longer system lifespan and more reliable operation.
Manual vs. Automatic Lifting Mechanisms
In certain low-traffic environments or temporary setups, barrier gates can be operated manually. In such cases, an attendant physically raises or lowers the boom arm as needed. However, modern barrier gates overwhelmingly use automatic lifting mechanisms driven by motors and managed by electronic control systems. Automatic gates provide faster response times, improve safety by reducing human error, and ensure consistent operation without the need for constant supervision. This makes them ideal for busy commercial, industrial, and residential access points where reliable and efficient vehicle control is required.
The operation of a barrier gate heavily depends on the control system, which receives and processes commands to open or close the barrier based on various input methods.
Barrier gates integrate with multiple types of access control technologies:
Remote Controls: Allow authorized users to open the gate via radio signals.
RFID Readers: Vehicles equipped with RFID tags can automatically trigger gate opening upon approach.
License Plate Recognition (LPR): Cameras identify authorized license plates and signal the gate to open.
Ticket Dispensers: Common in parking lots, where the vehicle obtains a ticket at entry, and payment completion triggers exit.
Modern barrier gates are equipped with sensors to detect obstacles beneath or near the boom arm, ensuring the gate does not close on vehicles or pedestrians. Anti-crushing sensors and emergency stop functions further enhance safety.
Understanding how barrier gates work is essential for anyone responsible for managing access control in commercial, industrial, or residential settings. From the motor and gearbox that move the boom arm to the sophisticated control systems that integrate with modern security technologies, every component plays a crucial role in providing safe, efficient, and reliable operation.
By appreciating the inner workings of barrier gates, facility managers can ensure proper maintenance, avoid costly downtime, and select systems tailored to their specific needs.
