Views: 0 Author: Site Editor Publish Time: 2026-10-27 Origin: Site
Fundamental Access Control Components & Workflows: The technical interaction between input credentials, controller logic, and heavy-duty gate opener mechanical drive units.
Commercial Gate Hardware Categories: Detailed operational and hardware breakdowns across Keypad, RFID, Cellular, Intercom, and Vehicle Detection systems.
Wired vs. Wireless Deployment Frameworks: Real-world installation criteria, infrastructure requirements, and cabling vs. wireless protocol trade-offs.
Strategic Benefits & Use Cases: Quantifiable ROI, physical security gains, and specific configuration requirements for residential communities, campuses, and commercial offices.
System Integrations & Maintenance Protocols: How to unify video surveillance, automatic vehicle recognition, and safety loop sensors with primary gate controllers while establishing long-term preventive maintenance routines.
A commercial gate access control system is an automated perimeter security network designed to regulate high-volume vehicle traffic by pairing an access controller—the decision-making "brain"—with a heavy-duty commercial gate opener acting as the physical "muscle." Upon validating credentials like PINs, RF signals, or license plates, the controller triggers the motorized drive to automate gate movement while integrated ground loops, infrared photocells, and safety edges prevent vehicle damage, reverse on obstructions, and alert security to unauthorized forced entry.
Hardware Component | Primary Function | Standard Technical Specifications |
Gate Drive Operator | Provides mechanical linear or rotational force to open and close gate leaves. | 110V/220V AC or 24V DC brush/brushless motors, 500kg to 2000kg load rating, 100% continuous duty cycle. |
Main Access Controller | Processes credential data, verifies access privileges, and outputs relay commands. | Multi-protocol support (Wiegand 26/34, OSDP, RS-485), TCP/IP onboard network interface, non-volatile event memory. |
Credential Input Terminal | Captures user identity via physical cards, codes, smartphone signals, or biological traits. | IP65/IP68 weather-rated enclosures, backlit rubber/touch interfaces, operating temperature -30°C to +70°C. |
Vehicle Loop Detectors | Detects vehicle mass to trigger gate opening, reverse movement, or hold-open loops. | Dual-channel frequency isolation, sensitivity adjustment ranges, standard 11-pin DIN rail configuration. |
Infrared Safety Photocells | Projects an active light beam across the drive lane to prevent gate closure on obstacles. | 10m to 30m detection range, anti-glare circuit technology, NC/NO relay outputs, IP66 waterproof rating. |
Mechanical Rack & Pinion | Converts rotary motor movement into linear horizontal travel for sliding gate structures. | Module 4 (M4) heavy-duty steel or reinforced nylon gear rack with anti-rust surface plating. |
|
Keypad entry systems provide robust, PIN-based access control for commercial driveways and perimeter gates. Built in heavy-duty stainless steel enclosures with IP65 weather resistance, they support multiple programmable codes for employees, delivery vendors, and emergency personnel. Modern commercial keypads also feature anti-peeping technology to protect access codes in high-traffic environments.
RFID systems enable high-speed vehicle throughput using proximity cards or long-range UHF transponders. For flexible credential management, integrating a multi-frequency unit like the Radio Frequency Remote Control with bluetooth allows facilities to support encrypted RF remotes and smartphone credentials within a single interface, ensuring seamless access for all authorized drivers.
Cellular controllers use 4G LTE or 5G networks to manage gates remotely via cloud software without expensive physical cabling. Administrators can monitor logs and update permissions in real time, while users enjoy convenient dial-to-open and app-based entry.
Intercom systems combine physical security with real-time audio and video verification. Utilizing IP network connections, modern video intercoms stream high-definition visuals and crystal-clear audio to guard shacks, desktop terminals, or mobile devices for visitor screening.
Vehicle detection relies on ground-embedded induction loops that sense vehicle mass to trigger entry, hold open pathways, and ensure safety reversal. These systems prevent premature gate closure, protecting both vehicles and property during continuous daily operation.
ALPR cameras with optical zoom and IR illumination connect via Gigabit Ethernet to local NVRs, integrating high-reliability commercial gates with a Vehicle-Mounted System to Achieve Automatic Door Opening for seamless wired control.
In-Vehicle Handheld Remote Controls: Multi-channel encrypted RF remotes allow drivers to activate entrance gates from comfortable distances. Deploying an ergonomically designed transponder like our Radio Frequency Remote Control with bluetooth gives operators long-range performance alongside local smartphone Bluetooth control.
Smartphone App Access Control: Utilizing Wi-Fi and cellular relay hardware allows property admins and staff to open gates, grant guest access passes, and review gate logs directly from their smartphones. Upgrading the drive system with our specialized Remote Door Opening Via Wi-Fi Module on Mobile Phone turns any standard gate operator into an intelligent, cloud-managed gateway.
Automated gate systems streamline perimeter management by logging digital audit trails, centralizing real-time credential control, and eliminating human oversight errors for round-the-clock security.
Heavy-duty gate openers paired with dual vehicle loop sensors and SOS emergency detectors maintain continuous physical perimeter protection while preventing tailgating and granting rapid emergency access.
Irreversible gearmotors create a formidable physical barrier that deters intrusion, protects high-value assets, and triggers instant alarms if forced entry is attempted.
Smart gate controls enhance site efficiency and driver comfort by distributing instant digital guest credentials, speeding up vehicle verification, and providing hands-free access in any weather condition.

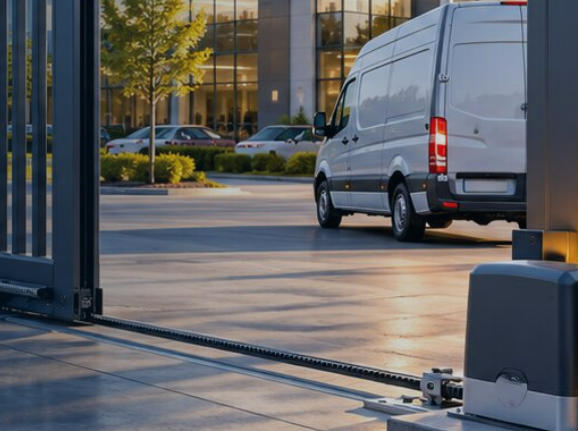

Commercial facilities prioritize high-capacity vehicle throughput, rigorous audit tracking, and multi-tenant visitor management. Equipping entrance lanes with a high-duty commercial gate opener paired with Automated License Plate Recognition (ALPR) cameras and Bluetooth access terminals allows registered staff to enter seamlessly during peak rush hours, while temporary corporate vendors utilize pre-issued dynamic QR codes or mobile passcodes.

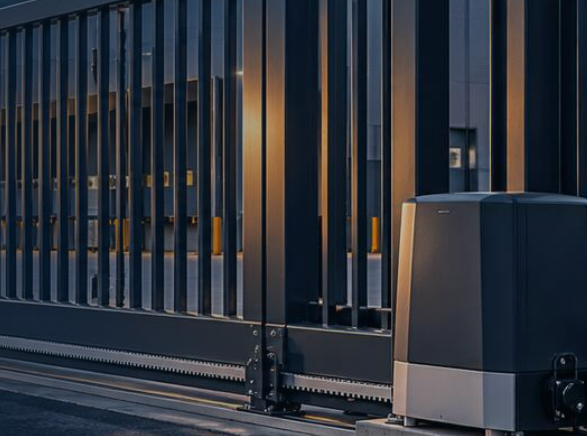

Heavy industrial parks, logistics hubs, and manufacturing yards require robust perimeter security capable of handling heavy machinery, freight trucks, and continuous 24/7 operating cycles. Deploying an industrial gate opener ensures high-torque mechanical performance for large-span cantilever sliding or heavy steel swing gates. These systems integrate with long-range RFID transponders and dual magnetic ground loops to ensure wide-wheelbase trucks pass safely without causing gate closures or traffic bottlenecks.

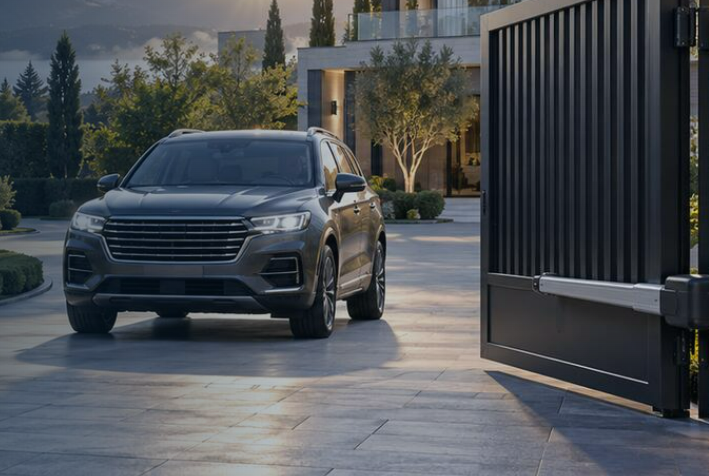

Gated HOA communities, apartment complexes, and private estates focus on resident convenience, safety protection, and simplified guest access. Utilizing a reliable residential gate opener integrated with wireless numeric keypads, smartphone app controllers, and photo-eye safety sensors provides effortless hands-free entry for homeowners while shielding children, pets, and property from closing leaves.
Integrating gate automation with an enterprise Video Management System (VMS) transforms passive mechanical barriers into active security nodes. High-definition PTZ (Pan-Tilt-Zoom) and fixed cameras are strategically positioned to cover vehicle approach lanes, driver-side credential pillars, and rear license plates.
When a credential is presented or an unauthorized entry attempt occurs, the access controller triggers an I/O alarm output to the VMS. The camera system automatically tags the video recording with the user ID, gate name, and access status. If an obstacle sensor is tripped or a gate is forced open, the VMS highlights the live feed on security control monitors and initiates automatic camera tracking along the perimeter fence.
To protect vehicles and pedestrians while securing property boundaries, commercial gate systems utilize an integrated web of safety and alert devices wired directly into the main gate operator board:
Dual-Array Infrared Photocells: Positioned across inner and outer gate travel zones to form an invisible optical barrier; breaking either beam halts or reverses gate motion instantly.
Pneumatic and Electric Safety Edges: Mounted along the leading rubber edge of sliding gates or swing leaf tips; physical contact compresses an internal conductive strip, triggering immediate motor reversal in under 100 milliseconds.
Visual Strobes and Audible Sounders: High-visibility flashing beacons and warning buzzers activate 2 to 3 seconds before mechanical gate movement begins, alerting nearby pedestrians and drivers to keep clear of the driveway path.
Perimeter Intrusion Alarm Linkage: Connecting gate limit status relays to the facility's main burglar alarm panel ensures that if a gate leaf is held open beyond a programmed timeout (e.g., 60 seconds), a localized warning buzzer sounds and an alert is sent to security personnel.
A successful commercial gate deployment requires careful structural, electrical, and control planning long before hardware installation begins. Use the following practical engineering checklist to ensure site readiness, operational efficiency, and long-term performance:
[ ] Verify gate leaf structural integrity, wheel bearing health, track levelness, and hinge load capacities.
[ ] Calculate total gate leaf weight, overall length, and wind resistance factors to match proper operator wattage.
[ ] Install rigid concrete pad foundations below local frost lines for gate operators and gooseneck pedestals.
[ ] Run separate underground PVC conduits for high-voltage AC power lines and low-voltage data cables.
[ ] Select drive format (Heavy-Duty Sliding Rack vs. Hydraulic/Electro-Mechanical Swing Arm) based on site driveway geometry.
[ ] Ensure the selected commercial gate opener features continuous duty cycle ratings (24V DC or 3-phase AC VFD) matching peak hourly traffic volumes.
[ ] Verify manual release mechanisms are fully functional, key-accessible, and understood by facility personnel in case of power loss.
[ ] Select appropriate rack pitch (e.g., Module 4 steel racks) or heavy-duty swing brackets matching structural gate material.
[ ] Install dual safety photo-eyes across both approach and travel zones of the gate path.
[ ] Saw-cut, lay, and seal ground induction loops for exit, safety reverse, and shadow sensing functions.
[ ] Connect safety edge sensors to leading gate boundaries and test physical obstacle sensitivity.
[ ] Wire and configure access terminals (RFID, Keypads, Cellular, Intercom) using shielded cabling to eliminate signal noise.
[ ] Test emergency vehicle overrides (SOS acoustic sensors or Knox key switches) with local emergency services.
[ ] Routine Track & Roller Inspection: Inspect, clean, and remove debris from lower sliding tracks and clear dirt from safety photocell lenses monthly.
[ ] Mechanical Lubrication Routine: Apply high-grade water-resistant lithium grease to gate hinges, rack pinions, internal gear teeth, and bearing points quarterly.
[ ] Loop Detector & Sensor Calibration: Inspect loop sealant integrity and re-test safety photo-eye auto-reversal sensitivity bi-annually.
[ ] Power & Battery System Health Check: Test backup battery charge levels, inspect electrical terminal tightness, and clean drive cabinet interiors annually to prevent insect or moisture intrusion.
