A comprehensive barrier gate parking system integrates mechanical physical barriers, automated control hardware, safety detection loops, and digital data management to streamline vehicle access, enhance security, and optimize traffic flow across commercial and municipal facilities.
What you'll learn:✅ The core mechanical differences and operational trade-offs among boom barriers, rising bollards, sliding/swing gates, and fold-down units. ✅ How to structure the three critical access layers: physical credentials, field control protocols, and data backend engines. ✅ A structured 5-factor engineering framework for selecting the ideal hardware for any site footprint and traffic volume. ✅ Global safety mandates (UL 325 and EN 12453) and advanced force-detection principles that protect vehicles and pedestrians. ✅ The operational trade-offs between physical physical barrier systems and camera-based ticketless enforcement models. |
Selecting the right parking barrier requires matching physical hardware with vehicle throughput, footprints, and security needs to prevent maintenance issues and traffic congestion. Engineers must evaluate duty cycles, speeds, and impact resistance to balance commercial efficiency with security integrity.

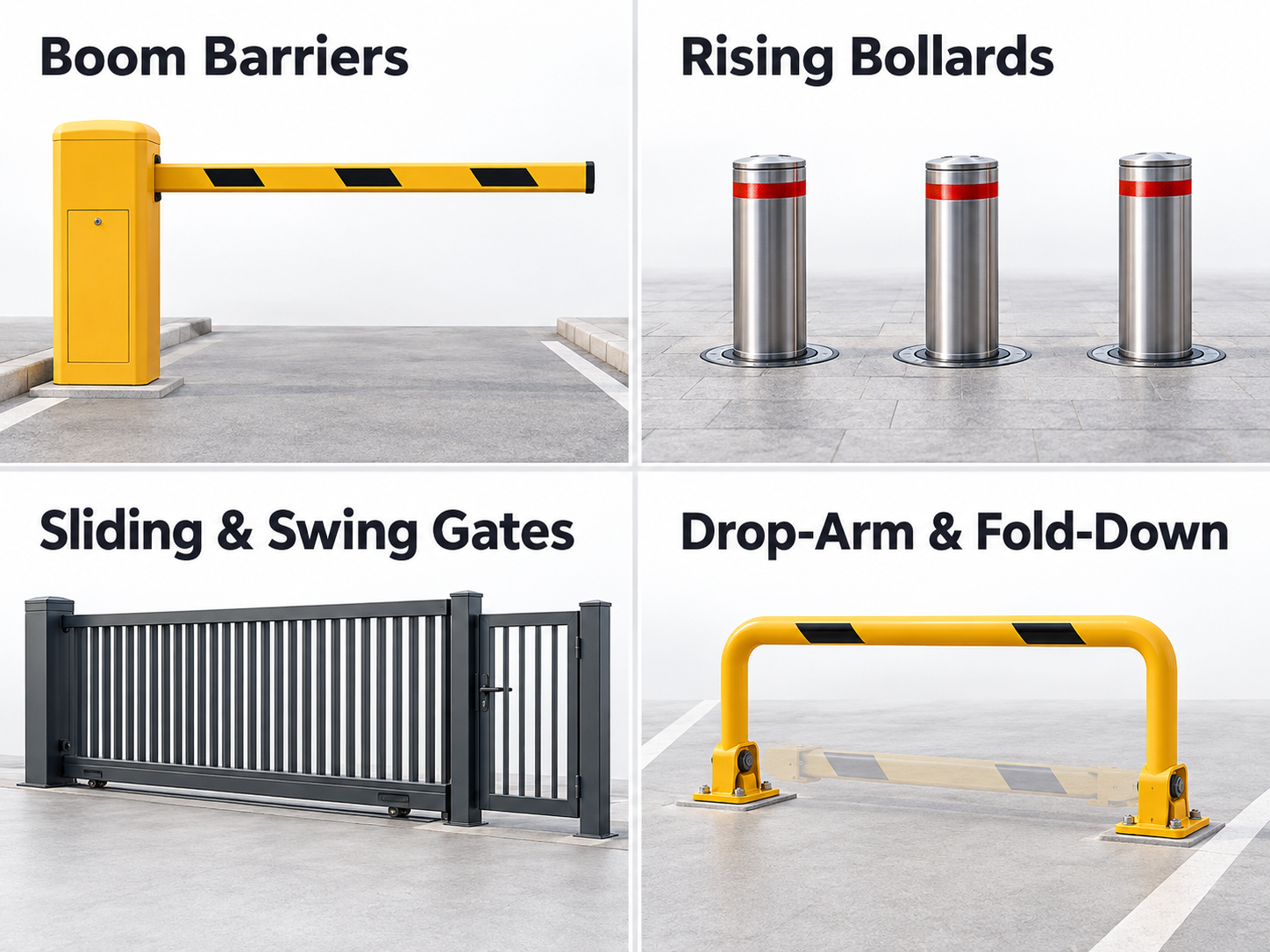

Boom barriers represent the global standard for high-throughput vehicle entry management due to their rapid action and reliable mechanics. These systems utilize a high-torque motor connected to a mechanical gearbox and balancing spring mechanism to raise and lower a lightweight aluminum or composite arm. Modern designs incorporate brushless DC motors and variable-frequency drives, allowing rapid acceleration and smooth deceleration without mechanical bounce. For a deeper breakdown of internal drive assemblies and housing protection ratings, read our analysis on understanding barrier gate fundamentals. Because the moving arm is intentionally designed to be lightweight, these systems excel at continuous, high-volume operations where rapid cycle speed is critical to preventing traffic queuing.
Rising bollards consist of heavy-gauge steel cylinders installed flush with the roadway surface that extend vertically via hydraulic, pneumatic, or electromechanical actuators. When retracted, bollards remain flush with the pavement, preserving natural pedestrian movement and architectural aesthetics while preventing vehicle entry when extended. Higher-grade bollards feature crash ratings tested to withstand heavy vehicular impacts, making them ideal for high-security applications, government structures, and urban pedestrian zones. However, their installation requires deep excavation, subterranean drainage systems, and regular maintenance to remove dirt, water, and debris from the foundation casing.
Sliding and swing gates provide full perimeter protection by establishing a continuous physical barrier that prevents both vehicular entry and unauthorized pedestrian access. Sliding gates move horizontally along a track or cantilevered beam system, making them ideal for sites with constrained entry depth but ample lateral space. Swing gates rotate inward or outward on heavy-duty hinges, requiring a wide cleared turning arc free of vehicle obstacles. While these gates offer superior visual deterrence and structural strength, their slower operational speeds make them better suited for perimeter security at industrial facilities, logistics hubs, and residential compounds rather than high-traffic commercial parking garages.
Drop-arm and individual fold-down barriers are specialized access management tools designed primarily to secure individual parking spaces or low-frequency lane control points. Surface-mounted fold-down posts are raised and locked manually or via small battery-powered remote-controlled actuators to block unauthorized cars from parking in private or reserved spaces. Industrial drop-arm systems feature a heavy rigid beam resting horizontally on dual posts, providing a robust visual and physical boundary for restricted facility roads. These units offer an affordable solution for lower-volume access control where automated high-speed cycling is unnecessary.
Barrier Type | Opening Speed (Seconds) | Security Level | Daily Duty Cycle Capacity | Ideal Use Case |
|---|---|---|---|---|
Boom Barriers (Gate Arms) | 1.0 to 6.0 | Low to Medium | High (Up to 10,000+ cycles/day) | Commercial garages, toll booths, residential entry |
Rising Bollards | 3.0 to 8.0 | High to Anti-Ram | Moderate (Up to 2,000 cycles/day) | Urban plazas, high-security zones, perimeter defense |
Sliding and Swing Gates | 8.0 to 20.0 | High | Moderate to Low (Up to 500 cycles/day) | Industrial depots, logistics parks, gated compounds |
Drop-Arm and Fold-Down | 2.0 to 5.0 | Medium to High | High (Up to 5,000 cycles/day) | Underground garages with low ceiling clearance |
The physical barrier gate is merely the muscle of a parking management system; the intelligence resides within the underlying electronic architecture. Without a robust control, credential, and data ecosystem, even the most durable barrier becomes an operational bottleneck. Modern access control systems depend on seamless interoperability between physical triggers, processing logic, and centralized databases.
To understand how hardware components unite with access control systems, you can explore our detailed technical guide on what is a barrier gate to learn more about internal motor mechanics and housing standards.
Integrating physical hardware with intelligent backend infrastructure ensures that validation occurs in milliseconds. A complete access ecosystem relies on three interconnected layers:
❗️ RFID long-range tags mounted on vehicle windshields allow hands-free entry from 3 to 10 meters away.
❗️ License plate recognition cameras capture high-resolution images to match vehicle registration plates against active access databases.
❗️ QR codes and mobile Bluetooth/NFC credentials generated on smartphones enable visitor and temporary driver access.
❗️ Physical proximity smart cards or keyfobs require drivers to stop and swipe at an entry pedestal terminal.
✅️ Wiegand protocols transmit credential data from readers to local controllers, though legacy setups lack data encryption.
✅️ OSDP (Open Supervised Device Protocol) provides secure, bi-directional, encrypted RS-485 communication between readers and controllers.
✅️ Relay I/O interfaces trigger dry contact signals to trigger barrier motor control boards upon successful driver authorization.
✅️ Ethernet TCP/IP networks enable real-time device status monitoring and immediate controller configuration changes.
Centralized databases record timestamped entry and exit logs for real-time capacity and occupancy tracking.
Payment engine integration automates fee calculation based on precise duration billing schedules.
Automated alert triggers notify site management of security breaches, tailgating events, or mechanical system errors.
Analytics dashboards compile peak usage patterns to help management optimize site traffic management and lane allocation.
Selecting an optimal vehicle barrier requires evaluating five core engineering parameters: throughput capacity, opening speed, site footprint, environmental exposure, and total cost of ownership. Sites with high peak traffic volume require fast opening cycles to prevent urban road queuing, while high-security facilities prioritize physical resistance over speed.
High-throughput commercial hubs require an automatic barrier gate for efficient traffic control to balance rapid arm speeds with durable brushless motor performance.
Evaluating total cost of ownership involves looking beyond initial hardware purchasing costs to include foundation civil works, electrical wiring, preventative maintenance, and power consumption over a ten-year lifecycle.

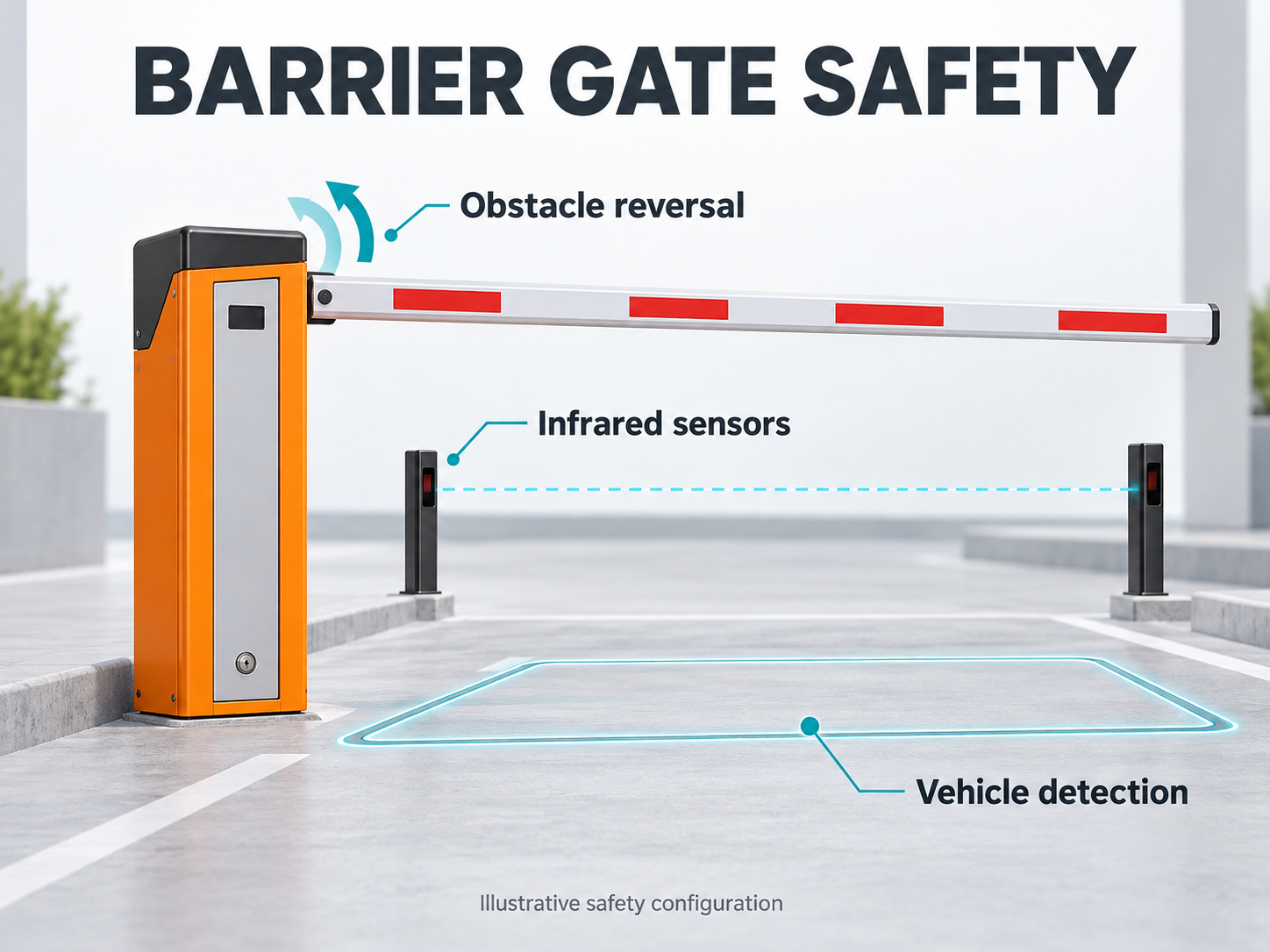

Safety protocols for automated barrier gates are strictly defined by international engineering standards to prevent vehicle damage and personal injury. Modern safety logic relies on redundant, multi-layered sensor networks to detect vehicle presence, pedestrian obstruction, and mechanical resistance during the arm lowering cycle.
Ensuring compliance with international safety codes requires integrating primary physical presence detection with secondary non-contact monitoring systems to guarantee reliable anti-crushing safety performance.
✅️ Primary ground inductive loops detect metal vehicle bodies beneath the barrier arm, preventing closing commands while a car is present.
✅️ Photoelectric safety sensors project infrared light beams across the lane, immediately triggering arm reversal if the beam is broken.
✅️ Integrated pressure-sensitive rubber edges along the bottom of the barrier arm reverse movement instantly upon physical contact.
✅️ Variable frequency motor control limits motor torque, automatically stopping and reversing the arm if mechanical resistance is encountered.
In the event of total power loss, critical equipment failure, or emergency evacuation orders, barrier gate operators must feature mechanical fail-safe overrides. Manual key releases allow staff to disengage the internal drive gearbox and manually lift the barrier arm. Furthermore, fire alarm integration inputs must automatically force the barrier arm into a open position upon emergency alarm activation to facilitate rapid site evacuation.
Determining whether to install a physical barrier gate or transition to a barrierless access management system depends on your facility's risk model, enforcement capabilities, and operational priorities. Physical barriers provide absolute access control, physically preventing unauthorized entry and ensuring revenue compliance at parking garage gates.
Conversely, barrierless access models rely entirely on Automatic Number Plate Recognition (ANPR) cameras paired with automated digital billing and post-use violation ticketing. While barrierless systems minimize physical infrastructure costs and eliminate traffic bottleneck points at entry lanes, they require strong legal frameworks and automated fine recovery processes to manage unauthorized parking.
A parking barrier system is an automated electromechanical or hydraulic physical restriction device installed at vehicle ingress and egress points. It regulates vehicular access, coordinates with validation systems, and maintains site security.
A car park barrier operates by receiving an electrical pulse from an access control device, such as an RFID reader or loop detector. This signal triggers an internal electric motor or hydraulic pump to rotate a drive gearbox, lifting the physical barrier arm to permit passage.
The primary types include boom barriers (gate arms), rising bollards, sliding/swing gates, and drop-arm/articulated fold-down barriers, each designed for specific throughput, security, and space constraints.
Yes, modern parking barriers seamlessly integrate with ANPR systems. The ANPR camera captures and reads the vehicle license plate, checks it against authorized database records, and sends a relay open command to the barrier controller.
Yes, barrierless parking systems use high-speed ANPR cameras to log vehicle entry and exit timestamps without physical obstructions, processing billing automatically via digital apps or mailing violation notices to unregistered vehicles.
