To program an automatic gate opener, access the logic control board, hold the LEARN or CODE button until the indicator LED illuminates, press the designated button on your remote transmitter within 10 seconds to broadcast the RF signal, and confirm pairing when the control board LED flashes or emits an audible beep sequence.
How to program automatic gate opener
Understanding different types of gate openers
Essential tools and preparation
Step-by-step guide to programming an automatic gate opener
How to program a gate remote with another remote
How to program sliding gate remotes
Programming an automatic gate opener requires pairing the remote control transmitter with the main control board RF receiver by triggering the board's LEARN mode and transmitting the matching code.
The fundamental architecture of modern gate opener electronics relies on microcontrollers capable of storing unique radio transmitter identifiers in non-volatile EEPROM memory. When learning how to program automatic gate opener systems, technicians must understand that the process establishes a secure handshake between the radio frequency receiver operating at 315MHz, 433.92MHz, or 868MHz and the handheld remote transmitter. This handshake utilizes either fixed DIP switch codes or advanced rolling-code algorithms such as Keeloq to prevent signal duplication or code grabbing by unauthorized parties.
During the programming sequence, the receiver board transitions into a passive listening state upon receiving an input signal from the physical programming button. Once in this state, the receiver captures the unique serial number, button code, and rolling-code seed sent by the remote control. The onboard micro-controller indexes this data within its internal memory table. Once registered, subsequent signal transmissions from the remote control trigger the control board logic to activate relay outputs, energizing the motor drive circuit to actuate the gate opener mechanism.
When selecting hardware for commercial or residential installations, improper programming or signal interference can lead to intermittent gate operation. If your system exhibits erratic signal reception or loses stored memory codes, you may need to consult our technical guide on How To Reset Ghost Control Gate Opener to clear corrupted system registers and re-establish clean memory pairings.
Why do we design our logic boards with dual microcontroller isolation? From a manufacturing standpoint, separating the RF receiving logic from the primary motor driving H-bridge prevents high-voltage motor spikes from corrupting the non-volatile memory chips during rapid switching operations, which is the primary feature European engineering clients demand in heavy industrial environments.
Component Parameter | Specification Technical Detail |
Operating Frequency | 315 MHz / 433.92 MHz / 868 MHz ISM Bands |
Encryption Type | Fixed DIP Switch Code / 64-bit Rolling Code |
Storage Capacity | 25 to 500 Transmitters Model Dependent |
Programming Window | 10 to 30 Seconds Active Timeout |
Receiver Sensitivity | -105 dBm to -112 dBm |
Control Board Maintenance: Always inspect the main circuit board enclosure for moisture ingress, insect infestation, or dust build-up prior to programming. Clean electronic components using non-conductive electrical contact cleaner and ensure all wiring terminal screws are tightened to prevent voltage drops across control circuits. |

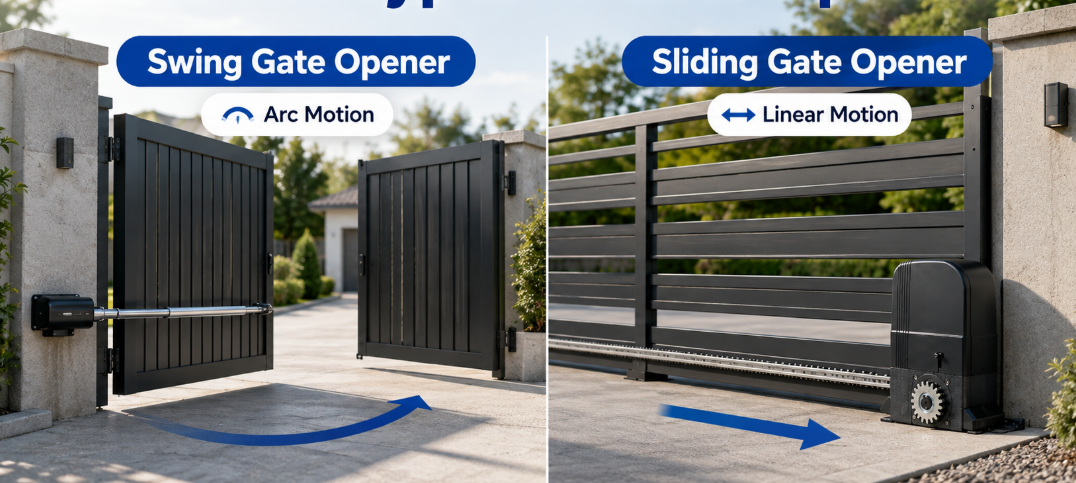

Different gate opener types utilize specialized mechanical drive units and control board logic tailored specifically to swing or sliding structural movements.
Selecting and programming a gate opener requires a thorough understanding of the underlying mechanical kinetics and electrical load profiles. Swing and sliding gates exert radically different physical forces on drive operators. Swing systems must overcome wind resistance and hinge friction across an arc, while sliding systems contend with linear inertia, track friction, and rack-and-pinion torque demands. Consequently, control board firmware is tailored specifically for each mechanical layout to manage current limiting, obstacle detection thresholds, and acceleration/deceleration soft start/stop curves.
From an engineering perspective, modern industrial clients prioritize operational duty cycles, thermal dissipation, and motor controller efficiency. Brushless DC (BLDC) and 24V DC systems have largely surpassed traditional AC motors due to their superior speed regulation, lower thermal generation during high-frequency cycles, and seamless battery backup integration. Selecting the correct gate opener system directly impacts the complexity of electronic programming and routine maintenance schedules over the lifespan of the perimeter installation.
Before commencing any electronic programming sequence, contractors must verify that the underlying mechanical structure is sound. For detailed structural alignment, post mounting, and rack installation procedures, refer to our comprehensive master guide on How To Install A Gate Opener to eliminate physical binding prior to running electronic setup routines.
Our engineering team specifically optimizes control boards to differentiate between inertia loads and true physical obstructions. European clients particularly value our adjustable stall force algorithms, which dynamically increase startup current for heavy swing leaves while maintaining ultra-sensitive obstacle reversal during the final closing phase.
Feature Parameter | Swing Gate Opener | Sliding Gate Opener |
Mechanical Movement | Rotational Arc (90° to 110°) | Linear Horizontal Motion |
Typical Drive Mechanism | Linear Actuator / Articulated Arm | Pinion Gear & Tooth Rack |
Space Requirement | Wide Driveway Clearance Arc | Parallel Fence Line Clearance |
Wind Load Sensitivity | High (Acts as a Solid Sail) | Low (Side Pressure Managed by Guides) |
Limit Switch Type | Internal Hall Effect / Mechanical Stops | Magnetic Switch / Optical Encoder |
Swing Gate Opener mechanisms employ linear screw actuators or articulated arms to pull or push gate leaves along a circular pivot axis.
Sliding Gate Opener systems use a high-torque motor fitted with a drive pinion gear that engages a continuous gear rack along the bottom rail of the gate.
Proper preparation requires gathering electrical testing tools, safety equipment, and checking mechanical gate balance before initiating electronic programming.
Before initiating any remote transmitter or control board programming, field technicians must conduct a rigorous pre-commissioning inspection. Attempting to program electronic travel limits or remote controls on a gate that suffers from mechanical binding, unlevel track rails, or worn hinges will result in false obstacle detection triggers, over-current fault trips, and premature motor failure. The electrical power supply must be stable, with supply voltages matching the control panel specifications (110V/220V AC input or 24V DC battery circuit).
In addition to physical tools, verifying the RF environment is essential. High ambient electromagnetic noise from nearby power lines, industrial machinery, or wireless communication towers can severely degrade remote control pairing range. A clean, systematic preparation routine prevents code transfer failures and ensures long-term operational reliability for the end user.
In commercial project tenders, installers routinely cite power supply stability as their top concern. To address this, our control systems incorporate wide-voltage input regulation circuits capable of functioning reliably between 180V and 260V AC, ensuring that field voltage fluctuations do not erase learned remote memory settings.
Tool Item | Application Purpose | Essential Specification |
Digital Multimeter | AC/DC Voltage & Continuity Testing | CAT III 600V Rated |
Insulated Screwdriver Set | Terminal Block Adjustment & Cover Access | VDE 1000V Certified |
Small Flathead Stylus | DIP Switch & Reset Button Manipulation | Non-Conductive Tip |
Clean Rag & Brush | Debris & Dust Removal from Board | Anti-Static Synthetic |
Spare Remote Batteries | Transmitter Power Verification | CR2032 / 12V 27A Fresh Cells |
Safety Considerations: Always disconnect main AC power and battery backups when touching live terminal blocks. Ensure all safety photocells and edge sensors are wired correctly before placing the controller into auto-programming modes to prevent unintended gate movement during setup. |

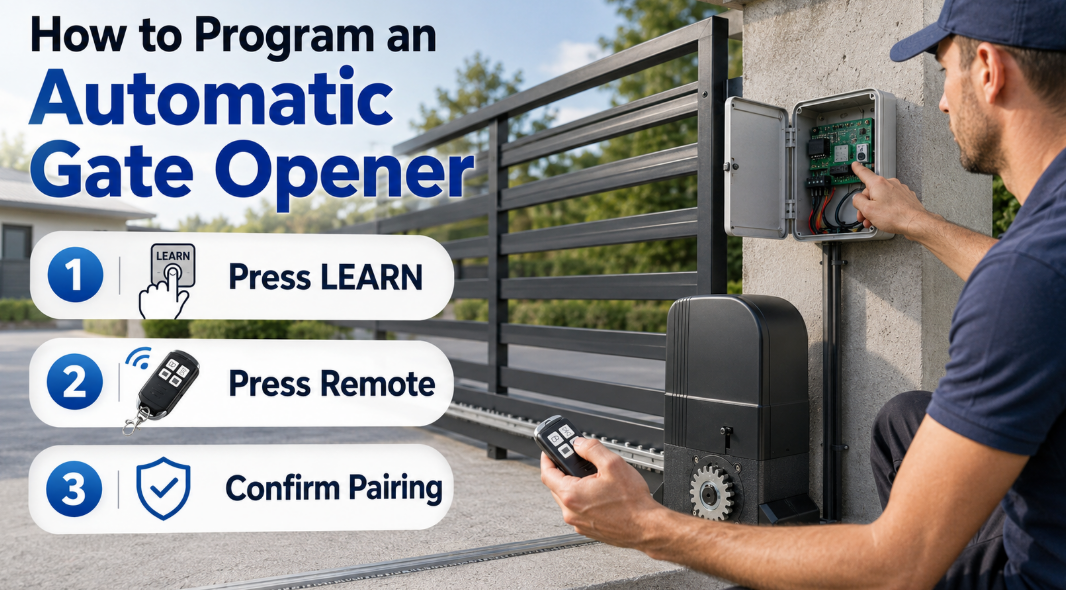

Programming an automatic gate opener involves entering pairing mode on the logic board, sending a signal from the remote control, and verifying successful pairing.
Programming a modern gate opener control board is a structured electronic procedure designed to register transmitter credentials into the receiver's memory buffer. While control board layouts vary across manufacturers, the underlying firmware logic follows a standardized sequence. Technicians must execute these steps deliberately, paying strict attention to status LEDs and acoustic sound indicators emitted by the logic board.
European commercial clients frequently request high-security rolling-code integration combined with dual-button multi-channel configuration—allowing one button to activate a single-leaf pedestrian opening and another to trigger full vehicle passage. Understanding each step of the programming sequence guarantees flawless execution on site.
To ensure long-term durability in high-traffic applications, professional installers often choose commercial-grade drive solutions such as our Sliding Gate Opener Door Motor Garage Door Opener, which features integrated MCU control boards, digital LED display menus, and anti-interference receiver modules built specifically for heavy duty usage.
Why do commercial clients prefer digital LED programming menus over manual DIP switches? Digital interfaces eliminate mechanical contact degradation caused by ambient humidity and salt spray in coastal installations, allowing precise microsecond adjustments to soft-start timing and obstacle sensitivity.
Step Phase | Action Required | Expected Board Response |
1. Locate Button | Access control box; identify LEARN / CODE button | Board status LED in standby mode |
2. Enter Mode | Press and hold LEARN button for 2-3 seconds | Indicator LED turns solid red/blue |
3. Program Remote | Press desired button on remote transmitter | LED blinks rapidly / Beeper sounds |
4. Confirm | Wait for board response signal | LED flashes 3 times or solidifies |
5. Test Remote | Step back 5 meters and press programmed button | Gate relay clicks; motor starts |
6. Exit Mode | Wait 10 seconds or press LEARN button once | LED extinguishes; board exits programming |
Open the weatherproof control box enclosure and locate the main printed circuit board (PCB) to find the tactile switch labeled LEARN, CODE, or RF SET.
Press and hold the LEARN button for approximately two to three seconds until the nearby programming indicator LED illuminates solid, signifying the board is in receiving mode.
While the programming LED is active, press and hold the specific button on your hand-held remote control transmitter for one to two seconds to transmit its RF code.
Observe the indicator LED on the gate opener control panel; rapid blinking or an audible beep confirms that the receiver has successfully learned the transmitter code.
Step away from the control cabinet, ensure the driveway area is clear of all obstructions, and press the programmed button to verify smooth motor relay activation and gate travel.
Allow the control panel to automatically time out after 10 seconds, or press the LEARN button briefly to exit programming mode and return the system to normal operating state.
Ensure fresh high-capacity lithium batteries are installed in all transmitters prior to programming, and avoid holding transmitter buttons down excessively long to prevent memory buffer overflow.
To enable automatic closure, locate the AUTO CLOSE DIP switch or digital menu setting on the control board, toggle it to the ON position, and adjust the trimmer potentiometer (TRIM-CLOSE) to set the desired pause delay duration (typically 5 to 120 seconds) before the gate automatically reverses direction to close.
Operational Tuning Tip: Always set the automatic closing timer in conjunction with safety infrared photocells. Never activate auto-close functionality without active secondary entrapment protection devices wired to the main stop inputs. |
Cloning or transferring codes between gate remotes allows users to duplicate transmitter access without opening the main control box panel.
Direct remote-to-remote programming—often called head-to-head cloning or wireless code learning—is a convenient feature supported by many modern gate opener radio receivers. This procedure enables facility administrators or homeowners to program additional transmitters without requiring physical access to the control board housing. This is especially advantageous in commercial environments or multi-family complexes where opening main electrical cabinets poses safety risks or operational downtime.
The process depends on whether the control system uses fixed-code frequencies or self-learning rolling-code technology. In fixed-code systems, the new remote physically copies the pulse-width modulation (PWM) sequence directly from the master remote. In rolling-code systems, the master remote acts as an authentication bridge, instructing the control board receiver wirelessly to open a remote learning window to accept the secondary transmitter.
Facility managers frequently prioritize wireless cloning to manage large volumes of user remotes. In our product engineering, we incorporate a localized master transmitter lock function. This prevents unauthorized personnel from self-cloning remotes unless the master administration key sequence is entered first, striking an ideal balance between convenience and security.
Cloning Parameter | Fixed Code Remote | Rolling Code Remote (Keeloq) |
Physical Distance | Touch top-to-top (1-2 cm) | Within RF range of receiver (2-5 meters) |
Master Required? | Yes, active original remote | Yes, authorized master remote |
Board Access Needed? | No | No (if wireless learning is enabled) |
Code Security Level | Low (Static Bit Sequence) | High (Encrypted Dynamic Key) |
Transfer Duration | 3 to 5 Seconds | 10 to 15 Seconds |
Ensure both original and target remotes operate on identical radio frequencies (e.g., 433.92 MHz) and that the master remote possesses a fully charged battery.
Place the master remote and target remote side-by-side or top-to-top, then press and hold the button on the master remote until its LED indicator stays solid.
While holding the master remote button, press and hold the target button on the new remote until its LED flashes rapidly, confirming successful RF code copying.
Certain high-security manufacturers require pressing a hidden rear button or specific two-button key combinations on the master remote to trigger receiver authorization before the target remote can be registered.

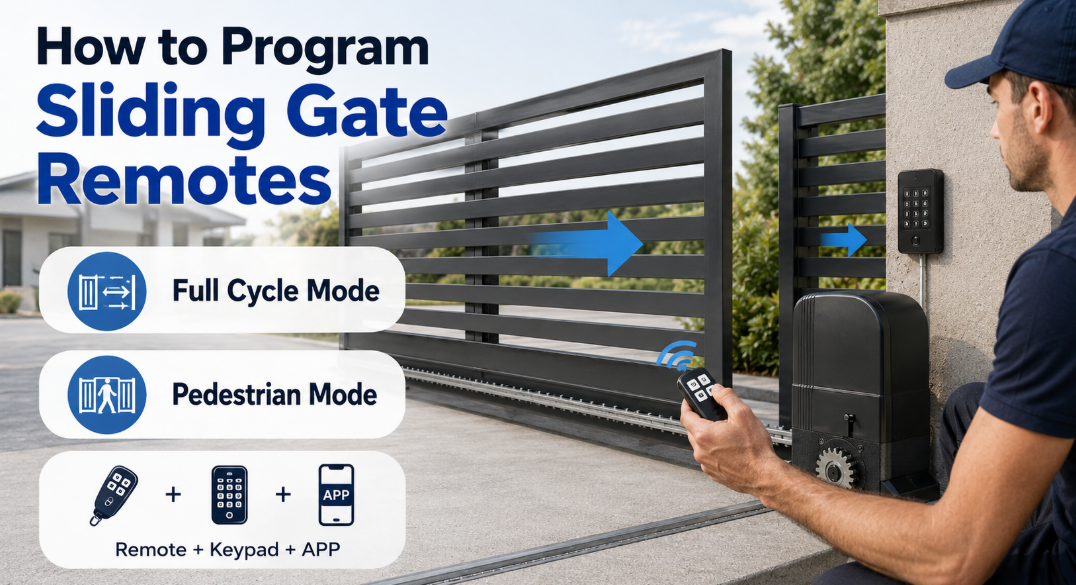

Programming sliding gate remotes requires syncing transmitter buttons to the sliding gate controller while configuring magnetic limit switches and safety sensors.
Sliding Gate Opener drive units represent a heavy duty category of perimeter automation where motor power, inertial momentum, and rapid response cycles demand precise electronic timing. When programming a Sliding Gate Opener remote control, technicians are configuring not only simple open/close relay functions, but often multi-function modes such as pedestrian mode (opening the gate partially by 1 meter) versus full vehicle cycle mode.
Furthermore, high-performance sliding gate systems require integrated calibration between remote commands, magnetic or optical limit switch feedback, and electronic soft-start/soft-stop acceleration ramps. An improper programming sequence can lead to hard mechanical impacts against travel stops, accelerating physical gear rack wear.
Our heavy-duty drive solutions, such as the Sliding Gate Opener Door Motor Garage Door Opener, utilize advanced microprocessor boards that support multi-channel remote programming, digital torque adjustments, and instant obstacle reversal logic designed for maximum operational safety. Additionally, systems equipped with our Sliding Gate Opener Door Motor Garage Door Opener modules deliver ultra-quiet gear engagement, high thermal efficiency, and IP55 weatherproof protection for extreme outdoor environments.
Why do industrial engineers insist on contactless magnetic limit switches for sliding systems? Mechanical microswitches suffer from lever freezing in winter and contact corrosion in humid climates. Contactless Hall-effect sensors deliver zero physical wear, maintaining exact micro-millimeter stopping points regardless of environmental conditions.
Operation Mode | Remote Button Configuration | Function & Gate Response |
Full Cycle Mode | Button 1 (Single Channel) | Full opening and closing travel to limit switches |
Pedestrian Mode | Button 2 (Dual Channel) | Partial opening (approx. 1 meter) for pedestrian access |
Stop / Emergency | Button 3 (Multi-Channel) | Immediate motor braking and movement hold |
Keypad Access | 4 to 6 Digit PIN Code | Transmits RF signal matching programmed receiver code |
Sliding Gate Opener devices utilize high-torque electric motors and rack-and-pinion transmission to convert rotational drive into smooth linear perimeter movement along ground tracks.
Access the sliding gate control panel, press the LEARN button once for full vehicle travel pairing or twice for pedestrian mode pairing, then press the desired remote button to lock the code into memory.
To program a wireless entry keypad for a Sliding Gate Opener, enter the master programming code on the keypad, press the LEARN button on the gate control board, enter your chosen access PIN on the keypad, and press the ENTER/SEND key to register the wireless RF code.
Sliding Gate Maintenance Tip: Keep the bottom gear rack free of leaves, gravel, and ice. Periodically check the magnetic limit switch pickup sensors to ensure they are aligned within 5mm to 10mm of the magnet brackets to prevent travel limit errors during remote operation. |
Mastering how to program an automatic gate opener is an essential skill for ensuring smooth, secure, and reliable access control across commercial, industrial, and residential sites. By following a systematic approach—from verifying mechanical balance and selecting the appropriate drive mechanism to accessing the logic board, executing the LEARN routine, and calibrating safety accessories—installers and facility managers can eliminate operational downtime and prevent security vulnerabilities. Whether you are setting up a single Swing Gate Opener arm or commissioning a high-torque Sliding Gate Opener motor, adhering to correct electrical protocols, battery maintenance schedules, and RF pairing steps guarantees optimal long-term system performance. Modern gate automation continues to evolve with smart connectivity and advanced encryption, making precise electronic programming the cornerstone of robust perimeter protection.
