To effectively troubleshoot wind-related issues on a swing gate opener system, technicians must systematically evaluate mechanical alignment, electrical stall force sensitivity, and structural mounting integrity. Wind resistance alters motor current draw and leaf velocity, which frequently triggers false obstacle detection or prevents complete latching. Resolving these operational disruptions requires recalibrating open and close stall force parameters, shortening soft-stop periods, securing bracket fasteners against structural deflection, and installing appropriate mechanical wind locks or high-torque dual-actuator drive configurations tailored to leaf surface area and ambient wind speeds.
Section | Summary |
1. Wind Adding Resistance During Gate Movement | Examines how headwind increases mechanical drag and motor current, leading to false obstruction triggering, and outlines parameter adjustments like stall force tuning, soft-stop reduction, and drive motor upgrades. |
2. Wind Assisting Gate Movement and Causing Unexpected Stops | Analyzes tailwind conditions that accelerate gate travel, cause inertia overspeeding, create mechanical back-drive tension, and require structural bracket inspection, manual force profiling, and electronic control load adjustments. |
3. Wind Pushing or Shaking the Gate When Fully Closed | Focuses on static holding force, wind flutter, structural play in moving-rod actuator arms, and hinge stability when the gate leaf is fully closed, recommending physical mechanical locks and heavy-duty structural anchors. |
When headwind forces act directly against a moving swing gate leaf, the added drag dramatically increases motor current draw, causing the swing gate opener control board to falsely identify the aerodynamic resistance as a physical obstruction and trigger an immediate stop or safety reversal.
Aerodynamic drag on a swing gate leaf directly correlates with surface solidity, wind speed, and moment arm length. High winds striking solid panels create significant pressure differentials, generating opposing torque at the hinge axis. This forces the automatic swing gate opener to draw excess electrical current, often causing current-sensing microprocessors to misinterpret wind resistance as an obstacle and trigger an unintended safety reverse.
Continuous operation against severe headwind drag also accelerates mechanical wear on drive screws, gearboxes, and hinge pins. If post flex causes axial displacement, internal friction multiplies, causing motor windings to overheat and triggering thermal shutdown.
To prevent these issues in high-wind conditions,high efficiency swing gate opener systems utilize heavy-duty gear trains, robust windings, and adaptive current profiling to handle heavy dynamic pressure while maintaining precise obstruction detection.
When an automatic swing gate opener stops prematurely or rebounds during opening or closing in windy conditions, technicians must execute a structured diagnostic procedure. Rebounding is almost always triggered by the electronic control board detecting an amperage spike that exceeds its programmed safety margin. Before altering electronic parameters, inspect the mechanical assembly to ensure that hinges are properly greased and aligned, as mechanical binding combined with wind drag will compound current spikes. Once mechanical freedom of movement is verified, systematic adjustments can be made to the electronic logic parameters governing stall force, motor deceleration, and operator sizing.
The primary setting governing obstruction sensitivity on modern swing gate opener control boards is the stall force adjustment, often controlled via potentiometer trimmers or digital LCD menu parameters (such as Force/Sensitivity). To prevent wind gusts from triggering false reversals, carefully increase the open and close stall force threshold in incremental steps. Elevating the stall force allows the motor to draw higher current during brief wind surges without triggering safety reversal circuits. However, technicians must ensure that safety parameters remain within compliance standards (such as EN 12453 or UL 325), ensuring that physical obstruction force limits are not exceeded in calm conditions. Installing secondary safety devices, such as infrared safety beams or rubber sensing edges, allows higher stall force thresholds to be safely utilized without compromising user safety.

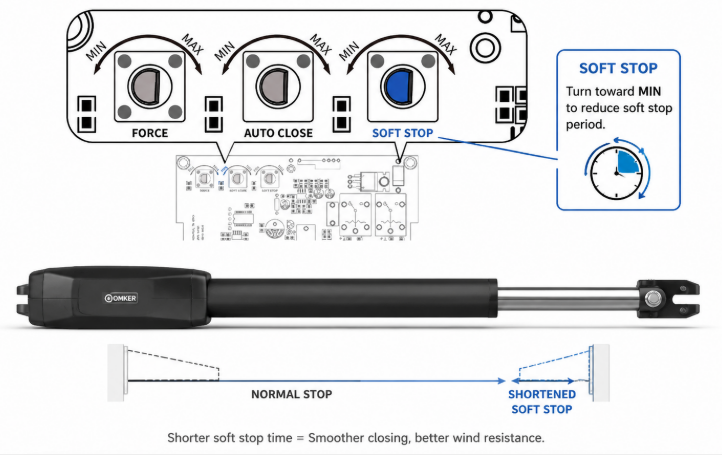

Soft stop (or deceleration zone) reduces motor voltage near the end of the travel stroke to ensure smooth, quiet mechanical landing. However, during the soft stop phase, the reduced motor torque makes the gate leaf exceptionally vulnerable to wind resistance. If a strong gust hits the gate while it is operating at reduced power, the movement halts entirely, causing the control board to sense an incomplete limit arrival and register a fault. Reducing the soft stop duration or adjusting the soft stop speed ratio ensures that the swing gate opener maintains full motor torque closer to its fully open or fully closed limit stops, effectively powering through final wind drag until physical limit switches or mechanical stop blocks are engaged.
If stall force adjustments and soft-stop reconfigurations fail to resolve mid-travel stopping in high-wind zones, the physical motor and mechanical leverage of the installed operator may be undersized for the site's aerodynamic profile. Swing gate opener motors installed on solid wood, vinyl, or metal composite gates face severe torque limitations if designed only for open-picket wrought iron gates. Upgrading to a high-capacity system with higher wattage, longer actuator stroke lengths, or hydraulic piston drives increases mechanical advantage substantially. A robust operator provides the mechanical thrust necessary to overcome extreme wind pressure differentials without pushing electronic safety circuits beyond safe operational thresholds.
Technical Maintenance Tip: Periodically calibrate force limits during different seasonal weather conditions. Winter winds and cold temperatures increase lubricant viscosity inside the gearbox, compounding mechanical resistance. Performing a master reset and recalculating travel limits ensures optimal performance year-round. For step-by-step guidance on re-establishing factory baselines, refer to our comprehensive guide on how to reset a gate opener system properly.
When strong tailwinds push a swing gate leaf in the direction of its travel, the leaf accelerates faster than the motor's programmed travel speed, causing mechanical back-driving, limit switch overshooting, and unexpected safety trip shutdowns.
When wind assistance causes erratic gate operation, unexpected mid-stroke stopping, or harsh mechanical landing, technicians must analyze both the physical structural hardware and the electronic control feedback. Uncontrolled tailwind acceleration subjects gate hinges, opener mounting arms, and internal gear teeth to extreme impact loading. A step-by-step diagnostic process allows technicians to isolate structural mechanical flexing from electrical drive errors.

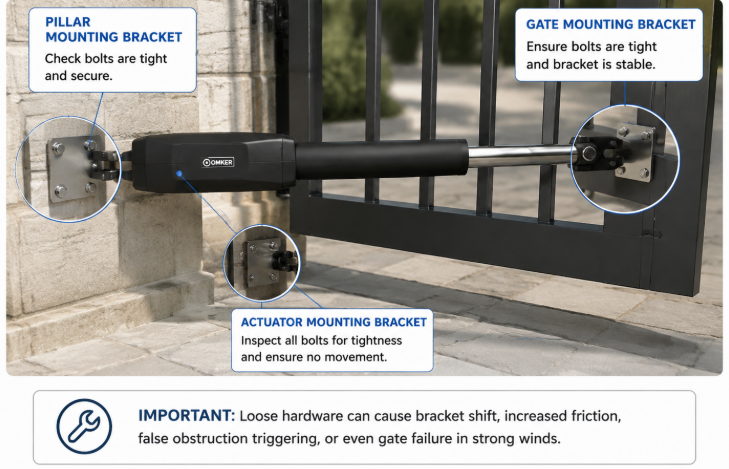

The sudden dynamic forces generated by wind-assisted gate movement place immense shear stress on structural fasteners and mounting brackets. Technicians must thoroughly examine the rear post bracket, front gate leaf bracket, and clevis pin connections of the swing gate opener. Look for elongated mounting holes, cracked welds, loose wall anchors, or bent bracket plates. Even 2 millimeters of structural play at the post mounting bracket translates into inches of instability at the latch edge of the gate leaf. Ensure all mounting bolts are high-tensile grade (Grade 8.8 or higher), equipped with lock washers or nylon lock nuts, and torqued to manufacturer specifications to eliminate mechanical hysteresis under wind loads.
To accurately assess mechanical wear and internal gear lash, disengage the emergency manual release key on the swing gate opener and manually move the gate leaf through its full arc of swing while simulating opposing and assisting wind forces by hand. Feel for inconsistent resistance, tight spots, or slop in the actuator arm telescoping tube or articulating joint. If the actuator rod exhibits noticeable axial play (moving in and out without gear rotation), the lead screw nut or internal drive gears have sustained wear from repeated wind impact. Replacing worn internal drive nuts or clevis bushings restores tight mechanical control, preventing tailwind momentum from causing errant limit overtravel.
Modern automatic swing gate opener control systems require precise calibration of electronic braking and load sensing parameters to manage assisted travel. Access the main control board settings to re-learn or adjust the travel path under normal environmental conditions. Ensure that electric motor braking features are activated within the programming menu. On advanced control boards, adjusting the deceleration speed and extending the soft-stop zone allows the board to apply controlled reverse voltage (counter-current braking) to stabilize leaf velocity when tailwinds attempt to push the gate beyond its calibrated speed profile.
Operational Principle Insight: Why do professional B2B gate system designers specify high-efficiency 24V DC brushless motors for wind-prone commercial entrances? Brushless DC designs offer superior low-speed torque control and continuous position feedback compared to traditional AC motors. This enables the control board to implement real-time speed regulation, active electric braking, and precise obstacle detection regardless of whether wind is resisting or assisting gate travel.
Wind pushing or shaking a fully closed swing gate leaf creates intense static pressure against the mechanical locking points, causing gate rattle, actuator rod fatigue, post vibration, and failure of the magnetic or mechanical latching mechanisms.
Addressing gate leaf shaking or displacement when fully closed requires isolating structural component flexing from mechanical back-drive clearance within the drive arm. Even when a swing gate opener is locked in its resting position, small clearances in pin connections, mounting brackets, and internal gears can aggregate into several inches of motion at the latch edge of a long gate leaf. A systematic inspection identifies the exact point of deflection.
Begin by physically grasping the latch edge of the closed gate leaf and attempting to shake it manually in the direction of swing. Closely observe the hinge posts, hinge brackets, and operator mounting plates. If the mounting post moves or flexes, the post foundation is inadequate and requires concrete reinforcement or steel gusset bracing. Inspect the hinge assemblies for worn pins or loose mounting bolts. Replacing worn standard hinges with heavy-duty adjustable ball-bearing hinges eliminates pivot play, ensuring that the gate leaf remains firmly seated against its closed mechanical stops under extreme lateral wind pressure.
While wind gusts press against the fully closed gate, visually monitor the telescoping moving-rod or articulating arm of the swing gate opener. If the moving-rod slides slightly in and out of the operator housing while the motor is stationary, internal mechanical clearances have widened due to wear or component flex. On electromechanical screw-driven operators, check for wear in the brass or nylon drive nut. On hydraulic operators, internal movement indicates bypass valve leakage or air contamination in the fluid lines, requiring fluid bleeding or valve seal replacement. Installing a heavy-duty mechanical solenoid floor lock or magnetic lock at the gate tip transfers static wind loads directly to the ground or end post, completely isolating the operator moving-rod from dynamic wind forces.
Professional Installation Recommendation: What configurations are most popular among European B2B commercial clients for high-wind environments? Industry data shows a strong preference for dual-gate systems utilizing 24V DC stroke-driven linear actuators paired with an automatic electric floor lock and physical rubber buffers. This combination provides three rigid locking points (hinge, center ground stop, and actuator mount), ensuring zero gate movement when closed and completely protecting internal motor gearing from wind fatigue.
