A rolling shutter motor is an electro-mechanical drive mechanism engineered to automate the vertical movement of curtain slats along stationary guide tracks. These motors replace manual hand cranks, counterbalanced springs, and chain hoists with automated, high-torque rotational power. By housing the motor assembly inside the drive tube or mounting it externally to a heavy-duty side flange, these units provide precise speed regulation, automated stopping, and integration with modern access control networks.
From an engineering perspective, shutter drives fall into two primary mechanical layouts: tubular motors and side-mounted (or central) industrial motors. Tubular motors fit directly inside the cylindrical barrel shaft, maximizing headroom and maintaining a clean aesthetic footprint. Side-mounted units utilize heavy-duty drive chains or direct gear couplings to lift massive industrial door curtains weighing up to several metric tons.
Standard Tubular Motors: Designed for commercial storefronts, window blinds, and light security shutters. These compact units operate at fixed speeds with low noise signatures.
Manual Override Tubular Motors: Equipped with an internal worm gear drive, allowing manual crank operation during total power outages.
Heavy-Duty Side-Mount Motors: Built for high-frequency industrial warehouse doors, incorporating three-phase electrical inputs and integrated safety drop-brakes.
At OMKER, our engineering team prioritizes structural durability and smooth rotational torque. By specifying precision-machined steel gears and high-grade copper windings, every rolling shutter motor delivers long service life under heavy operational loads. European commercial clients regularly request customized limits, low-noise braking systems, and integrated control cards. Explore our technical specifications and consult our experts via Contact OMKER Technical Support to optimize your entrance automation architecture.
Internal Diameter Range: Tubular units typically measure 35mm, 45mm, 59mm, or 92mm to fit standard drive tubes, whereas side-mounted motors sit externally on flange brackets.
Torque Output Range: Compact tubular motors deliver between 10 Nm and 300 Nm, while industrial side-mount systems supply 300 Nm up to 2000+ Nm.
Structural Frame Materials: Enclosed tubular housing uses die-cast aluminum and extruded steel, while heavy industrial drives rely on cast iron housings.
Duty Cycle Capabilities: Tubular motors are rated for 4 to 6 minutes of continuous operation (S3 intermittent rating), whereas three-phase side motors support continuous S1/S2 duty cycles.
Operational Tip: When selecting a rolling shutter motor, calculate total curtain weight plus a 30 percent safety factor to account for guide-rail friction, wind load resistance, and cold-weather lubricants. Under-specifying motor torque causes excessive heat accumulation, resulting in premature thermal overload tripping during consecutive operational cycles. |
Proper installation directly determines the operational lifespan, sound profile, and safety compliance of any rolling shutter motor. Improper axial alignment causes uneven gear load, severe vibration, and premature wear on the drive crown and drive adapter ring.
Shaft Preparation: Ensure the octagonal or round drive tube is clean, deburred, and free of internal weld seams. Insert the motor core until the drive adapter seats flush against the tube stop.
Crown & Drive Wheel Locking: Fasten the drive adapter to the tube using pop rivets or retaining screws. Avoid long screws that could pierce the internal motor housing or damage the copper stator windings.
Bracket Mounting and Leveling: Secure the motor head bracket to the end-plate using high-tensile fasteners. Verify perfect horizontal alignment across the barrel shaft with a precision level to prevent uneven load distribution.
Discover OMKER’s complete roller shutter motor range to find the ideal drive configuration for your specific installation setup:Discover OMKER’s complete roller shutter motor range.
Barrel Horizontal Tolerance: Keep shaft deviation within 1.5mm across 3 meters to avoid uneven slat wrapping and premature bearing fatigue.
Screw Fastener Insertion: Limit internal screw depth to under 10mm into the drive tube to prevent piercing stator coil insulation and causing electrical shorts.
Wiring Drip Loop & Bend Radius: Maintain a dynamic cable bend radius of at least 50mm and form a downward drip loop to stop water ingress.
Limit Screw Adjustment: Make precise half-turn adjustments during calibration to avoid over-travel and structural curtain jams.
Maintenance Note: During installation, ensure the electrical supply cable forms a downward drip loop before entering the motor head. This prevents rainwater or condensation from running along the cable wire straight into the electronic limit housing. |
The internal design of a rolling shutter motor reflects rigorous mechanical engineering optimized for extreme spatial constraints. A tubular motor must package high torque generation, speed reduction, position sensing, and dynamic braking into an elongated cylindrical housing.
Electromagnetic Stator and Rotor: Pure copper magnet wire wrapped around high-grade silicon steel laminations generates strong electromagnetic flux, producing stable rotational force with minimal thermal energy losses.
Multistage Planetary Gearbox: Compact planet gears distribute mechanical load evenly across multiple gear tooth contact points. This design dramatically reduces mechanical fatigue while magnifying motor output torque.
Electromagnetic Brake Assembly: Spring-applied, disc-type electromagnetic brakes instantly lock the drive shaft when power stops, preventing curtain drift or gravity drops.
Mechanical/Electronic Limit Assembly: Precision micro-switches driven by fine-threaded lead screws count total barrel shaft rotations to cut power at predetermined top and bottom curtain positions.
Engineers often analyze how mechanical wear compromises these components over time. If you observe grinding noises or uncommanded shutter drops, consult our detailed troubleshooting guide on identifying roller shutter motor mechanical failures to prevent total structural system failures.
Stator Core: Crafted from cold-rolled silicon steel sheets to suppress eddy current heat losses during extended cycles.
Planetary Gears: Precision-machined from high-tensile powder metallurgy steel to multiply torque within tight physical spaces.
Brake Assembly: Equipped with an asbestos-free friction lining for dynamic, immediate, and fail-safe mechanical holding.
Motor Shell: Built with corrosion-resistant extruded steel to maintain rigid internal shaft alignment under high load.
Limit Switch Gears: Molded from wear-resistant POM engineering polymer to retain accurate cycle counting over decades of use.
Design Philosophy: Why do we build our motor bodies with seamless extruded steel housings? Through field experience, OMKER engineers identified that cast-aluminum shells can deform under sudden wind-load back-torques. Steel housings preserve gear shaft mesh tolerances, eliminating gear binding and dramatically extending gearbox life. |

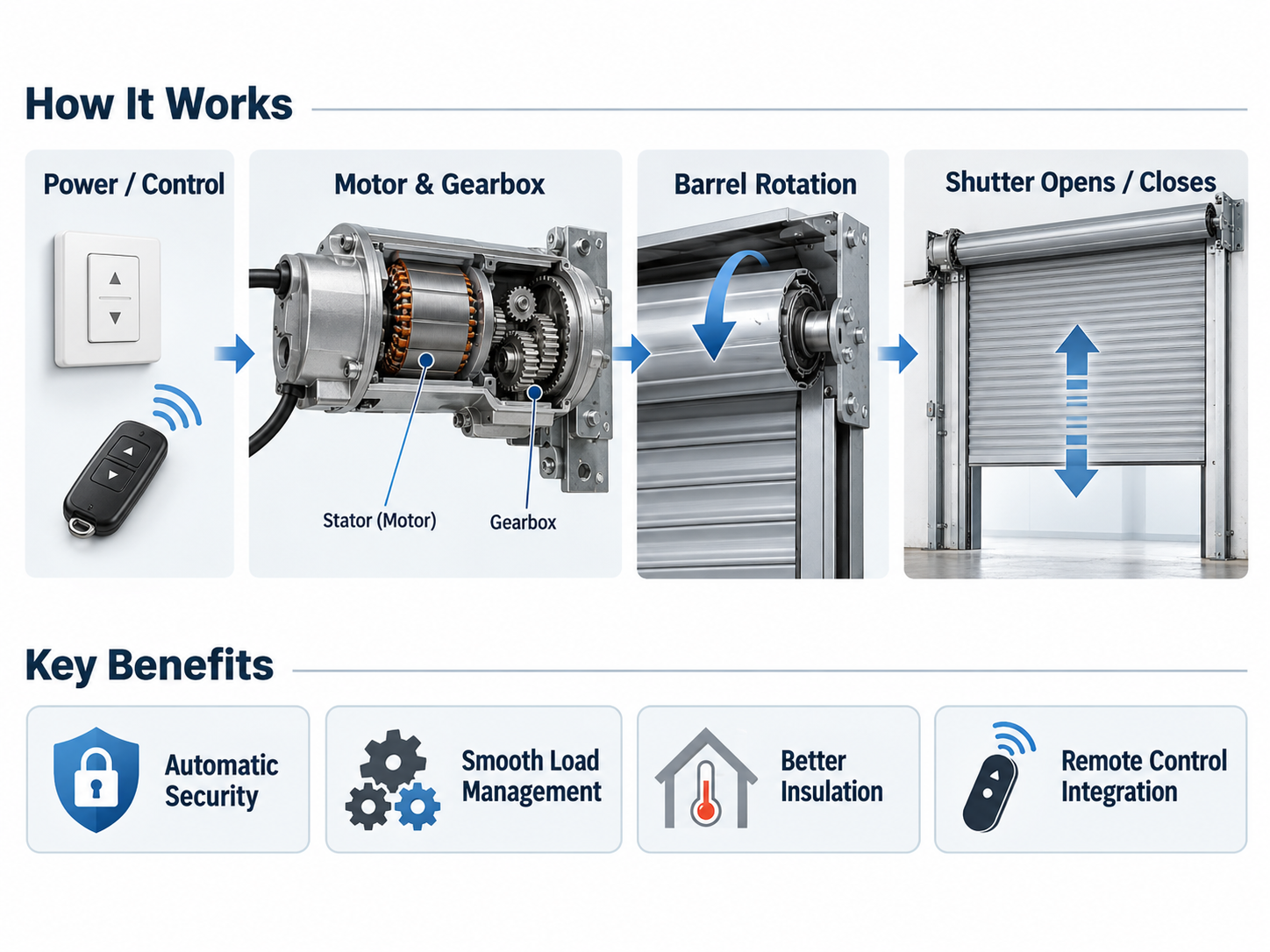

Understanding how a rolling shutter motor operates requires analyzing the conversion of electrical energy into linear curtain movement. When the control switch or wireless transmitter energizes the stator coil, the rotor spins at high speeds (typically 1400 to 2800 RPM). This high-speed, low-torque rotation passes into the multistage planetary reduction gearbox, converting speed into high output torque (typically 12 to 30 RPM at the final drive wheel).
Automated Facility Security: Motorized shutters eliminate physical padlocks and manual chains, locking automatically via electromagnetic dynamic braking systems upon closure.
Thermal Efficiency and Insulation: Consistent motorized closure preserves tight edge-brush sealing, minimizing HVAC airflow leaks and reducing building energy costs.
Smooth Load Management: Soft-start and soft-stop controller protocols eliminate mechanical shock, preventing slat distortion and extending guide-track longevity.
For high-volume distribution centers, equipping rolling curtains with reliable drive units eliminates costly delays caused by jammed mechanical chains. To upgrade your facility's access automation, source commercial-grade drive solutions directly from OMKER’s official rolling shutter motor series.
Lifting Speed: Automated motorized systems average 3 to 6 seconds per meter, compared to 10 to 30 seconds per meter with manual chain hoists.
Mechanical Stress: Electric drives deliver steady, uniform torque along the barrel pipe, eliminating jerky movements that distort curtain slats.
Control Integration: Automated drive units connect effortlessly with wireless remotes, RFID access readers, PLC panels, and building management networks.
Working Principle Core Note: The actual load on a rolling shutter motor changes continuously during operation. As the curtain rolls up, the effective barrel diameter increases with each layer of slat wrapped around the tube. This increases the effective lever arm, requiring maximum torque output right before full open position. |
Selecting the proper electrical power configuration ensures your rolling shutter motor operates reliably across diverse environmental conditions and utility infrastructure setups. Power requirements range from residential single-phase supplies to heavy industrial three-phase connections.
Single-Phase AC Power (230V / 120V): The standard configuration for small-to-medium retail storefronts and residential window shutters. These motors utilize an internal run capacitor to generate the phase shift needed for starting torque.
Three-Phase AC Power (380V / 415V): Used in heavy industrial applications. Three-phase power delivers smooth rotational torque without requiring phase-start capacitors, enabling continuous duty cycles (S1 rated) for logistics docks.
24V DC Power Systems: Low-voltage DC drive units powered by mains-charged battery back-ups or solar panels. Essential for emergency fire shutters that must operate automatically during total grid failures.
Single-Phase AC (120V / 230V): Standard grid connection ideal for storefronts and residential shutters; uses internal run capacitors to generate starting torque.
Three-Phase AC (380V / 415V): High-efficiency supply for logistics centers; eliminates starting capacitors to deliver non-stop S1 continuous duty capabilities.
Low-Voltage DC (24V System): Battery-backed configuration tailored for fire safety barriers and off-grid solar-powered entryways during total blackouts.
Power Selection Insight: In regions with unstable electrical grids, single-phase motors often fail due to voltage drops that prevent the run capacitor from initiating rotation. In these markets, OMKER recommends installing 24V DC drives with integrated battery management units, ensuring stable current delivery regardless of local grid fluctuations. |
When a rolling shutter motor lifts a heavy curtain, electrical resistance within the stator windings and mechanical friction inside the planetary gears generate heat. Because tubular motors are enclosed within sealed drive pipes, managing thermal dissipation is vital to prevent insulation breakdown.
Bimetallic Thermal Cutoff Switch: Embedded directly inside the stator copper coil bundle, this thermo-sensitive switch opens the electrical circuit when internal temperature reaches approximately 135°C to 150°C, cutting power to prevent winding burnouts.
Duty Cycle Ratings (S2/S3 Standards): Most commercial tubular motors carry an S2 (short-time duty) or S3 (intermittent periodic duty) rating, typically limiting continuous run time to 4 to 6 minutes before requiring a cool-down period.
Class H Insulation Materials: High-spec motors utilize Class H enamel magnet wire rated up to 180°C, providing superior protection against insulation failure caused by accidental overload cycles.
Cutoff Sensor Threshold: Bimetallic switches break circuit continuity between 135°C and 150°C to protect stator windings.
Cool-Down Cycle Duration: Standard thermal recovery requires 15 to 20 minutes of resting time under natural ambient cooling.
Coil Insulation Rating: High-performance units feature Class H magnet wire rated to withstand internal temperatures up to 180°C.
Positional Limit Accuracy: Precision fine-thread limit switch mechanisms maintain stopping accuracy within +/- 0.5mm across thousands of cycles.
Thermal Protection Protocol: Never bypass an internal thermal switch if a rolling shutter motor stops during high-frequency testing. Allow the unit to complete its natural 20-minute cool-down cycle. Bypassing thermal limits permanently compromises copper coil insulation, risking short circuits, fire hazards, and complete drive motor failure. |
