Commercial gate security systems and access control gates integrate electro-mechanical drive operators, vehicle detection safety loops, and multi-credential validation controllers (such as RFID, keypads, cellular, and license plate recognition) to manage vehicular flow, enforce perimeter security, and maintain complete audit trails for commercial facilities, industrial parks, and gated communities.
Section | Summary |
|---|---|
What is a commercial gate access control system? | Electro-mechanical perimeter defense solution combining barrier hardware, motors, loop detectors, and access validation terminals to regulate vehicle entry and exit. |
The different types of access control gates for buildings | Comprehensive overview of key verification credentials, including RFID smart cards and physical keypads for commercial gate security. |
Wired vs. wireless gate access control system considerations | Architectural comparison detailing performance, signal latency, and trenching costs between hardwired and wireless deployments. |
Benefits of security gate systems | Key security and operational advantages, including automated entry tracking and robust physical theft protection. |
Commercial gate entry systems use cases | Deployments across industrial logistics hubs, corporate campuses, commercial parking facilities, and gated residential communities. |
A commercial gate access control system is an integrated perimeter defense architecture engineered to regulate, track, and record vehicle movement across secured facility perimeters. Unlike low-duty residential gate openers, commercial barrier operators feature industrial-grade drive motors, heavy-duty gearboxes, and continuous-duty control electronics designed to handle intense, high-volume vehicular traffic without overheating or mechanical failure under harsh ambient conditions.
At its core, the system acts as an automated perimeter checkpoint. It continuously processes incoming signals from access validation readers, verifies user permissions against a centralized database, triggers high-torque motor relays, and executes controlled opening and closing speeds to manage lane access safely and efficiently.
High-traffic industrial depots and commercial facilities demand exceptionally reliable physical infrastructure. Deploying rugged, continuous-duty Parking Gate Systems ensures reliable operation through thousands of uninterrupted daily cycles while preventing unauthorized entry attempts and perimeter security breaches.
A commercial gate installation consists of several key mechanical and electronic subsystems:
Barrier Operator Housing: Weatherproof IP54 to IP66 rated cold-rolled steel or aluminum enclosure housing the motor and control electronics.
Brushless DC Drive Motor: Provides continuous-duty rotational torque with minimal heat generation and extended service life.
Precision Gear Reducer: Converts high-speed motor rotation into smooth, high-torque boom arm actuation.
Central Access Controller: Multi-protocol logic board managing signal inputs, user authentication, relay outputs, and event logging.
Safety Detection Sensors: Inductive ground loops, radar units, or photo-eyes that prevent the barrier arm from lowering onto vehicles.
Credential Verification Terminals: Reader devices such as long-range RFID antennas, vandal-resistant keypads, or license plate cameras.
The operation of an automated commercial gate follows a precise, sensor-controlled workflow managed by the access controller:
Vehicle Presence Detection: An approaching vehicle trips an entry inductive ground loop, signaling the reader terminal to activate or wake up.
Credential Processing: The driver presents a credential (RFID tag, PIN, or mobile app token), which the reader transmits to the central controller via Wiegand or OSDP protocols.
Relay Activation: Upon permission validation, the controller energizes the motor drive relay to trigger barrier lifting.
Controlled Boom Actuation: The drive motor executes a soft-start acceleration profile, raising the barrier arm smoothly to a complete 90-degree vertical position.
Safety Loop Clearance and Auto-Close: Once the vehicle traverses the gateway and clears the inner safety loop, the controller signals the motor to decelerate and lower the boom safely back into place.
Technical Design Choice: In our high-capacity commercial barrier designs, we explicitly select 24V DC brushless motors paired with precision gear reduction mechanisms over traditional brushed AC motors. Brushless DC configurations eliminate brush wear, produce significantly less heat during continuous operation, and enable fine-grained micro-stepping speed control. This allows for soft-start and soft-stop deceleration curves, which drastically reduces mechanical shock loads on the drive spindle and extends barrier arm service life by over 300%.

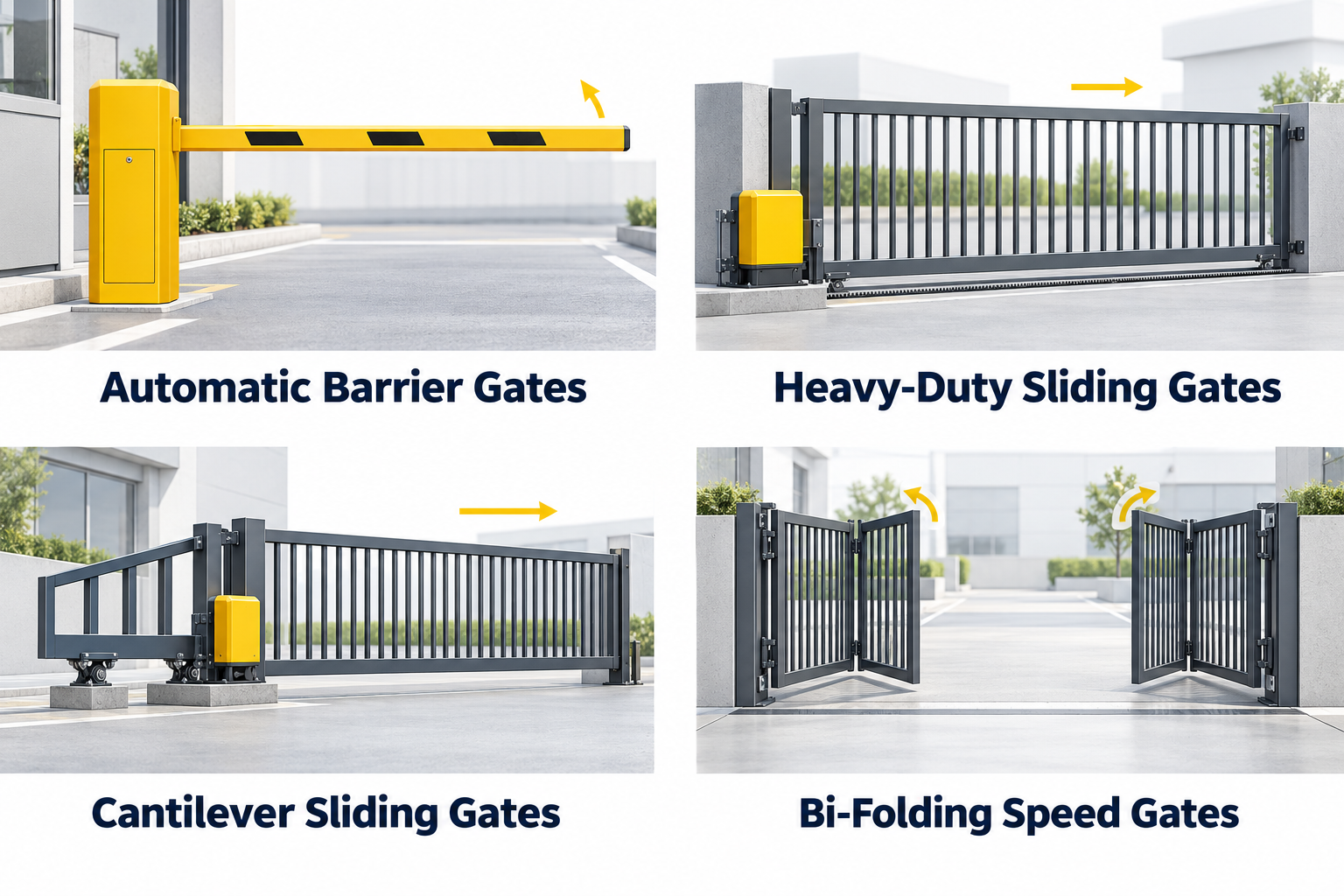

Facility managers select physical gate configurations and credential verification hardware based on lane footprint, cycle speeds, and security requirements:
Automatic Barrier Gates: Rapid-action aluminum boom gates (0.9 to 3.0 second opening times) optimized for high-volume parking lots, commercial garages, and logistics checkpoints.
Heavy-Duty Sliding Gates: Horizontal rack-and-pinion drive gates designed for high-security perimeters with restricted entry depth but ample lateral wall space.
Cantilever Sliding Gates: Suspended trackless gate leaves that eliminate ground rollers, preventing blockages caused by gravel, snow, or road debris.
Bi-Folding Speed Gates: Dual-panel folding gates delivering fast opening speeds and physical height protection for subterranean corporate parking garages.
European installation standards heavily emphasize tactile feedback and vandal protection. European commercial clients consistently favor mechanical metal keypads with IP68 ratings and integrated backlit silicone buttons. These keypads retain full tactile responsiveness during sub-zero winter temperatures, preventing key lockup caused by freezing ambient moisture.
Selecting between hardwired data lines and wireless links depends on budget, site geography, and latency requirements:
Hardwired Connections (RS-485 / OSDP / Ethernet): Deliver ultra-low latency (<10 ms) and complete immunity to radio interference, though requiring subterranean conduit trenching.
Wireless Connections (Cellular / RF / Wi-Fi): Eliminates expensive asphalt cutting and cable pulling, lowering installation labor costs significantly across expansive fence lines.
Hardwired installations offer maximum reliability for high-security facilities:
Trenching and Conduit: Excavate ground trenches to a depth of 18 to 24 inches, keeping low-voltage communication lines at least 12 inches away from AC power lines.
Cable Shielding: Use overall foil-shielded twisted-pair cables grounded at a single controller point to eliminate electrical noise interference.
Pad Mounting: Pour concrete pads according to operator anchor templates, ensuring conduit stubs extend cleanly above the finished surface.
Wireless deployments speed up project completion when trenching through reinforced concrete is impractical:
RF Line-of-Sight Check: Conduct a site survey to verify an unobstructed Fresnel zone path between the gate antenna and central receiver.
High-Gain Antenna Mounting: Install directional panel or Yagi antennas on elevated pedestals to ensure strong, stable RF links.
Signal Optimization: Verify cellular signal levels (RSSI/RSRP) at the gate enclosure, using external puck antennas to prevent metal cabinet signal shielding.
Automated commercial gates replace manual verification protocols with instant digital validation, eliminating human error at security posts:
Precise Audit Trail Generation: Systems log every vehicle access event with exact time stamps, user IDs, photos, and gate lane identifiers.
Enforcement of Anti-Passback Protocols: Prevents employees from passing credentials back to unauthorized secondary vehicles trying to enter the property.
Automated Tailgating Mitigation: Uses rapid-closing barrier booms paired with fast-acting induction loop logic to prevent secondary vehicles from tailgating behind authorized entries.
Robust physical gate design protects vulnerable commercial sites from forced entry and property damage:
Heavy-Gauge Steel Chassis: Rugged 2.0mm cold-rolled steel enclosures coated with anti-UV powder finish resist mechanical impacts and extreme weather.
Electromechanical Drive Locks: High-torque internal gearbox lockouts prevent unauthorized manual lifting of the barrier boom.
Tamper Sensing: Integrated micro-switches alert central security monitoring immediately if operator doors are opened or forced.
Commercial access control gates adapt to varying operational demands across industry sectors:
Logistics and Freight Hubs: Utilizes heavy-duty continuous-duty barrier operators to manage high volumes of heavy truck traffic seamlessly.
Corporate Office Garages: Employs long-range UHF RFID and rapid-action barrier gates to eliminate employee queue bottlenecks during morning peak hours.
Commercial Paid Parking: Integrates barrier gates with payment kiosks, ticketing terminals, and loop sensors to regulate revenue-generating parking.
Gated Communities: Combines resident RFID tags, visitor mobile apps, video intercoms, and emergency vehicle siren-override sensors for balanced security and convenience.
Maintenance Checklist for Commercial Gate Systems: To maintain optimal system performance and extend electro-mechanical equipment service life, site technicians should follow a strict preventive maintenance schedule:
Monthly Inspection: Check drive belt tension, inspect barrier arm hardware connections, clear ground loop wire cut channels of debris, and test infrared safety photo-eye beam responsiveness.
Quarterly Lubrication: Apply high-temperature lithium grease to internal drive bushings, pillow block bearings, and spring tension linkage points. Never apply heavy grease directly to motor drive belts or nylon gears.
Semi-Annual Electrical Audit: Measure motor operating current under load, check terminal block wire screw tightness against vibration looseness, verify DC backup battery voltage under full load conditions, and clean reader antenna housings.
