Automatic Gate Opener Types: Sliding, Swing, and Barrier Gate Solutions Explained

Introduction

As a senior automation engineer with decades of field deployment experience across Europe and North America, I have seen perimeter security fail due to improper mechanical pairing—such as mounting light-duty linear motors on solid high-wind gates. Modern facilities demand high duty-cycle longevity, seamless integration, and strict safety compliance like EN 12453 and UL 325. This technical guide breaks down the engineering principles of sliding, swing, and barrier gate openers.

What Is an Automatic Gate Opener?

An automatic gate opener converts electrical or solar power into kinetic force to actuate physical access barriers. Modern units serve as industrial automation hubs featuring multi-voltage logic boards, magnetic limit sensors, variable frequency drives, and torque-sensing control loops.

Selecting the optimal operator requires treating the gate leaf and motor as a single dynamic assembly. Leaf mass, surface area, friction, and hinge alignment dictate the motor's required torque curves, thermal thresholds, and mechanical gear ratios.

Main Components of a Gate Opener System

Core parts include AC/DC motors, worm gearboxes, control boards, transmission gear racks or arms, limit switches, photocell safety sensors, and RFID or keypad interfaces.

Why Gate Opener Type Matters

The mechanical drive design dictates force transfer to the gate frame. Incompatible drive choices cause rapid gear wear, severe hinge fatigue, motor burn-outs, and unexpected safety trips.

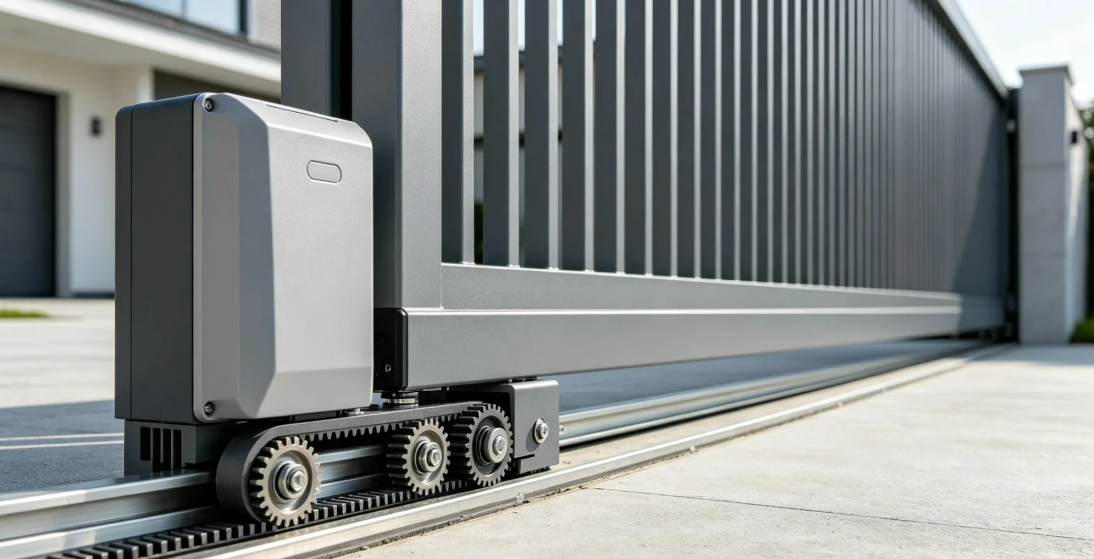

⭐Sliding Gate Openers

Sliding gate openers move horizontally along property lines via ground motors and pinions meshing with continuous racks. By operating laterally along ground tracks or suspended cantilever rollers, they eliminate driveway sweep clearance and handle heavy gate weights up to 3,000 kilograms.

How Sliding Gate Openers Work

A ground motor turns a pinion gear meshed with a horizontal rack on the gate, converting rotational power into linear motion along ground tracks or cantilever rollers.

Applications of Sliding Gate Openers

Ideal for freight terminals, steep driveways, and anti-ram security perimeters requiring long, heavy gates that move laterally without using driveway sweep space.

Advantages of Sliding Gate Openers

1. Zero driveway sweep footprint.

2. High wind load tolerance due to lateral vector movement.

3. Heavy weight capacity supporting industrial steel structures up to several tons.

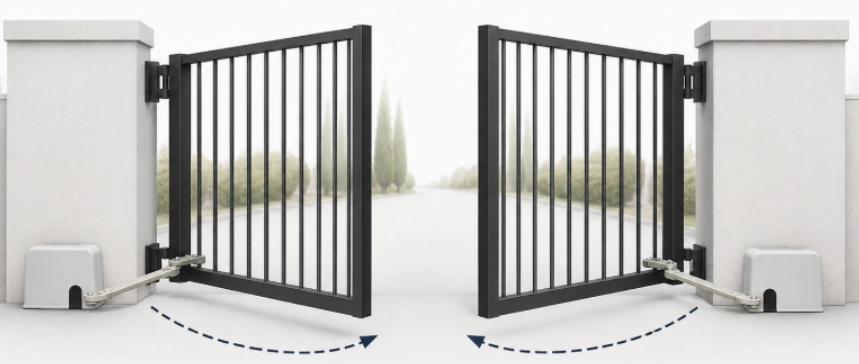

⭐Swing Gate Openers

Swing gate openers automate leaves that pivot around hinge posts using linear actuators, articulated arms, or underground drives. Linear screw or hydraulic arms attach directly to posts, while articulated arms wrap around wide pillars, and underground units offer clean, hidden integration.

How Swing Gate Openers Work

Linear actuators extend or retract a push-rod attached between post and gate leaf, creating rotational leverage around the main hinge pin to swing the leaf.

Applications of Swing Gate Openers

Widely deployed in residential estates, gated communities, and classic properties with wide side entryways where aesthetic presentation is prioritized over speed.

Advantages of Swing Gate Openers

1. Lower civil installation costs without ground tracks.

2. Invisible underground or sleek linear arm designs.

3. Versatile mounting options for wide or deep pillars.

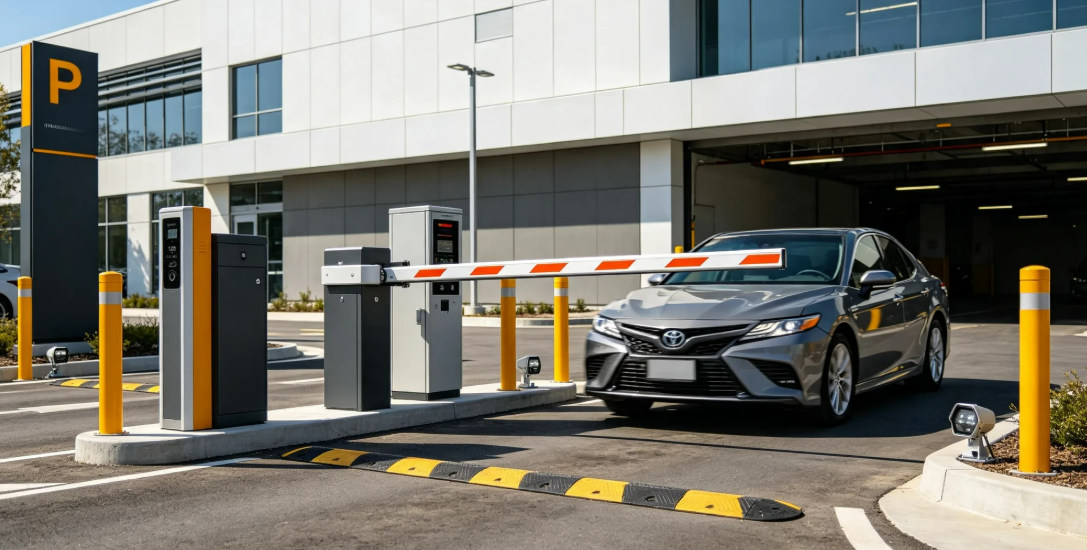

⭐Barrier Gate Systems

Barrier gate systems focus on rapid traffic flow management rather than full-height perimeter security. Utilizing counter-balanced internal spring assemblies and 24V DC motors, lightweight aluminum boom arms lift vertically in 0.9 to 4.0 seconds, supporting up to 10,000 continuous cycles daily.

How Barrier Gate Systems Work

A motor drives a counter-balanced crank leverage system, raising a lightweight aluminum boom arm vertically through a 90-degree arc in under 4 seconds.

Applications of Barrier Gate Systems

Essential for commercial parking structures, highway toll booths, distribution park checkpoints, and private lots managing rapid, high-density vehicle access.

Advantages of Barrier Gate Systems

1. Rapid 1-to-3 second opening speed preventing tailgating.

2. 100% continuous duty rating for continuous 24/7 operation.

3. Compact housing requiring minimal physical footprint.

Comparison Between Different Automatic Gate Opener Types

Choosing between opener architectures requires evaluating load capacity, cycle frequency, and layout geometry. Sliding gates save driveway space and endure strong winds, swing gates provide clean architectural lines, and barrier gates deliver high-speed vehicular throughput.

Sliding Gate Opener vs Swing Gate Opener

Sliding operators save driveway space and handle heavy wind loads easily, whereas swing operators require clean arc clearance but bypass complex track installations.

Gate Openers vs Barrier Gate Systems

Sliding/swing openers provide full-height perimeter physical defense at slower speeds. Barrier gates offer fast traffic management without anti-climb security barriers.

How to Choose the Right Automatic Gate Opener Type

Selecting the proper system involves assessing spatial clearance, daily usage frequency, and safety sensor requirements. Match gate weight, duty cycle ratings (30% residential vs 100% industrial), and regulatory safety standards (UL 325 / EN 12453) to your facility specs.

✅Consider Gate Structure and Installation Space

Assess available lateral runoff, driveway sweep arcs, leaf weight, material friction, and ground slope before choosing between sliding and swing geometries.

✅Evaluate Usage Frequency

Select intermittent duty motors (30%-50%) for residential sites, or specified 24V brushless/oil-bath systems (70%-100%) for high-volume commercial installations.

✅Consider Safety and Control Requirements

Ensure compliance with EN 12453 or UL 325 standards using obstacle-sensing motors, safety photocells, edges, loop detectors, and flexible RFID access interfaces.

Common Mistakes When Choosing an Automatic Gate Opener

Avoid common integration mistakes like sizing motors strictly by gate length while ignoring leaf weight and wind surface area. Never install standard swing arms on solid panel gates in high-wind regions, omit electrical surge protection, or mount heavy drive units to unreinforced masonry posts.

1. Sizing operators strictly by gate length while ignoring weight and wind surface area.

2. Installing standard swing arms on solid panel gates in high-wind regions.

3. Omitting thermal overload relays and lightning surge suppressors on main boards.

4. Mounting heavy openers onto weak posts or unreinforced concrete foundations.
