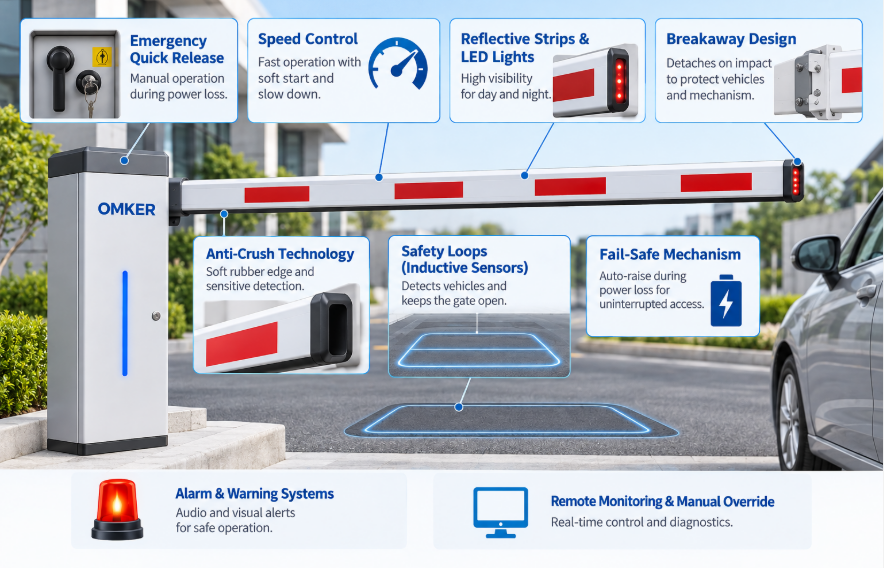

⭐Automatic vehicle access control requires multi-layered safety mechanisms—including inductive loops, photoelectric sensors, auto-retraction mechanics, and electronic torque limiting—to prevent physical impact and ensure uninterrupted fail-safe operation. |
The auto-retraction mechanism in a barrier gate immediately detects physical contact or electronic resistance during the lowering cycle and automatically reverses the motor direction to return the boom to a fully open position.
Optical Encoder Integration: Tracks fractional motor shaft rotation to spot millisecond delays caused by physical contact.
Motor Current Sensing: Measures amperage spikes occurring when the barrier arm encounters physical resistance.
Programmable Reversal Height: Allows engineers to program partial or complete open clearance upon obstruction sensing.
Auto-Closing Reset Timer: Holds the barrier arm at full clearance until safety loops re-confirm clearance.
An emergency quick release is a mechanical declutching system that allows security personnel to manually raise or lower the barrier gate arm during total power loss or system failure.
Keyed Clutch Disconnect: Prevents unauthorized manual operation by securing the release mechanism inside a locked steel cabinet.
Spring-Assisted Manual Lift: Uses internal tension springs to counterbalance the dead weight of the arm during manual lifting.
Hand Crank Interface: Provides direct mechanical shaft rotation for heavy-duty articulated or fence-style barrier arms.
Micro-Switch Cutout: Automatically cuts electrical control power when the clutch is disengaged to protect operators.
Safety loops are inductive wire coils embedded beneath the roadway surface that generate an electromagnetic field to detect metal vehicle masses and hold the barrier gate open.
Presence Loop Positioning: Placed directly beneath the arm sweep area to prevent premature downward movement.
Approach Loop Activation: Triggers ticket dispensers or RFID readers and opens the barrier upon vehicle approach.
Exit Loop Clearance: Sends a dedicated closing signal immediately after the rear bumper clears the detection zone.
Crosstalk Suppression: Employs multi-channel frequency tuning to eliminate interference between adjacent lane loops.
Reflective strips and dynamic LED lights provide critical visual signaling to make the barrier gate arm clearly visible under adverse weather conditions, darkness, or high-speed approaches.
High-Vis Prismatic Tape: Alternating red and white reflective blocks maximize daytime and nighttime contrast.
Dynamic LED Striping: Runs the entire length of the arm to clearly mark physical clearance heights.
Cabinet Strobe Indicators: Mounted on top of the barrier housing to signal internal mechanical movement.
Auto-Dimming Controllers: Adjust LED output intensity at night to reduce driver glare while maintaining high visibility.
The speed control and slow-down mechanism utilizes digital motor controllers to regulate motion profiles, ensuring fast arm movement while dampening end-of-travel mechanical stress.
Soft-Start Acceleration: Gradually ramps up motor torque to prevent gear teeth stripping and mechanical shock.
High-Speed Mid-Travel: Drives the arm quickly through its primary arc to maximize vehicular throughput.
Dual-Stage Deceleration: Slows rotational velocity down near end limits to ensure smooth seating.
Electronic Braking Assistance: Applies dynamic motor braking power to hold the arm steady in high winds.
A breakaway design features a specialized shear-pin flange mounting that detaches the barrier gate arm upon impact, protecting both the vehicle body and the internal drive gear mechanism.
Sacrificial Shear Coupling: Snaps predictably under severe impact to absorb kinetic collision energy.
Pivoting Adapter Hinge: Allows the arm to swing forward harmlessly rather than snapping into sharp pieces.
Detachment Safety Tether: Keeps the released aluminum arm tethered to the main housing to prevent secondary road hazards.
Instant Disconnect Sensing: Cuts control panel outputs the instant the arm detaches from its mounting base.
Anti-crush technology combines soft rubber profile edges, internal pneumatic pressure switches, and continuous resistance profiling to prevent injury or damage to objects beneath the boom.
Hollow EPDM Bumper Profile: Provides initial mechanical cushioning during direct physical impact.
Pneumatic Wave Switches: Triggers instant reverse response from tiny air volume displacement.
Integrated Safety Edges: Sends low-voltage signals to the controller when physical pressure is applied.
Smart Amperage Thresholds: Monitors drive motor load to stop downward force if the arm contacts an object.
A fail-safe mechanism automatically raises or unlocks the barrier gate arm during primary AC power losses, ensuring unhindered emergency evacuation and clear passage.
Integrated Uninterruptible Power Supply: Keeps logic controller and motor running smoothly during main line power outages.
Power-Off Auto-Raise Circuit: Releases holding brakes to allow internal spring tension to pull the arm up.
Low Voltage Auto-Open Control: Reads incoming mains voltage and opens the barrier automatically before power degrades completely.
Solar Power Compatibility: Operates with remote solar panels and charge controllers on unpowered perimeters.
Alarm and warning systems utilize audible buzzers, visual flashers, and digital status outputs to actively signal gate movement and alert security teams to operational faults.
Pre-Motion Audio Chimes: Sounds a brief warning tone prior to motor engagement.
Flashing Housing Beacons: Provides high-visibility amber or red flashing lights during arm movement.
Anti-Tailgating Alarm: Sounds a distinct alarm if a second vehicle attempts to follow an authorized vehicle without validating access.
System Diagnostic Signals: Outputs specific fault tones for low battery, loop fault, or sensor obstruction issues.
Remote monitoring and manual override systems give site operators real-time network control over barrier gate status, sensor health, and forced emergency operation.
Network Management Panels: Displays real-time arm position, sensor triggers, and system fault alerts on central dashboards.
Remote Emergency Override: Allows operators to lock all perimeter barrier gates open or closed with a single click.
Cycle Counting Diagnostics: Tracks total arm lifts to prompt timely spring and bearing replacement schedules.
Third-Party Integration Ports: Connects cleanly with RFID readers, license plate recognition (LPR) cameras, and ticketing systems.
Commercial Parking Facilities: Utilizes high-sensitivity inductive loops and soft EPDM anti-crush edges to prevent vehicle scratches and ensure smooth driver throughput without gate downtime.
Toll Plazas & Transit Lanes: Employs high-speed motor control, breakaway arm flanges, and retro-reflective LED lighting to mitigate damage during high-velocity vehicle impact events.
Industrial & Logistics Hubs: Integrates long-boom counterweights, dual safety loops, and remote network diagnostics to safely manage high-volume heavy truck and trailer traffic.
Residential Communities & Estates: Combines soft-start deceleration, pre-motion audio chimes, and automatic battery backup systems to deliver low-noise operation and reliable power-outage access.
