What Are The Different Types Of Security Barrier Gates

A security barrier gate is an automated electromechanical or hydraulic physical perimeter control device engineered to regulate vehicular access, enforce lane control, and secure perimeter entry points across commercial, industrial, and residential sites. The primary structural types of security barrier gates include straight boom barriers, articulated boom barriers, traffic control and road barrier gates, smart parking barriers with License Plate Recognition (LPR), drop arm barriers, high-speed toll gates, and heavy-duty anti-ram crash barriers.

At a Glance

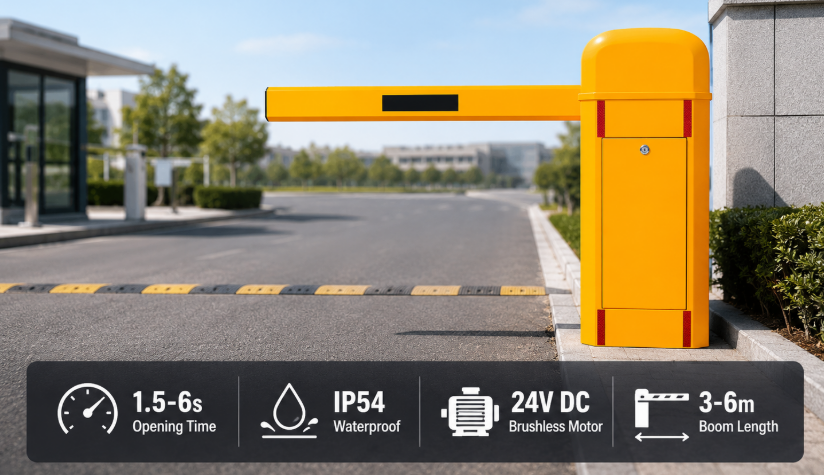

Straight Boom Barrier / Parking Lot Barrier

Straight boom barriers represent the standard electromechanical physical access control solution for regulating vehicular traffic entry and exit across commercial parking facilities, residential complexes, and industrial compounds.

Straight boom barrier gates utilize a continuous rigid aluminum alloy or stainless steel arm extending horizontally from a fortified housing cabinet to block vehicle entry. The primary mechanical function relies on an internal drive system composed of a high-torque brushless DC motor or a heavy-duty AC induction motor coupled with a precision planetary or worm gear reducer. Internal counterbalancing compression springs are calibrated to match the specific weight and length of the boom arm, neutralizing gravitational resistance during operation. This balanced architecture reduces mechanical stress on the drive motor, enabling smooth acceleration and deceleration curves that prevent mechanical bouncing at the end of the stroke. When a valid credential signal is processed, the motor disengages the mechanical lock and rotates the primary lever mechanism, driving the arm upward to a ninety-degree vertical stance in operational speeds ranging from 1.5 to 6 seconds depending on arm length.

In engineering practice, clients prioritize duty cycle capability, mechanical durability under continuous load, and manual release capabilities during site power outages. High-frequency parking environments require drive mechanisms rated for 100% continuous duty cycles and over five million Mean Cycles Between Failures (MCBF). European clients frequently request integrated optical LED warning strips along the boom arm coupled with rubber anti-collision bottom edges to protect vehicle surfaces. The housing cabinets are manufactured from cold-rolled steel or stainless steel with IP54 to IP65 ingress protection ratings, treated with electro-galvanized coatings and thermo-hardened polyester powder paint to withstand intense ultraviolet exposure and atmospheric corrosion.

When integrating access equipment into large-scale commercial facilities, engineering teams must deploy reliable physical barriers like the Automatic Parking System Straight Boom Barrier to ensure predictable lane discipline and continuous operational longevity.

1. High Structural Rigidity: Constructed from high-strength extruded aluminum profiles, the straight arm resists bending under moderate wind loads while remaining light enough to minimize motor inertia.

2. Simplified Maintenance: The direct drive mechanical configuration reduces internal wear components, allowing site technicians to replace balance springs and belt drives using standard tools.

3. Versatile Safety Sensor Integration: Direct compatibility with dual-channel loop detectors, infrared photocells, and millimeter-wave radar radar sensors prevents accidental closure on underlying vehicles.

Traffic Control & Road Barrier Gate

Traffic control and road barrier gates are high-speed, heavy-duty access systems specifically engineered to manage intensive vehicular movement on public highways, toll plazas, bridge checkpoints, and arterial site entrances.

Traffic control road barriers operate at high mechanical speeds, raising arms from zero to ninety degrees in as fast as 0.6 to 1.2 seconds. This high-speed capability is vital for preventing vehicular queue tailbacks at high-throughput choke points like toll plazas or highway access lanes. The internal mechanism relies on custom-engineered servo drive systems or specialized hydraulic actuators. Digital servo motors allow complete sinusoidal motion profiling, meaning the boom arm accelerates rapidly out of the resting position, travels at peak velocity, and decelerates smoothly into the fully open vertical position without mechanical shock.

High-speed traffic barriers are often subjected to collision impact risks due to driver error at high speeds. To safeguard both the barrier mechanism and the vehicle, modern traffic barrier gates feature break-away auto-unlatching arm holders. Upon lateral impact, the arm holder releases the boom arm from the main shaft drive without snapping the arm or damaging the internal gearbox, allowing facility operators to reattach the boom arm within minutes. Furthermore, traffic gates feature hollow, aerodynamic elliptical boom profiles designed to lower wind resistance coefficient under high crosswinds, preventing motor stall or gear tooth shear during severe weather conditions.

1. Ultra-Fast Cycle Time: Rapid response rates of under 1 second drastically reduce lane processing latency, driving higher hourly vehicle throughput on managed lanes.

2. Impact-Resistant Safety Design: Auto-breakaway boom holders absorb collision energy laterally, saving motor drive components and minimizing facility downtime costs.

3. High All-Weather Reliability: Sealed IP65 housings and integrated heating elements allow consistent performance in freezing rain, extreme thermal conditions, and coastal air.

To control high-density lanes without causing traffic congestion, site planners deploy physical access controls such as an Automatic Barrier Gate for Efficient Traffic Control to maintain precise lane assignment and automated vehicle processing speeds.

Smart Car Parking System with LPR

A Smart Car Parking System with LPR merges physical barrier gate hardware with automated computer vision cameras, edge processing nodes, and cloud management software to deliver ticketless vehicle access and automated revenue collection.

Modern smart car parking gates function as integrated edge components within a broader digital network. As an approaching vehicle crosses an underground inductive triggering loop, an high-definition License Plate Recognition (LPR) camera with integrated infrared illumination captures multi-frame images of the front registration plate. The local edge-AI processor applies Optical Character Recognition (OCR) algorithms to convert the visual image into an alphanumeric string within milliseconds. This string is cross-referenced against a whitelist or blacklist in the local server or cloud-hosted database. Upon positive validation, the central controller triggers the barrier gate relay, opening the lane without forcing the driver to stop, roll down a window, or insert a physical access card.

From an engineering design perspective, European and North American clients require seamless software integration via standard RESTful APIs, MQTT protocols, and native Wiegand/RS485 physical interfaces. The main barrier gate units in smart parking systems incorporate intelligent control boards capable of outputting detailed telemetry, including cycle counts, motor thermal warnings, and arm position statuses. Advanced systems also include anti-tailgating algorithms: as soon as the authorized vehicle passes the secondary clearance loop under the arm, the controller immediately commands a rapid closure sequence to prevent unauthorized secondary vehicles from slipping through the open gate behind the legitimate user.

1. Ticketless Operational Efficiency: Eliminates mechanical paper ticket dispensers and magnetic card readers, significantly reducing consumable costs and mechanical jam failures.

2. Seamless Vehicle Flow Rate: Enables continuous vehicle entry speeds, preventing long idling queues at commercial facility perimeters during peak operational hours.

3. Enhanced Audit Trail and Security: Records high-resolution time-stamped images of every entering and exiting vehicle plate for real-time tracking and forensic audit logs.

Access Control & Security Barrier

Access control security barriers encompass high-security physical structures including drop arm barriers, heavy-duty anti-ram crash barriers, and full-height perimeter gates engineered to prevent unauthorized vehicle intrusion into restricted industrial and governmental perimeters.

High-security barrier gates differ from standard parking barriers in their structural reinforcement, power delivery, and resistance to physical impact forces. While standard boom barriers serve primarily as traffic deterrents, security access barriers act as physical stopping mechanisms against forced vehicle breach attempts. These systems often utilize heavy-gauge structural steel drop arms, internal steel cable reinforcing cores, or integrated hydraulic bollards and road blockers. The drive units are frequently electro-hydraulic, utilizing high-pressure fluid pumps and dual double-acting hydraulic cylinders to lift heavy barrier beams or heavy-gauge steel structures.

When specifying physical security barriers for military bases, power plants, data centers, and chemical processing facilities, engineers refer to international impact standards such as ASTM F2656 or IWA 14-1. These standard certifications rate barriers based on their ability to stop a 6,800 kg medium-duty truck traveling at velocities ranging from 50 km/h to 80 km/h. High-security access control barrier gates feature heavy locking pins that physically couple the drop arm into reinforced receiver posts upon complete closure, transferring kinetic energy directly into deeply buried concrete footings during an impact event.

1. High Penetration Resistance: Reinforced internal cabling and locking post designs convert vehicular kinetic energy into structural shear resistance, stopping hostiles at the perimeter.

2. Flexible Access Credential Integration: Connects with biometric scanners, long-range RFID tags, facial recognition terminals, and remote security command software.

3. Fail-Safe Emergency Protocols: Incorporates dedicated accumulator tanks or battery backups to allow automatic full closure or rapid emergency deployment (EFO) in under 1.5 seconds.

Technical Comparison of Barrier Gate Architectures

Selecting the correct security barrier gate requires evaluating several operational parameters, including ceiling clearance, vehicle speed, traffic volume, and perimeter security requirements. The comparative analysis below provides a structured overview of key specifications across primary barrier gate classifications.

System Selection Guidelines for Site Engineers

When designing a comprehensive perimeter access control layout, facility engineers must balance operational speed against long-term mechanical reliability. Selecting an improper barrier configuration often leads to premature component wear, excessive noise, or security breaches.

1. Evaluate Site Geometry and Vertical Clearance: For indoor basement parking garages with restricted head clearance, specify articulated boom barriers that bend at a 90-degree or 180-degree angle during lifting. For open outdoor lanes, straight aluminum boom gates offer higher durability and simpler spring balance adjustment.

2. Calculate Daily Traffic Load and Peak Duty Cycles: Sites exceeding 5,000 daily passes require 24V DC brushless servo motors or commercial hydraulic drive units. AC induction motors should be reserved for low-frequency residential community gates due to thermal cutout risks during continuous operation.

3. Integrate Redundant Safety Layers: Never rely on a single vehicle detection source. Combine double-channel ground loop detectors for metal mass detection with optical infrared sensors and high-frequency wave radar to detect pedestrians and non-metallic objects.

4. Plan for Environmental Conditions: Marine environments and chemical production sites require 316 stainless steel enclosures or high-grade electro-galvanized zinc housings rated IP65 to prevent structural rust and control board failure.

The choice of a security barrier gate system depends on matching drive mechanics, control integration, and physical construction with the specific security demands of the site. Modern barrier systems serve as active edge components in integrated facility security networks, driving operational efficiency while maintaining reliable perimeter protection. Inspecting physical infrastructure requirements, environmental stresses, and traffic density parameters before installation ensures optimal performance, high reliability, and low lifetime operating costs.
