Sliding Gate vs Swing Gate: Which Is Right for Me?

Selecting between a sliding gate and a swing gate depends primarily on available driveway depth, lateral clearance, horizontal ground gradient, and intended operational frequency; sliding gates excel on steep inclines and space-constrained driveways by moving parallel to the fence line, whereas swing gates offer lower mechanical complexity and lower initial installation cost when ample inward or outward clearance exists.

At a Glance

1. What Is a Swing Gate?

2. What Is a Sliding Gate?

3. Cost Comparison: Sliding Gate vs Swing Gate

4. Maintenance & Reliability: Living With Your Gate Day to Day

5. Design, Aesthetics, and Property Value

6. Final Thoughts

7. FAQ

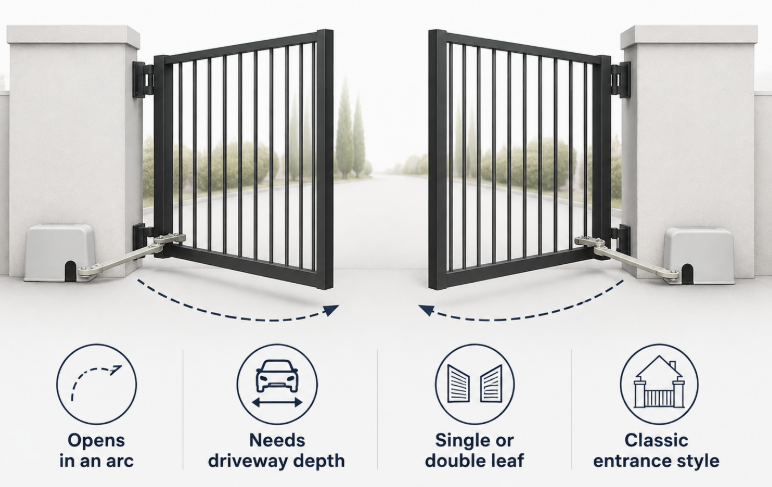

What Is a Swing Gate?

A swing gate is a perimeter access barrier hinged on vertical posts or masonry pillars that opens by pivoting inward or outward through a circular arc, utilizing electromechanical linear actuators or underground articulated arm drive motors.

A swing gate operates on fundamental rotational mechanics where the gate leaf pivots around vertical hinges attached to sturdy support structures. The drive system usually consists of linear screw actuators, articulated arms, or discreet underground hydraulic drives. From an engineering standpoint, swing gates demand precise pillar reinforcement because the cantilevered weight of the open leaf creates significant rotational torque and bending moments on the supporting posts. Proper swing gate performance depends heavily on structural stability and ambient environmental forces.

When evaluating automated swing gates for residential or light commercial access, selecting the correct electro-mechanical operator is vital for long-term dependability. High-torque linear actuators provide consistent thrust force along the arm length, maintaining secure holding power even during adverse weather conditions. For streamlined home entry points, modern low-voltage swing operators deliver silent operation, automated obstruction detection, and compact architectural integration. Incorporating a robust single arm electric swing gate opener ensures reliable torque distribution and precise limit-switch accuracy across daily residential opening cycles.

Single vs Double Swing Gates

Space, Slope, and Safety Limits for Swing Gates

1. Internal Depth Clearance: The driveway must provide an unobstructed arc space equal to or greater than the leaf length. Vehicles cannot park within this arc zone without blocking gate operation or incurring damage.

2. Ground Incline Limitations: Standard swing gates open inward toward the property. If the driveway rises sharply uphill toward the house, inward swinging leaves will strike the ground during opening unless special uphill hinges or outward swinging configurations are installed.

3. Wind Load Sensitivity: Solid timber or cladding panels on swing gate leaves act as air sails. High wind gusts exert high lateral leverage on the actuator arms, requiring heavy-duty gears and current-sensing safety boards to prevent false obstacle stops.

4. Pinch and Crush Hazards: Rotational movement creates pinch points near the support pillars and crush zones between the opening leaf and adjacent walls or fences, necessitating photocell beams and physical safety edges.

Pros and Cons of Swing Gates

1. Pro: Lower Civil Foundation Cost. Swing gates require only two vertical post footings rather than a continuous concrete beam across the entire driveway entrance.

2. Pro: Lower Mechanical Complexity. Without ground tracks or guide wheels, swing gates have fewer moving parts exposed to dirt, leaves, and ground debris.

3. Pro: Classic Architectural Appearance. The sweeping rotational motion of double swing gates provides a traditional, grand entrance aesthetic favored for luxury estates.

4. Con: Large Spatial Footprint. Swing gates consume valuable driveway depth that could otherwise be used for vehicle parking or landscaping.

5. Con: Vulnerability to Slope Obstructions. Inward slopes severely restrict swing gate installation without specialized mechanical adaptations.

6. Con: High Torque Stress in High Winds. Wind resistance imposes significant mechanical load on drive gearboxes during operation.

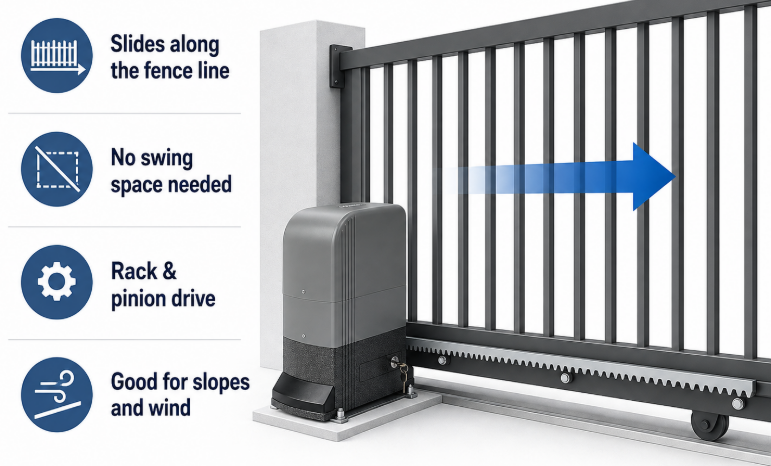

What Is a Sliding Gate?

A sliding gate is a horizontal access barrier that moves parallel to a fence line or wall using a rack and pinion drive mechanism running along a ground rail or supported by cantilever roller assemblies.

Sliding gates represent the optimal engineering solution for properties where space limitations prevent a gate leaf from swinging backward into the driveway. The operational architecture relies on linear motion along a single horizontal axis, eliminating the rotational clearance zone required by swing gates. There are two main structural variants: ground-track sliding gates and cantilever sliding gates. Ground-track systems utilize small steel wheels attached to the bottom of the gate frame, rolling along a subterranean steel track cast into a concrete footing. Cantilever systems suspend the gate leaf above the driveway surface, supported by a specialized roller carriage assembly mounted on a dedicated concrete base off to one side.

The mechanical drivetrain of a sliding gate relies on a high-torque electric motor coupled to a hardened drive gear that engages a continuous gear rack mounted along the length of the gate frame. In terms of wind resistance, sliding gates are superior to swing gates because wind forces act perpendicular to the direction of travel, creating minimal resistance against the linear motor mechanism. During industrial manufacturing of sliding gate gearboxes and motor housings, precision liquid chemical treatments are applied to achieve corrosion protection and fluid seals.

For residential and commercial properties seeking smooth horizontal access, implementing an automated rack-and-pinion operator is essential. Choosing a heavy-duty sliding gate opener door opener delivers high linear push force, reliable magnetic limit switching, and continuous duty cycles under varied ambient temperatures.

Rack Driven vs Pull-Cord Gate Opener

Space, Slope, and Safety Limits for Sliding Gates

1. Lateral Fence Line Clearance: Sliding gates require a long, straight fence line or wall adjacent to the opening equal to the driveway width plus motor offset room (or plus 30% to 40% length for cantilever tails).

2. Transverse Ground Gradient: Sliding gates move sideways across the driveway. While steep inward inclines do not affect sliding gates, a side-to-side lateral slope across the driveway forces the motor to push the full gate weight uphill during one direction of travel, requiring higher motor torque ratings.

3. Shear Zone Safety Risks: The gap between the moving horizontal gate frame and vertical support posts creates potential shearing and entrapment hazards. Rubber safety edges and safety photocells must be installed along all capture points.

4. Ground Track Debris Vulnerability: Ground-tracked sliding gates depend on a clean steel rail. Accumulations of gravel, ice, mud, or snow in the track channel can derail guide wheels or trigger motor overload switches.

Pros and Cons of Sliding Gates

1. Pro: Maximum Driveway Space Utilization. Sliding gates do not encroach into the driveway, allowing vehicles to park directly behind the closed gate.

2. Pro: Superior Wind Resistance. Linear travel parallel to wind currents prevents wind load binding and gearbox strain during storms.

3. Pro: Ideal for Inward Rising Driveways. Sliding gate movement is unaffected by steep uphill driveways that block traditional swing leaves.

4. Con: Higher Upfront Foundation Cost. Tracked sliding gates require a continuous, perfectly level concrete footing cast across the entire driveway width.

5. Con: Mandatory Lateral Side Clearance. Properties lacking sufficient fence line distance off to one side cannot accommodate a sliding gate panel.

6. Con: Track Cleaning Requirements. Ground rails require periodic sweeping to clear gravel, mud, ice, and debris.

Cost Comparison: Sliding Gate vs Swing Gate

While swing gates generally feature lower initial equipment and installation costs, sliding gates require higher upfront foundation investment but offer lower long-term mechanical wear and superior wind resilience.

• Civil Foundation Works: Swing gates only require standard pillar footings, keeping initial costs moderate. Sliding gates demand a high-investment, full-width reinforced concrete track beam (or an even larger footing for cantilever systems).

• Drive Hardware & Motors: Dual swing gates require two separate linear actuators, increasing motor expenses. Sliding gates use a single motor setup, though hardware costs add up across the gear rack, guide rollers, and track bars.

• Installation & Labor: Swing gates take 1–2 days to fit. Sliding gates require 2–3 days due to extended concrete track curing time.

• Mechanical Efficiency & Lifespan: Sliding motors experience less structural strain from gravity and wind, yielding lower long-term mechanical wear. Swing gates face regular stress on hinges and actuator seals.

• Lifetime Ownership Value: Swing gates offer a lower initial entry cost for standard residential use. Sliding gates provide higher ROI over high-frequency commercial operating cycles.

• Power Optimization Note: 12V/24V DC systems lower wiring and installation costs while simplifying solar integration.

Maintenance & Reliability: Living With Your Gate Day to Day

Daily reliability depends on keeping swing gate hinges aligned and wind loads within limits, while sliding gates require track clearance and roller lubrication to maintain smooth linear motion.

Swing gate reliability depends on structural alignment. Pillar settling and thermal expansion can misalign dual leaves and block central locking, requiring routine hinge lubrication, bracket torque checks, and actuator seal inspections.

Sliding gates offer consistent daily operation provided the ground track remains free of gravel, leaves, or snow, which trigger auto-reverse safety shutdowns. Cantilever models bypass this risk by enclosing roller bearings within a raised bottom channel. For both types, periodic gearbox and fluid checks maintain optimal drive performance.

Choosing reliable motor hardware simplifies maintenance routines significantly. Utilizing a compact single arm electric swing gate opener provides homeowners with weatherproof IP-rated enclosures and easy-access manual release keys in case of localized power failures. Similarly, installing an industrial-grade sliding gate opener ensures that internal gear trains operate smoothly without excessive heat buildup during peak commute hours.

For swing gates:

✅ Inspect and Grease Hinge Assemblies: Apply heavy-duty lithium grease to hinge pivot pins quarterly to eliminate friction, prevent binding, and stop early bearing degradation.

✅ Check Post Alignment and Plumb: Regularly measure post verticality with a spirit level to detect post settling or pillar leaning before gate leaves begin dragging.

✅ Verify Actuator Bracket Fasteners: Check mounting bracket bolts on both pillar and gate leaf attachments to ensure high motor thrust forces have not loosened anchor points.

✅ Clean and Inspect Linear Drive Shafts: Wipe stainless steel lead screws or hydraulic rams clean of dust and debris, applying light silicone spray to preserve water seals.

For sliding gates:

✅ Clear Ground Track Rails: Sweep the ground track weekly to remove pebbles, leaves, mud, and ice that could derail wheels or trigger motor auto-reverse stops.

✅ Inspect Gear Rack Backlash: Check the clearance gap between the motor pinion gear and steel rack along the entire gate length to prevent binding or teeth slippage.

✅ Lubricate Roller Guide Assemblies: Apply waterproof marine lubricant to upper guide rollers and internal wheel bearings to maintain smooth horizontal movement.

✅ Inspect End Stops and Limit Switches: Clean magnetic or mechanical limit switch sensors on the gate frame to ensure accurate opening and closing deceleration points.

Both gate types need:

✅ Safety Photocell Testing: Wipe safety infrared beam lenses clean monthly and perform obstacle interruption tests to verify automatic motor reversing function.

✅ Battery Backup Health Checks: Test battery backup charge levels twice annually by disconnecting main AC mains power and cycling the gate under battery power.

✅ Electrical Enclosure Pest Protection: Inspect motor control boxes for insect nests, gecko intrusion, or moisture ingress that could short-circuit printed circuit boards.

✅ Gearbox Fluid Inspection: Inspect synthetic gear oil levels annually, ensuring oil remains free of air foam or water contamination to protect internal drive gears.

Design, Aesthetics, and Property Value

A well-engineered driveway gate enhances curb appeal, increases perimeter security, and provides a measurable boost to overall residential or commercial property valuation.

• Swing Gate Architectural Fit: Ideal for traditional homes, rural estates, and corporate headquarters. The sweeping inward motion creates a classic, grand entryway, but requires clearance space to avoid hitting parked vehicles, landscaping, or utilities.

• Sliding Gate Spatial Efficiency: Suits modern architectural styles with a clean, linear profile. Horizontal movement preserves full driveway length, allowing vehicles to park directly behind the gate without obstructing operation.

• Security Performance: Preferred for high-security perimeters. Closed sliding gates offer stronger resistance against forced entry compared to swing gates, which rely on hinge pins and actuator arm stops.

• Manufacturing & Surface Treatment: Gate frames and motor enclosures feature anti-corrosion chemical baths and powder coatings. Industrial defoamers prevent air voids during liquid dipping, ensuring a smooth finish and protection against UV rays, salt spray, and oxidation.

Final Thoughts

Selecting between a sliding and swing gate comes down to balancing space, slope, usage frequency, and budget.

If your driveway slopes upward toward the property, a sliding gate is the best choice to avoid collisions with rising terrain. Conversely, if your perimeter lacks side fence clearance for horizontal movement, a swing gate becomes mandatory. Sliding gates excel in high-wind conditions, heavy daily traffic, and tight parking spaces, while swing gates offer lower installation complexity and classic curb appeal.

✅ Final Selection Framework

1. Evaluate Spatial Geometry: Measure driveway depth and lateral side fence clearance.

2. Analyze Ground Topography: Check for transverse slopes and rising incline gradients.

3. Determine Duty Cycle: Estimate daily open-and-close operations for motor power selection.

4. Select Motor Hardware: Match gate weight and leaf length with certified low-voltage DC operators.

5. Establish Maintenance Plan: Implement routine lubrication and electrical safety checks.

FAQ

Can I convert an existing swing gate into a sliding gate?

Converting an existing swing gate into a sliding gate is technically possible but requires significant structural modification. The original swing gate leaves must be joined together into a single rigid frame and reinforced with a bottom guide rail or cantilever tail section. Additionally, civil foundation works must be executed to install a continuous concrete track beam or cantilever roller mounting pad, alongside a new sliding gate operator and gear rack assembly.

Is one type of gate safer for children and pets?

Both gate types are safe when installed with modern safety sensors, but sliding gates present different risk points compared to swing gates. Sliding gates create potential shear points between the moving gate panel and adjacent fence posts, requiring protective rubber safety edges and anti-entrapment photocells. Swing gates create crush zones as the leaf swings toward fixed walls or pillars. Dual safety photocells, obstacle-detecting motor control boards, and current-limiting control units ensure high safety standards for both configurations.

Do I need planning permission or HOA approval for a new driveway gate?

In many jurisdictions and Homeowners Associations (HOAs), installing a new driveway gate requires formal approval or permits. Key regulatory factors include gate height restrictions, set-back distances from public roadways to prevent vehicle idling in traffic, and emergency vehicle access requirements (such as Knox Box rapid entry switches). Always consult local municipal building codes and HOA guidelines before commencing civil foundation works.

What happens to my automatic gate during a power outage?

Modern automatic gate operators feature built-in manual release mechanisms operated by a key or lever, allowing manual movement during power failures. Additionally, modern 12V and 24V DC motor systems support battery backup power units or integrated solar panels, enabling uninterrupted automated operation for dozens of cycles even during complete grid failure.

How long should a well-installed gate system last?

A professionally installed driveway gate system constructed from hot-dip galvanized steel or powder-coated aluminum can last between 15 to 25 years. Electromechanical drive motors and control boards typically feature an operational lifespan of 8 to 12 years, depending on duty cycles, environmental exposure, and adherence to routine lubrication and maintenance schedules.
