Installing a sliding gate opener requires pouring a level concrete pad, mounting the drive unit parallel to the gate rail, securing a rack or chain drive with exact clearance tolerances, wiring primary power and safety photocells, and calibrating electronic limit switches alongside obstacle-detection sensitivity for reliable long-term operation.

Table of Contents

  1. Tools and Materials Needed

  2. Unboxing and Organizing Components

  3. Preparing the Concrete Pad and Wiring

  4. Positioning and Mounting the Gate Opener

  5. Setting Up the Chain

  6. Installing the Photoeye and Secondary Safety Devices

  7. Power and Alignment

  8. Testing the Safety Devices

  9. Adding Accessories for Enhanced Functionality

Tools and Materials Needed

  1. Civil & Masonry Tools: Shovel, quick-setting concrete, and 3/4-inch PVC electrical conduits.

  2. Alignment & Measuring Tools: Spirit level, chalk line, measuring tape, and masonry drill.

  3. Mechanical & Electrical Tools: Socket wrench, electric drill, angle grinder, multimeter, wire strippers, and insulated screwdrivers.

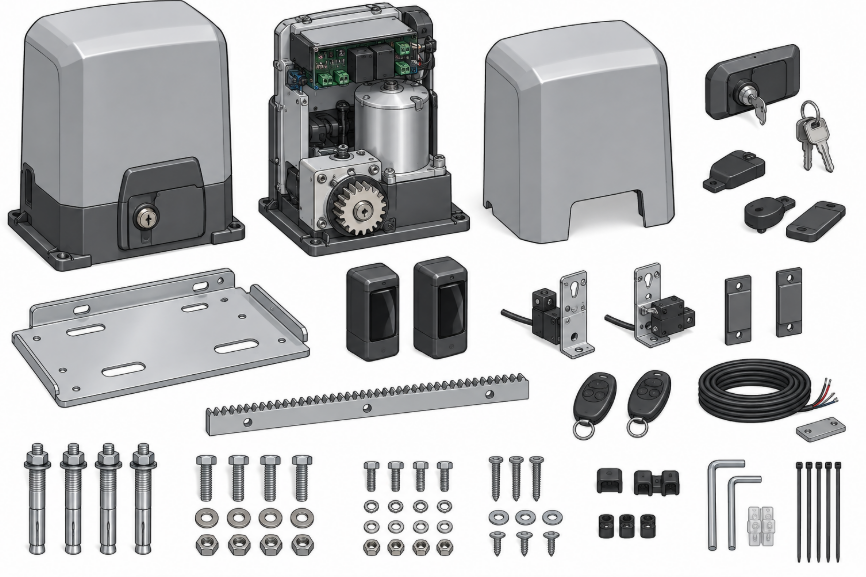

Unboxing and Organizing Components

Sliding Gate Opener.png

Unbox all components and verify against the kit inventory. Lay out the motor, base plate, hardware, and safety accessories on a flat surface. Inspect for shipping damage, organize fasteners by size, test key release locks, and ensure electronic control terminals are clean before installation.

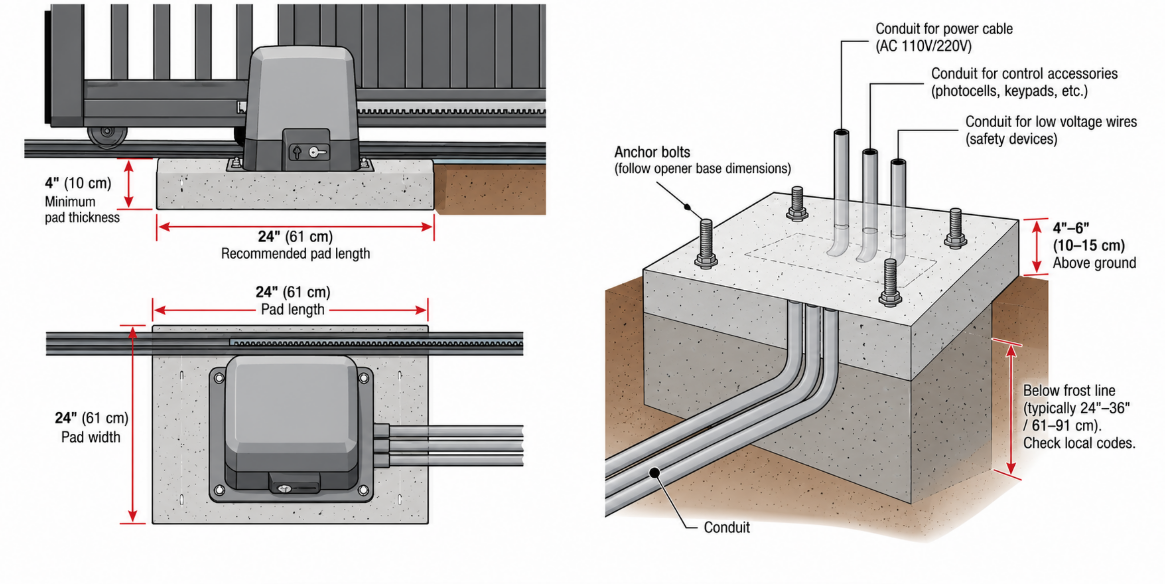

Preparing the Concrete Pad and Wiring

Sliding Gate Opener.png
  1. Excavate a 400 mm x 300 mm x 400 mm pad pit and run separate AC power and low-voltage signal PVC conduits with 100 mm separation.

  2. Pour minimum 25 MPa quick-setting concrete raised 50 mm above ground, embedding J-bolts leaving 30-40 mm exposed thread to cure for 24-48 hours.

  3. Consider a powered sliding gate kit if grid power access is unavailable.

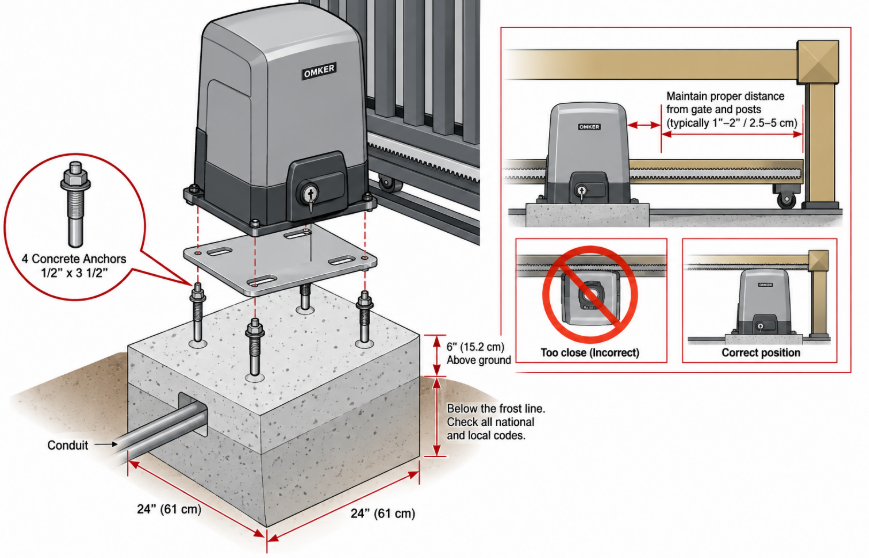

Positioning and Mounting the Gate Opener

Sliding Gate Opener.png
  1. Thread lower leveling nuts and washers onto anchor bolts, setting the steel mounting base plate perfectly level.

  2. Pull cables through entry holes, loosely mount the motor housing, align parallel to the gate rail, and tighten base nuts securely.

Setting Up the Chain

Sliding Gate Opener.png
  1. Disengage the gearbox, mount rack or chain brackets to the gate frame, and maintain a 1.5 mm gear backlash spacer.

  2. Extend rack sections continuously along the frame while keeping a 1.5-2.0 mm vertical gap above the drive pinion.

  3. Apply standard sliding gate system maintenance protocols to periodically check rack wear and chain tension.

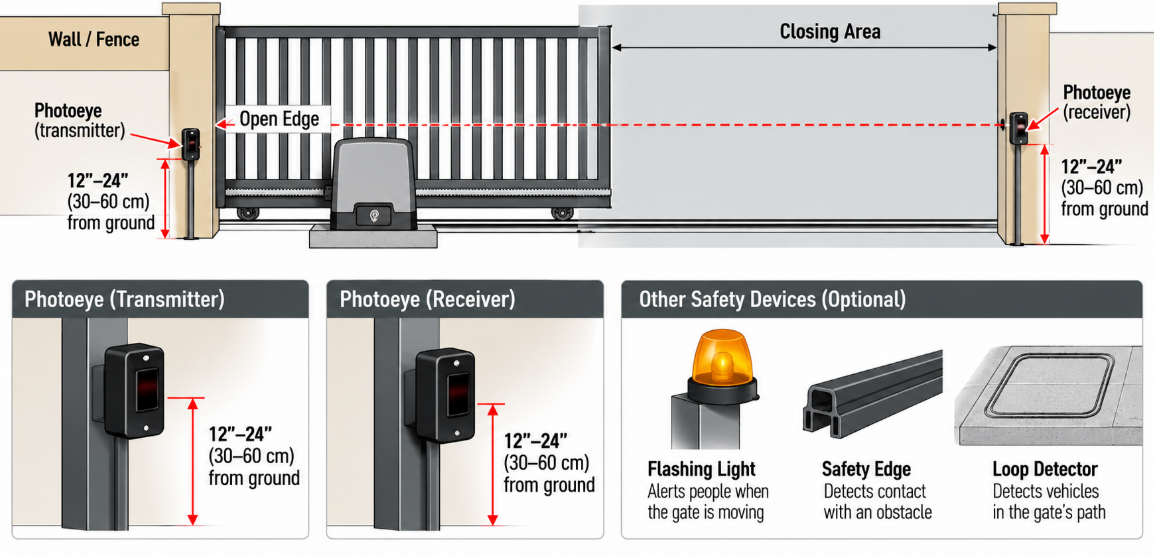

Installing the Photoeye and Secondary Safety Devices

  1. Mount aligned photoeye sensors across pillars at 200-300 mm height and wire Normally Closed (NC) terminals to the control board.

  2. Remove factory terminal jumpers, attach optional rubber safety edges along the gate front, and connect a warning flash lamp.

Power and Alignment

Sliding Gate Opener.png
  1. Turn off main AC power, connect Live, Neutral, and Earth terminals, and ground the metal chassis stud securely.

  2. Attach magnetic limit actuators onto the rack for open/close points, manual-slide the gate to verify travel limits, and re-engage the drive clutch.

Testing the Safety Devices

  1. Block the infrared beam during closing to confirm immediate auto-reverse.

  2. Place a solid barrier against the post to verify electronic force reversing sensitivity.

  3. Cut main power to test key manual release functionality and hand-slide operation.

  4. Reference procedures for diagnosing sliding gate motor issues if unexpected stop or reverse faults occur.

Adding Accessories for Enhanced Functionality

  1. Access Keypads & Loops: Install outdoor wireless keypads or driveway induction loops for seamless entry/exit.

  2. Smart & Solar Expansion: Integrate Wi-Fi/GSM smart modules and solar panels with backup batteries for remote control and power backup.

Summary

Installing an automatic sliding gate opener requires a balanced approach combining solid civil construction, precise mechanical positioning, and safe electrical wiring. By systematically pouring a level concrete foundation, maintaining the essential 1.5 mm rack-to-pinion backlash gap, wiring mandatory safety photoeyes, and calibrating electronic limits, first-time installers can achieve smooth, reliable, and safe operation.

Adhering to these engineering guidelines protects critical mechanical components, extends gearbox service life, and ensures long-term compliance with perimeter safety standards. Regular preventive maintenance—including sweeping track rails clear of debris, checking hardware torque, and testing auto-reverse sensitivity—will keep your automated sliding gate system operating quietly and securely for years to come.
