Installing gate openers sliding systems requires establishing a structurally reinforced concrete pad, executing precise mechanical motor pad alignment, setting calibrated drive chains or rack profiles, integrating mandatory secondary safety photoeyes, and fine-tuning electronic control board limit parameters to ensure seamless site access automation.
Tools and Materials Needed
Unboxing and Organizing Components
Preparing the Concrete Pad and Wiring
Positioning and Mounting the Gate Opener
Setting Up the Chain
Installing the Photoeye and Secondary Safety Devices
Power and Alignment
Testing the Safety Devices
Adding Accessories for Enhanced Functionality
Civil and Masonry Tools: Post-hole digger, concrete mix, rebar framing grid, bubble level, wood formwork boards, non-metallic conduit pipes, and a masonry drill bit set.
Mechanical Assembly Tools: Heavy-duty socket wrench set, torque wrench, wire strippers, chain breaker tool, steel tape measure, string line for axial calibration, and combination open-end spanners.
Electrical Diagnostics: Digital multimeter, insulated screwdriver set, heat-shrink tubing, cable crimpers, and electrical sealant for weatherproof conduit box termination.
European commercial clients frequently request integrated low-voltage DC drive units due to their seamless battery backup compatibility during grid outages. Selecting an industrial-grade drive motor unit like the high-efficiency Sliding Gate Opener Door Motor Garage Door Opener ensures that the motor housing natively supports heavy duty cycle demands without thermal overload.
Carefully unpack all hardware and perform an immediate inventory audit against the factory bill-of-materials to verify zero transport damage or missing fasteners. Keep the control PCB inside its anti-static shielding until structural mounting is completed to prevent electrostatic damage. Omker sliding gate systems package mechanical and electronic components in distinct sub-assemblies for efficient field assembly.
Drive Unit Assembly: Heavy-duty motor chassis with integrated die-cast aluminum gearbox.
Engagement Hardware: Galvanized drive chain (#41/#50) or reinforced steel gear rack sections.
Control & Access: Pre-wired main control board, multi-channel remote transmitters, limit magnets, and manual override keys.

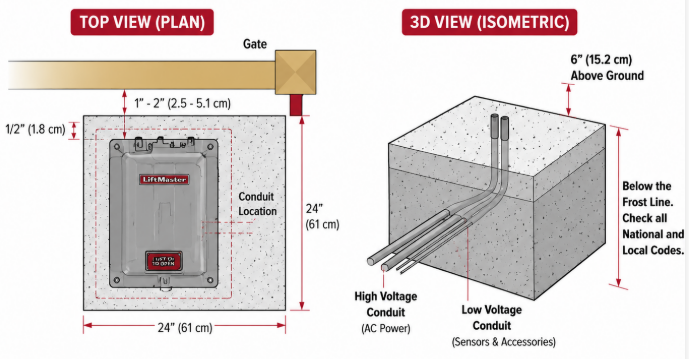

The mounting foundation must absorb starting and stopping inertial forces generated by heavy steel gate leaves moving at speeds up to 12 meters per minute. A foundation that shifts or settles causes pinion-to-rack misalignments, accelerating gear wear and causing premature system failure.
Concrete Pad Engineering Standards:
Depth and Footing Size: Excavate a hole at least 400 mm deep by 400 mm wide, extending below the local soil frost line to prevent seasonal ground heave.
Concrete Mixture: Cast using minimum 25 MPa compressive strength concrete, reinforced with a 10 mm internal steel rebar cage.
Conduit Placement: Route two separate rigid PVC conduits through the pad—one dedicated strictly to high-voltage AC mains power and the second dedicated exclusively to low-voltage sensor/accessory wiring to eliminate electromagnetic interference (EMI).
Proper foundation layout prevents water ingress into high-voltage junction boxes during torrential rain. Field engineers emphasize that improper structural foundation work accounts for over 40% of field service calls within the first two years of installation.

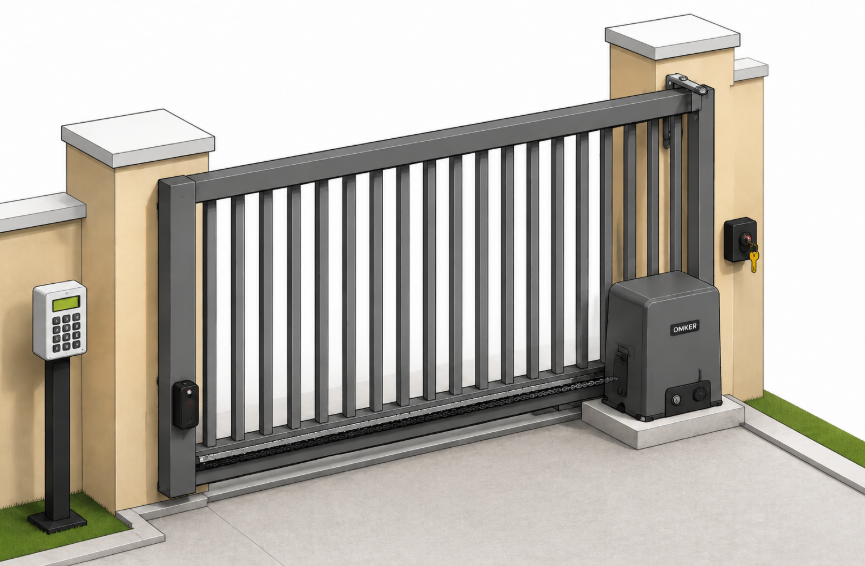

Mounting the operator demands exact horizontal and axial alignment to prevent vertical gate leaf weight from crushing drive shaft bearings and oil seals. Omker operator bases feature slotted adjustment channels for micro-calibration.
Secure the heavy-duty base mounting plate onto the concrete pad using expansion anchor bolts or J-bolts.
Level the base plate across both horizontal axes using leveling nuts and a precision spirit level.
Align the operator output sprocket parallel to the gate frame line, maintaining a 15 mm to 20 mm engagement clearance.
Secure the Sliding Gate Opener Door Motor Garage Door Opener onto the base, keeping mounting hardware finger-tight for final alignment checks.

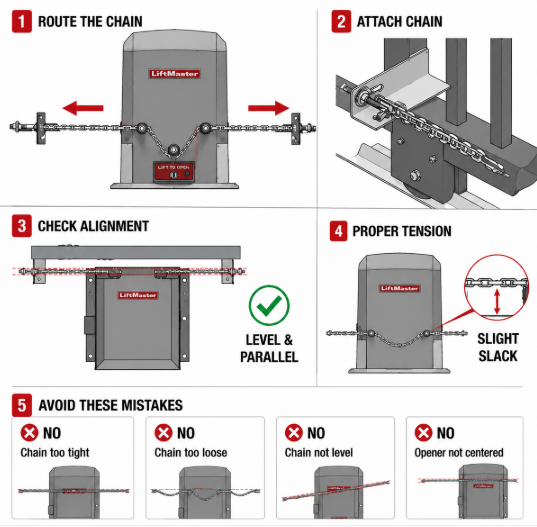

Connecting the drive chain creates the power transmission link between the worm-gear motor shaft and the gate leaf. Proper chain tensioning prevents drive slap during motor start cycles without overloading shaft bearings.
Attach heavy-duty chain brackets to both bottom ends of the gate leaf frame.
Thread the roller chain through the drive sprocket and beneath the internal guide idlers inside the chassis.
Connect chain ends to bracket turnbuckles using master connecting links.
Adjust turnbuckles until chain sag measures between 15 mm and 20 mm per 3 meters of span.
Maintenance Tip: Regularly clean drive chains and apply non-tacky synthetic lubricants to prevent dust buildup. Review our complete guide on Sliding Gate Maintenance Tips for 2026 for extended equipment lifecycle standards.

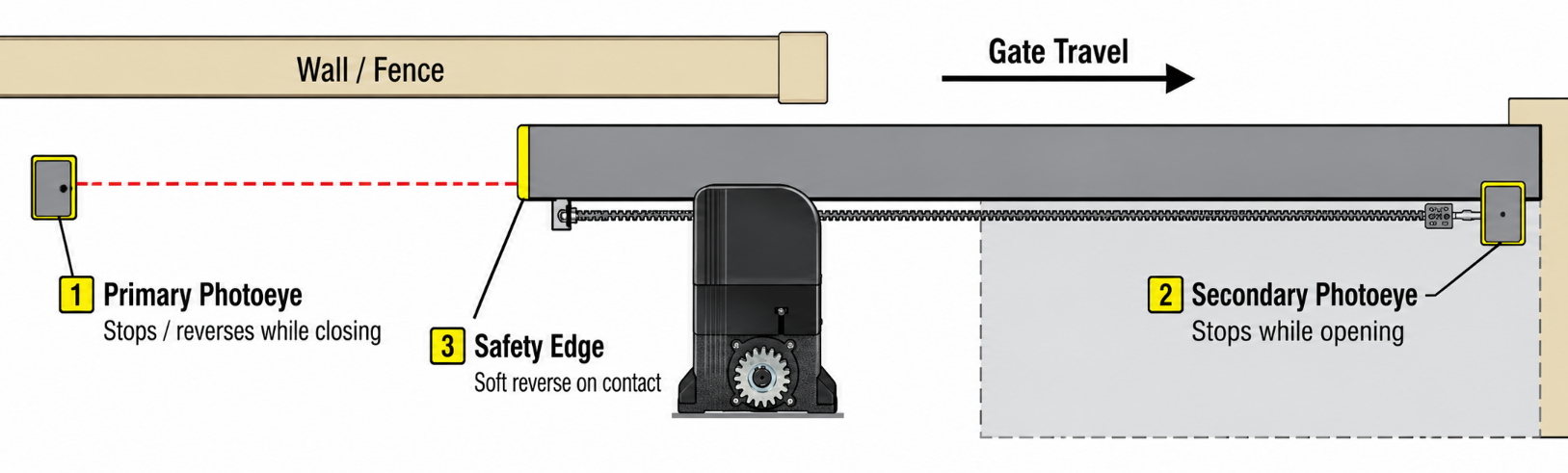

Installing active safety photoeyes and contact edges creates mandatory entrapment protection required by international standards (UL 325 and EN 12453) to safeguard vehicles and pedestrians.
Primary Infrared Photoeyes: Installed across the driveway opening (200 mm height) to trigger an immediate gate reversal when interrupted during closing.
Secondary Pocket Safety Beam: Positioned across the slide-back zone to prevent pinch-point trapping during opening cycles.
Resistive Edge Sensors: Mounted on the leading edge of the gate frame to initiate soft reversals upon physical contact.
Before energizing the system, complete a manual mechanical push-test to confirm the gate slides smoothly under 15 kg of force without binding along its track.

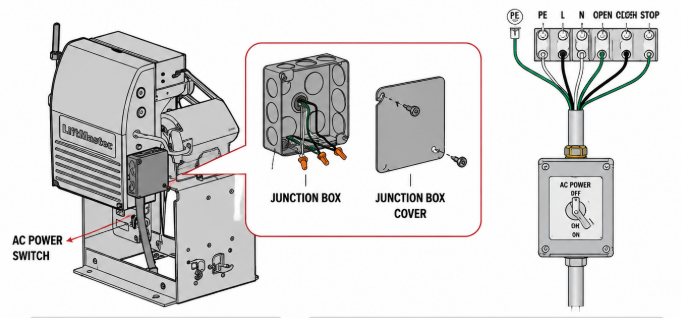

Verify that incoming AC supply voltage matches the control board specifications (220V/110V).
Terminate electrical wiring at main supply terminals and secure earth ground grounding connections.
Fix magnetic or mechanical limit switch brackets at the precise full-open and full-close travel limits.
Apply main power and observe system status LEDs to ensure stable DC control voltage output.
Energize the main board circuit and inspect system status LED indicators for low-voltage power supply health.
Systematic safety testing confirms that internal electronic force sensitivity and external sensing devices trigger instant system responses during physical encounters.
Obstruction Sensitivity Test: Place a rigid barrier against the closed post; the controller must sense amperage spikes and reverse direction within 2 seconds.
Photoeye Interruption Test: Break the active infrared beam during the closing cycle to confirm immediate gate reversal.
Manual Override Key Test: Disconnect mains power, insert the key, disengage the mechanical clutch, and confirm smooth manual gate operation.
Engineering Insight: Omker smart microcontrollers incorporate dynamic amperage sensing that continuously calculates wind resistance shifts while instantly detecting rigid obstacles for superior safety compliance.

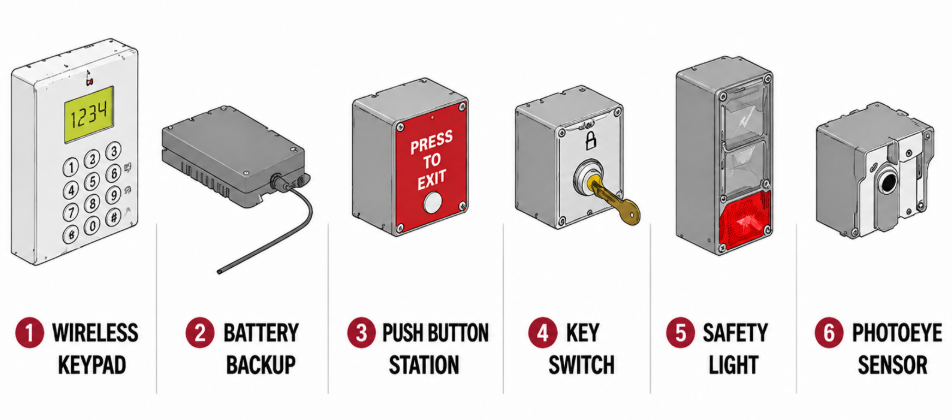

Connecting external access control peripherals maximizes perimeter security and convenience. Omker control boards provide onboard 12V/24V DC auxiliary outputs and dry contact terminals for plug-and-play expansion.
Wireless Keypads: Positioned on gooseneck pedestals at driver-window height, set back 1.5 meters from the gate line.
Inductive Loop Detectors: Cut into the driveway surface to provide hands-free automatic exit triggering and vehicle safety locks.
Smart Access Modules: Integrated Wi-Fi/GSM receivers connected to dry-contact terminals allow smartphone app control and real-time event tracking.
Installing gate openers sliding automation systems successfully requires combining structural preparation, clean mechanical installation, and precise safety integration. First-time installers who carefully establish a level foundation pad, execute proper drive chain or rack alignment, and rigorously test safety reverse mechanisms will ensure long-term, reliable perimeter protection. By choosing robust, high-performance automation platforms such as the Sliding Gate Opener Door Motor Garage Door Opener, maintaining accurate mechanical alignments, and following preventative care protocols like those detailed in our guide on Sliding Gate Maintenance Tips for 2026, property owners and professional contractors achieve long-lasting operational safety and perimeter security.
