A wider gate angle does not always create a better entrance. Poor geometry can reduce force or create unsafe clearance. The right swing gate opener must match the gate, posts, driveway, and required passage. This guide explains how to measure, calculate, set, and test the safest usable opening angle.
● The maximum opening angle is the lowest safe limit created by site clearance, hinge geometry, operator travel, and control settings.
● Start by measuring the passage needed for vehicles or equipment. Do not begin with the largest possible angle.
● Use the hinge center as the reference point when measuring gate rotation.
● Move each leaf manually through its full arc before installing or adjusting a swing gate opener.
● Linear-arm systems depend heavily on actuator stroke, hinge offset, and bracket spacing.
● Crank-arm systems can suit deep posts, but their folding arms need enough rear clearance.
● Roller systems can support broad movement, yet they require suitable ground contact and traction.
● Set mechanical, magnetic, electromagnetic, or electronic limits before adjusting motor running time.
● Test each leaf separately on double gates because their geometry may differ.
● Final testing should include safety devices, locks, wind exposure, auto-close settings, and repeated cycles.
Identify the largest vehicle or equipment using the entrance. Measure the usable space between posts and access devices. Once it provides enough passage and turning room, a wider angle adds little value.
For a residential driveway, the gate may only need to serve passenger vehicles. Commercial entrances may require clearance for trucks, trailers, forklifts, or emergency vehicles. The required passage should guide the target angle.
Close the gate and mark its position on the ground. Use the hinge center as the measuring origin. Do not measure from the outside post face, because hinge setback can distort the result.
Make sure the gate leaf is level before marking its position. Sagging hinges can change both the measured angle and the motor load during operation.
Release the operator according to its instructions. Move the leaf slowly through its full arc. Check the leading edge, hinge area, bottom clearance, and full sweep path. Stop before any wall, curb, fence, or rising ground.
The gate should move smoothly by hand. Resistance, scraping, or sudden changes in force should be corrected before installing or adjusting the motor.
Use an angle finder or two marked ground lines. One line follows the closed leaf. The other follows its widest safe position. Measure both leaves separately because their conditions may differ.
Record two measurements. The first is the absolute physical maximum. The second is the preferred operating angle, which should include clearance from nearby obstacles.
Compare the result with the operator’s installation dimensions. Review stroke, arm travel, post depth, hinge setback, and bracket positions.
OMKER’s swing gate opener range includes linear-arm, crank-arm, and roller structures for different gate layouts. The selected design must match both the target angle and the available installation space.
Set the mechanical, magnetic, electromagnetic, or electronic limit before final operation. The gate should stop before reaching an obstruction or the operator’s travel end.
Never use a wall, fence, or post as the normal stopping point. Repeated contact can damage the gate frame, hinges, brackets, and motor components.
Run several complete cycles. Confirm repeatable stopping, enough traffic clearance, smooth movement, and correct safety response. Then test locks, photocells, auto-close, and emergency release.
Note： Record the final angle and bracket dimensions for future maintenance.
The operator type determines how motor movement becomes gate rotation. Each design follows a different path and has different installation limits.
A linear or push-rod operator extends between the post bracket and gate bracket. Its actuator stroke, hinge offset, and mounting dimensions control the final opening angle.
OMKER’s single-arm electric swing gate opener supports adjustable motor running time, auto-close settings, obstacle response, emergency release, and electromagnetic limit adjustment.
These controls support accurate calibration. However, they cannot correct an actuator that is too short or brackets installed in unsuitable positions.
A crank arm moves around deep pillars or offset hinges. It may suit sites where a straight actuator cannot align correctly.
However, the folded arm still needs enough rear clearance. Installers should check the complete folding path before fixing the post and gate brackets.

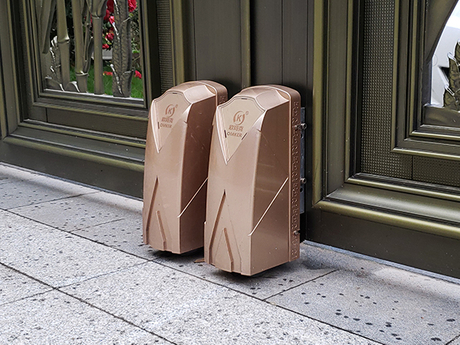

A roller operator drives the gate through a ground-contact wheel. Its travel is not limited by a traditional actuator stroke, which can support a broad opening path on suitable gates.
OMKER’s roller electric swing gate motor uses a high-friction tire, magnetic position limits, soft start, and slow stop.
It can adapt to some uneven surfaces. Larger variations should be specified before ordering because ground conditions affect traction and repeatable stopping.
Tip： Provide gate weight, leaf width, hinge offset, post depth, and target angle when requesting product selection.
The hinge, brackets, gate leaf, and operator form one mechanical system. Small changes in mounting dimensions can cause major differences at the final open position.
Measure from the hinge center to the surface holding the operator bracket. A deep setback can restrict a straight actuator and may require a longer stroke or another operator type.
The hinge center must remain the main reference point. Measuring from the edge of a wide pillar can produce an incorrect installation calculation.
Bracket spacing controls both travel and leverage. Moving a bracket may increase the angle but weaken closing force near the final position.
Follow the manufacturer’s dimensional chart. Do not copy bracket measurements from another gate unless the hinge offset, leaf width, and post dimensions are identical.
The operator must complete the movement without reaching its physical travel end too early. Increasing motor running time cannot extend a short actuator stroke or blocked arm path.
Some unused travel may be required at both ends. This helps reduce mechanical stress and supports consistent stopping.
Stops create repeatable open and closed positions. Place the open stop before any wall, fence, or other obstruction.
Integrated limit switches may control the normal stopping position. Physical stops can still improve consistency when the installation instructions recommend them.
The theoretical maximum may not work during daily operation. Ground conditions, obstacles, wind, and gate construction can all reduce the practical angle.
Map the complete swing arc. Include pillars, planters, lights, access controls, handles, and decorative parts.
Check the rear hinge area carefully. It may strike a nearby object before the leading edge reaches its final open position.
Rising ground may stop the leaf before its planned angle. Measure bottom clearance at several points across the full swing path.
Roller operators also need reliable wheel contact. Loose gravel, deep gaps, mud, or ice may affect traction and stopping accuracy.
Heavy or solid gate leaves create higher operating loads. A large solid surface may also face strong wind resistance.
Select the operator using real gate dimensions, construction, weight, and wind exposure. The opening angle alone is not enough for correct product selection.
Measure each leaf independently. One side may have a deeper post, steeper slope, or smaller sweep area.
Set the opening and closing delays only after both leaf limits work correctly. Overlapping leaves or electric locks may require a specific operating sequence.
The best setting provides safe passage without unnecessary gate movement. Many entrances gain little from using the complete physical maximum.
Draw the site to scale and mark the leaves at several angles. A partly open leaf may still project into the driveway.
Compare the remaining clear passage with the largest expected vehicle. Include mirrors and any fixed equipment near the posts.
A straight approach needs less side clearance than a curved approach. Check mirrors, trailer cut-in, rear overhang, and turning radius.
The gate must support the whole driving path. A wide entrance may still feel narrow when vehicles must turn immediately after passing the gate.
Do not design the entrance around a perfect driving line. Vehicles may enter off-center, and wind may affect gate movement.
Leave extra clearance before walls, posts, access devices, and traffic areas. A practical margin often matters more than gaining several additional degrees.
Mechanical geometry should be confirmed first. Controller settings should support the selected position instead of forcing the gate beyond its safe range.
Move the opening limit in small steps. Test the gate after each adjustment.
Stop when the gate reaches the planned angle while keeping enough clearance from nearby obstacles. Both leaves should have their limits adjusted separately.
Set enough time for the gate to reach its limit under normal load. Excess time may keep the motor pushing against a stop or travel end.
Retest the setting after changing brackets, gate alignment, limits, or accessories. Wind and temperature may also affect operating time.
Check whether the gate slows before reaching its limit. Smooth deceleration reduces shock on brackets, hinges, and the gate frame.
Test whether the gate stops or reverses when required. Never increase force simply to overcome binding hinges or poor alignment.
Set master-slave intervals after both leaf limits are correct. Run repeated cycles using remote control and auto-close commands.
Watch for leaf collisions, lock misalignment, or changing stop positions. The opening sequence should remain consistent during every cycle.
Note： Complete all safety tests before regular operation begins.
Early stopping usually has a mechanical, geometric, electronic, or environmental cause. Identify the cause before changing force settings or replacing the motor.
Compare manual and powered movement. If the leaf opens farther manually, the actuator may lack travel or suitable bracket geometry.
Review the mounting dimensions before replacing the operator. A bracket correction may recover travel, but it must preserve enough opening and closing force.
Check the opening limit, learned travel, and motor running time. A shifted magnetic or electromagnetic limit can end movement early.
Relearn the travel after changing brackets, stops, hinges, or gate alignment. The controller may not recognize a new physical position automatically.
Inspect hinges, alignment, frame condition, and ground clearance. Repair resistance before increasing motor force.
A correctly balanced gate should move smoothly by hand. The motor should automate the gate rather than compensate for mechanical faults.
Deep pillars may restrict linear arms. Limited rear space may block crank arms. Poor surfaces may affect roller systems.
A different operator can be safer than forcing the current unit beyond its intended geometry. Compare available space, target angle, gate load, and surface conditions before changing the installation.
Factor | What to Check | Effect on the Angle |
Passage requirement | Vehicle width and turning path | Sets the minimum useful position |
Hinge center | True rotation point | Provides accurate measurement |
Post setback | Hinge-to-mounting depth | Can restrict actuator geometry |
Operator travel | Stroke, arm path, or wheel movement | Sets the mechanical range |
Sweep clearance | Obstacles around each leaf | Sets the physical maximum |
Gate load | Weight, length, and wind area | Affects reliable movement |
Limit settings | Normal stop position | Sets the operating maximum |
Ground condition | Slope, clearance, and traction | May reduce practical travel |
Choose the lowest safe limit shown by the measurements. Approve it only after repeated cycles confirm smooth movement, consistent stopping, and correct safety response.
The selected angle should meet real access needs without using all available travel. A smaller, reliable angle is better than a wider setting that increases wear or creates safety risks.
The safest angle balances passage width, site clearance, gate geometry, and operator travel. FUJIAN OMKER Intelligent Technology Co., Ltd. supplies roller, linear-arm, and crank-arm solutions for varied entrances. Its products provide adjustable limits, smooth motion, safety controls, and flexible configurations. Its technical and customization services help match each opener to real access needs.
A: About 90 degrees is common, but site geometry sets the limit.
A: Mark both positions and measure from the hinge center.
A: Travel, limits, timing, brackets, or resistance may restrict it.
A: It may require different hardware, labor, or site changes.
