How fast does a barrier gate operate?

Modern perimeter control relies heavily on efficient entry management. In busy commercial facilities, residential complexes, and industrial sites, vehicle flow depends directly on hardware performance. Property managers, security directors, and system installers frequently evaluate how fast access equipment responds under heavy traffic demands. Understanding these timing variables ensures seamless operations, reduces congestion, and enhances site security.

Selecting the right equipment requires evaluating speed, durability, mechanical efficiency, and safety mechanisms. This comprehensive guide covers operating speeds, technical influences, motor dynamics, application scenarios, and maintenance strategies. By analyzing these components, facility engineers can select, configure, and maintain vehicular access control solutions optimized for both safety and maximum throughput.

What is the Typical Operating Speed of a Barrier Gate?

A barrier gate typically operates between 0.8 seconds and 6.0 seconds to fully open or close, depending on its design, boom arm length, motor configuration, and specific site application requirements.

The movement duration of any automated vehicle barrier is engineered to match its operational environment. In high-density installations such as highway toll roads or rapid-transit parking structures, high-speed mechanisms can complete an opening cycle in 0.8 to 1.5 seconds. These systems utilize lightweight aluminum or carbon-fiber boom arms to prevent excessive mechanical inertia and motor stress during rapid actuation cycles.

1. High-speed units process dense traffic streams rapidly in toll lanes and busy commercial parking garages.

2. Standard commercial models balance safety and transit speed for office parks and gated residential communities.

3. Heavy-duty industrial barrier operators control wide entry roads using longer, reinforced boom arms.

In heavy industrial settings, freight terminals, and logistics hubs, barrier arms often exceed 6 meters in length to block wide roadways. Because longer arms carry significant weight and momentum, operating speeds are intentionally governed between 4.0 and 6.0 seconds. Attempting to move a heavy barrier arm faster could damage the drive shaft, wear out the internal gearbox, or present safety risks to approaching vehicles.

To optimize site logistics and access configurations, custom solutions developed by OMKER ensure reliable cycle times without compromising hardware longevity.

To learn more about the basic mechanical setup and operational principles of vehicle control systems, explore what exactly is a barrier gate and how does it work.

What Key Factors Influence the Operating Speed of a Barrier Gate?

Operating speed is primarily governed by boom arm length, drive motor wattage, gear reduction ratios, balance spring tension, and intelligent controller acceleration programming.

Boom arm length directly affects speed settings. As a general rule, longer arms require slower operation to keep rotational force and wind resistance within safe mechanical limits. Short barrier arms generate minimal torque at the drive shaft, allowing motors to run at top speed without straining mechanical parts.

1. Motor power output and drive shaft gear ratios determine maximum rotational acceleration.

2. Properly balanced counter springs absorb static arm weight to relieve stress on internal motor gears.

3. Microprocessor control boards apply electronic soft-start and soft-stop acceleration curves.

The motor type and drive mechanism also determine operating speed. Modern systems using brushless DC electric motors or advanced hydraulic pumps deliver high torque at low speeds, enabling precise acceleration and deceleration curves. These motors allow control boards to run fast opening cycles while ramping down speed at the top and bottom of the stroke to avoid mechanical shock.

External environmental conditions also affect cycle speeds. High winds create lateral resistance on long boom arms, while extreme cold can thicken gear lubricants and slow mechanical movement. High-end barrier operators include ambient temperature compensation and load-sensing electronics that adjust motor output to maintain steady cycle times in harsh weather.

How Do High-Speed Barrier Gates Compare to Standard Models?

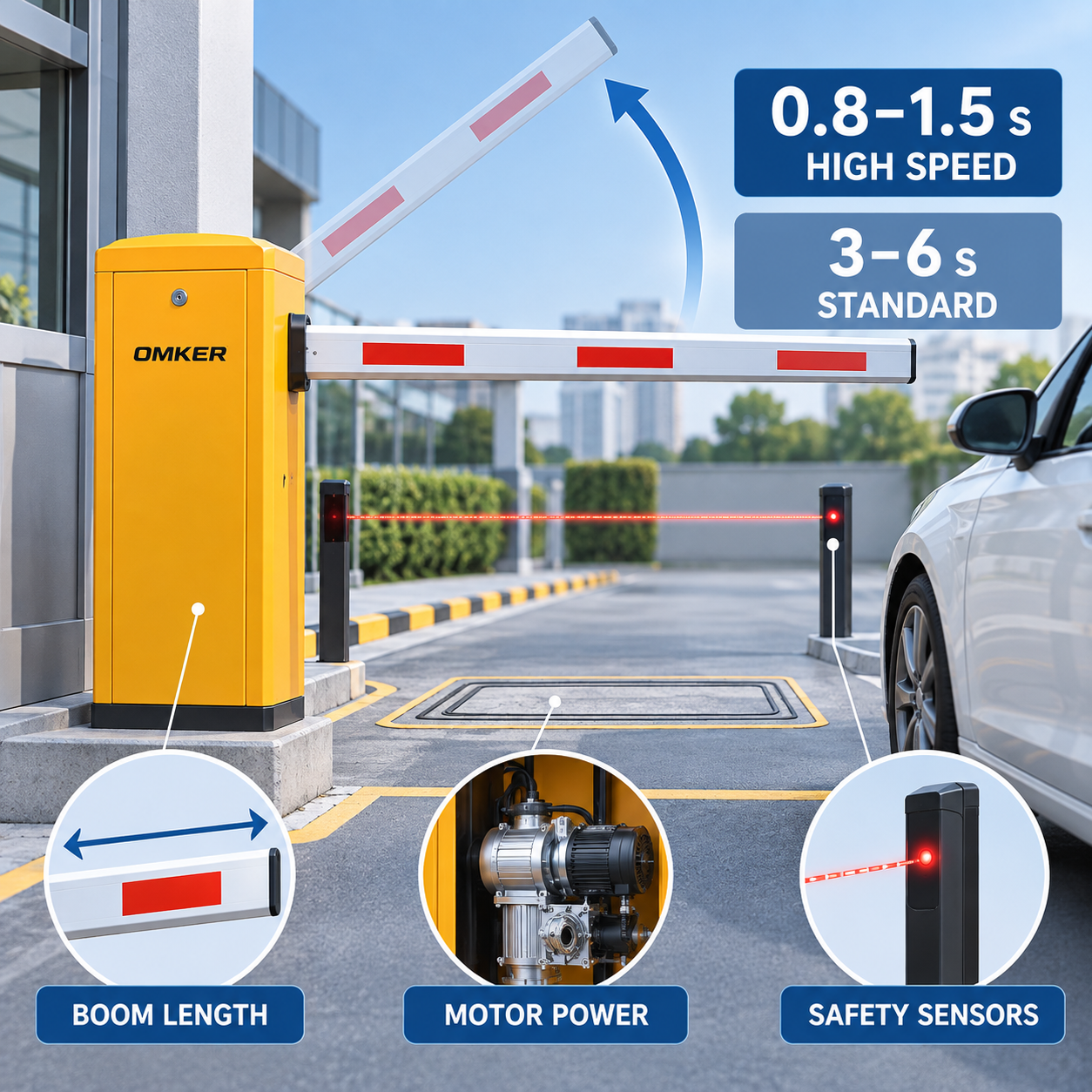

High-speed barrier gate units open within 0.8 to 1.5 seconds for rapid transit, whereas standard models operate between 3.0 and 6.0 seconds to accommodate longer arms and heavier duty cycles.

High-speed mechanisms are engineered for places where vehicle throughput directly impacts revenue or traffic safety, such as toll plazas, busy parking garages, and airport access points. These units use short, lightweight boom arms, fast gearboxes, and high-frequency inverter drives. They prioritize rapid response, quickly raising the arm as soon as an access control reader validates a credential.

1. High-speed models prioritize transit velocity using lightweight aluminum or carbon fiber arms.

2. Standard models focus on structural coverage, wind resistance, and housing heavy barrier accessories.

3. Advanced microcontrollers manage real-time motion ramps on fast systems to prevent arm bounce.

Standard barrier systems focus on flexibility, perimeter deterrence, and structural strength rather than pure speed. They are built to handle longer boom arms, LED strip lighting, top curtain fences, and bottom skirt attachments. These extra features add weight and wind resistance, requiring controlled operating speeds to preserve internal drive gears and main shaft bearings.

When choosing between high-speed and standard equipment, facility managers should weigh traffic volume against lane width and security requirements. Discover a range of options by viewing automatic barrier gates for specialized entry applications.

How Can You Adjust and Tune Barrier Gate Opening Speeds?

Operating speeds can be adjusted using DIP switch configurations on the main board, digital menu parameters, variable frequency drive settings, and mechanical spring tension adjustments.

Modern control panels allow installers to set distinct opening and closing times. Opening speed is often maximized to clear entry lanes quickly, while closing speed is set lower to give safety loops and photocells extra time to detect tailgating vehicles. Installers can easily fine-tune these parameters via digital LED menus or smartphone diagnostic interfaces.

1. Configure control board digital menu settings to adjust independent opening and closing speeds.

2. Fine-tune mechanical counter balance spring tension until the uncoupled arm rests stably at 45 degrees.

3. Set soft-start and soft-stop cushion parameters to eliminate physical arm bouncing at stroke limits.

Soft-start and soft-stop routines are vital for smooth speed tuning. Without electronic cushioning, a fast-moving boom arm will bounce violently when hitting its physical limits. Bouncing causes metal fatigue in the drive hub, weakens mounting bolts, and damages internal gears over time.

Proper spring balancing is required before making electronic speed adjustments. If the spring tension is too tight or too loose, changing board settings won't yield smooth, reliable movement. Mechanical balance should always be confirmed before adjusting drive motor speed parameters.

What Safety Mechanisms Protect Vehicles and Pedestrians at High Speeds?

High-speed safety systems rely on inductive vehicle loop detectors, photoelectric safety beams, pressure-sensitive pneumatic rubber edges, and real-time electronic torque bounce-back protection.

Fast-moving barrier arms require responsive safety devices to prevent impacts with tailgating vehicles or pedestrians. Inductive loop detectors buried in the asphalt are the primary safety mechanism. These wire loops measure changes in magnetic inductance when metal vehicles enter the lane, signaling the controller to keep the arm fully open until the vehicle clears the area.

1. Ground-embedded inductive loops keep the arm raised safely until the vehicle completely exits the lane.

2. Active infrared photocells project light beams across drive paths to trigger immediate reversal upon interruption.

3. Pressure-sensitive rubber bottom edges use internal sensors to instantly auto-reverse on physical contact.

Pressure-sensitive rubber edges run along the bottom of the boom arm to absorb physical impacts. Internal pneumatic or optical sensors inside the rubber strip trigger an immediate auto-reverse signal upon contact. Modern brushless motor drives also monitor motor current in real time—if current spikes unexpectedly due to physical resistance, the drive reverses direction within milliseconds.

Visual warning systems also improve safety around fast-moving barriers. Flashing red and green LED lights, reflective strips, and audible buzzers alert drivers to the arm's movement. These warnings give motorists time to react, lowering the risk of accidental vehicle strikes in high-traffic access lanes.

How Does Operating Speed Impact Overall Traffic Flow and Throughput?

Increasing operating speed directly increases traffic throughput, reducing vehicle queue times at entry points and preventing congestion on adjacent public roads.

Vehicle throughput measures how many cars pass through a barrier gate lane within a given timeframe. Fast cycle times prevent long queues during morning and evening rush hours. A fast opening cycle of 1.0 second allows access control systems to process up to 1,200 vehicles per hour per lane when paired with automatic number plate recognition (ANPR) or long-range RFID tags.

1. Rapid gate movement dramatically increases hourly lane capacity during peak traffic periods.

2. Minimal opening delays eliminate back-up queues near main street access points and highway off-ramps.

3. Fast closing speeds immediately following vehicle passage prevent unauthorized tailgating attempts.

Slow barrier operations can cause traffic back-ups that spill onto public streets, creating traffic hazards and driver frustration. In commercial parking operations, slow entry gates cause delays, reduce turnover, and lower daily parking revenues.

Fast-moving barriers also help curb unauthorized tailgating. When a barrier lowers rapidly behind a valid vehicle, following drivers have less opportunity to slip through without presenting credentials. Combining fast closing speeds with dual safety loops enforces credentialing while keeping authorized traffic moving smoothly.

What Motor Technologies Power Modern High-Speed Barrier Gates?

High-speed barrier systems typically use brushless DC (BLDC) motors, variable frequency drive (VFD) AC motors, or precision hydraulic pistons to deliver high torque and variable speed control.

Brushless DC (BLDC) motors are common in modern fast-operating equipment. Because they lack carbon brushes, BLDC units generate less internal friction, run cooler, and deliver continuous torque across a wide range of operating speeds. These 24V or 36V DC systems run efficiently on battery backup power, maintaining high-speed operation even during main power outages.

1. Brushless DC motors deliver high continuous torque and low heat generation for constant duty cycles.

2. Inverter-driven AC induction motors provide precise speed modulation and heavy-duty reliability.

3. Precision hydraulic actuators deliver immense mechanical force suitable for wide, reinforced barrier arms.

Variable Frequency Drive (VFD) AC motors adjust speed by modulating the frequency and voltage supplied to three-phase AC motors. VFD systems provide smooth acceleration and deceleration, reducing mechanical wear on drive gears. They excel in heavy-duty commercial facilities where barrier equipment must run continuously without overheating.

Hydraulic drive mechanisms use pressurized fluid to extend and retract drive pistons. Hydraulic systems excel at moving heavy, long, or articulated boom arms smoothly. They deliver high physical power and natural cushioning, making them popular for high-security applications that use heavy-duty or reinforced steel arms.

For insights into operational lifespans and hardware durability under continuous duty cycles, read how long do barrier gates last and what affects their lifespan.

How Do You Select the Right Barrier Gate Speed for Your Facility?

Select operating speeds by evaluating lane width requirements, peak hourly traffic volume, security control levels, and vehicle type variations.

Choosing the right equipment balance requires assessing site-specific demands. A highway toll plaza needs maximum opening speeds to keep traffic moving, while a gated community prioritize vehicle safety, quiet operation, and visual aesthetics over raw speed.

1. Measure peak hourly vehicle throughput requirements to determine target gate cycle speeds.

2. Match barrier arm physical length and weight to roadway width and wind exposure conditions.

3. Align motor operating speed with credential validation response times from access readers.

Matching credential reader performance to barrier motor speed is critical for smooth traffic flow. If a vehicle reader takes 3.0 seconds to validate an access card, installing a 0.8-second barrier gate won't meaningfully improve overall lane speed. Driveway entry systems work best when credential verification and arm movement occur simultaneously.

What Maintenance Keeps High-Speed Barrier Gates Operating Smoothly?

Routine maintenance requires inspecting spring balance calibration, checking drive belt tension, lubricating gearboxes, testing safety loops, and re-tightening mounting hardware.

High-speed operation subjects internal mechanical components to continuous dynamic stress. Over time, vibration can loosen cabinet anchor bolts, drive arm linkages, and limit switch mounts. Regular quarterly inspections ensure all mechanical fasteners stay securely tightened to factory torque specifications.

1. Re-verify counter balance spring tension quarterly to ensure optimal motor assistance during lift cycles.

2. Inspect mechanical gearboxes, drive belt alignments, and physical mounting hardware for wear.

3. Test all connected safety loops, photocells, and sensing edges to verify rapid auto-reversing response.

Counterbalance springs experience material fatigue over thousands of movement cycles. As springs stretch, the drive motor must work harder to raise the boom arm, leading to slower operation and thermal overload shutdowns. Service technicians should inspect spring tension regularly and replace worn spring sets proactively.

Electrical maintenance is equally important for long-term reliability. Technicians should inspect logic control boards for dust accumulation, check wiring terminals for tight connections, and test battery back-up systems under full load. Keeping safety sensors clean and properly calibrated prevents accidental arm drops, protects vehicles, and keeps high-speed access lanes operating reliably.
