A gate barrier arm controls vehicle access through an integrated system of electro-mechanical drive units, micro-controller processing boards, loop detectors, and access authentication devices. Upon receiving a validated entry signal, the controller energizes the motor, releasing the dynamic mechanical brake and lifting the boom arm to allow authorized passage before automatically lowering it via safety sensing feedback.
Section | Summary |
Understanding the Function of a Gate Barrier Arm | Explains the essential physical and electro-mechanical mechanisms behind automated barrier boom operations in commercial security. |
Key Components of Modern Barrier Gate Systems | Breaks down the structural, mechanical, and electronic sub-assemblies that ensure long-life cycle performance. |
Integration with Access Control Technologies | Details the hardware interface layers connecting physical barriers with RFID readers, QR code scanners, and push buttons. |
Factors to Consider When Selecting a Barrier Boom Gate System | Provides a technical decision matrix based on traffic throughput, power stability, and structural durability constraints. |
A gate barrier arm functions as a controlled physical obstruction that regulates, monitors, and verifies vehicle movement between secured and unsecure perimeters.
The primary purpose of a modern barrier system is to enforce physical compliance while maintaining predictable traffic throughput. Beyond stopping unauthorized vehicles, these systems establish a clear decision point for access credential verification. In enterprise parking facilities, toll plazas, and industrial logistics centers, the barrier arm works in tandem with downstream surveillance components to capture precise vehicular metadata upon entry and exit.
The basic mechanical sequence begins when a vehicle enters the primary induction loop zone embedded in the roadway. The loop detector senses the magnetic mass change, awakening the system controller. Once access logic validates credentials, the internal motor drives a reduction gearbox, translating high-rpm rotation into controlled shaft torque. The boom arm elevates smoothly to a 90-degree vertical position, allowing safe vehicle clearance before initiating an automated timed or sensor-triggered closure loop.
Parameter / Feature | Standard Barrier Specification | High-Speed Highway Barrier Specification |
Arm Opening Speed | 3.0 to 6.0 seconds | 0.9 to 1.5 seconds |
Duty Cycle Rating | 80% to 100% continuous | 100% continuous duty |
Operational Voltage | 220V AC / 24V DC brushless | 24V DC brushless motor |
Maximum Boom Length | Up to 6 meters | Up to 3 meters |
IP Protection Class | IP54 to IP56 | IP65 outdoor standard |

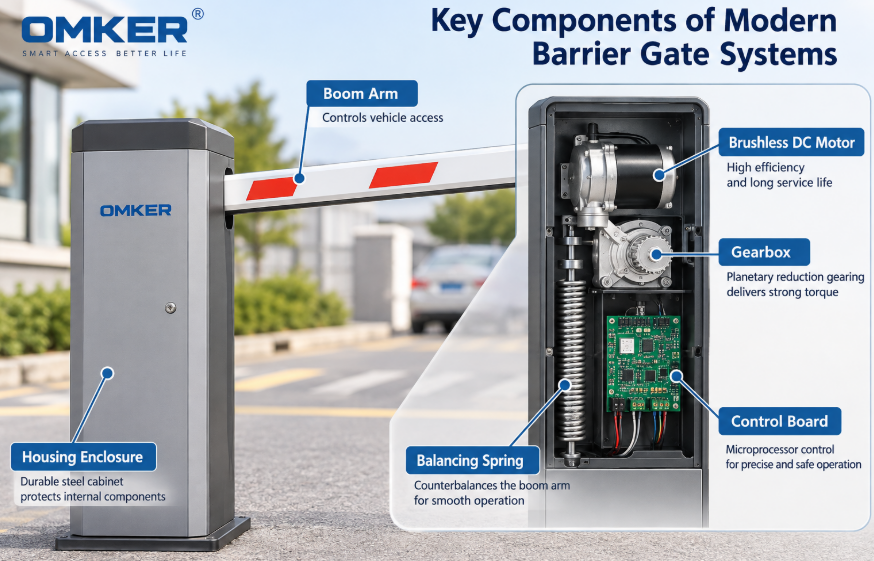

Modern barrier gate systems rely on a heavy-duty chassis housing brushless DC motors, planetary gearing, balancing springs, and main control boards.
The structural foundation of any reliable access control installation is its housing enclosure. Typically fabricated from cold-rolled steel or stainless steel treated with anti-corrosive powder coatings, the cabinet protects sensitive electronics against environmental extremes. Internally, spring balance mechanisms are calibrated against the specific mass and length of the boom arm, neutralizing static loads and minimizing kinetic effort required from the drive motor.
For heavy-duty perimeter management, selecting a robust automatic parking system straight boom barrier ensures that internal drive gears resist wear over millions of continuous cycles. Modern systems incorporate brushless motors that reduce thermal stress, eliminate carbon brush degradation, and allow digital velocity regulation. Microprocessor control boards oversee current consumption, instantly reversing arm motion if resistance indicates a physical obstruction.
Maintenance Tip: Check tension adjustment on the counter-balance spring every 500,000 cycles to prevent premature drive gear wear and motor burnout. |
Integration requires unified electronic signaling between authentication inputs, safety loops, and the main barrier control board.
RFID-based entry systems represent the standard for long-range, hands-free vehicular identification in residential and corporate facilities. An active or passive RFID reader detects the vehicle mounted transponder at a distance of 3 to 10 meters. The reader parses the encrypted payload to an access controller, which sends a dry-contact relay command to raise the barrier without requiring the driver to halt completely.
For temporary access control, such as visitor parking or commercial delivery docks, QR code scanners present a highly scalable solution. Mobile devices or printed paper vouchers present dynamic or static codes to an optical scanner mounted at driver height. The scanner converts the optical data into standard Wiegand or RS485 communication protocols, initiating barrier arm lift upon server validation.
Staff-controlled entry protocols frequently employ manual push-button stations located inside security guard houses or reception desks. These wired or wireless desktop consoles bypass automated authentication logic, granting security personnel immediate override authority. This manual layer proves vital during high-volume influx periods or emergency evacuation scenarios where barrier arms must remain locked in the open position.
Deploying comprehensive barrier arms surveillance solutions allows site administrators to pair high-definition surveillance cameras directly with barrier lift triggers for full vehicle audit logs.
Technology Interface | Primary Use Case | Communication Protocol | Typical Read Range |
UHF Active RFID | Employee Parking / Fleet Depots | Wiegand 26/34, OSDP | 3m to 12m |
QR / Barcode Scanner | Visitor Access / Commercial Lots | RS485 / TCP/IP | 5cm to 30cm |
Ground Loop Detector | Safety / Vehicle Presence | Dry Contact Relay | Physical Lane Bed |
Manual Push Button | Guard House Emergency Control | Hardwired Volt-Free Contact | Direct Console Line |

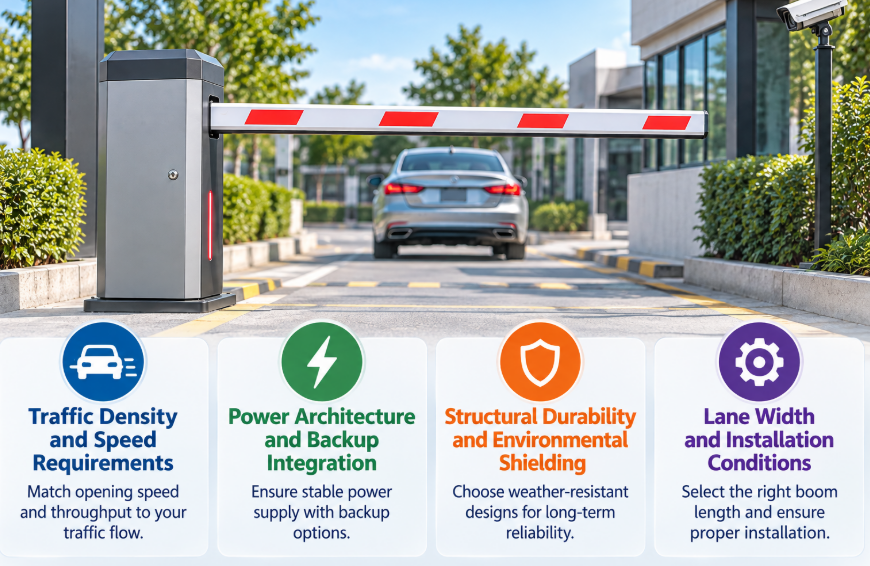

Selecting the correct barrier system depends on matching traffic density, physical lane width, power infrastructure, and environmental factors.
Traffic Density and Speed Requirements
High-throughput locations like municipal parking garages require opening speeds under 1.5 seconds to prevent traffic backup onto public roadways. Conversely, industrial premises handling wide cargo trucks prioritize longer boom arms (5 to 6 meters) with slower, high-torque actuation curves.
Power Architecture and Backup Integration
Power stability varies significantly across installation sites. System designers should prioritize 24V DC brushless configurations with integrated lead-acid or lithium battery backup modules. This design guarantees uninterrupted operation during main grid power outages without requiring heavy external UPS equipment.
Structural Durability and Environmental Shielding
Coastal installations or extreme climate regions demand specialized enclosure treatments. System enclosures constructed with weather sealing and internal heating modules prevent component condensation and corrosion in sub-zero or high-humidity environments.
Proper barrier arm gate installation demands precise foundation anchoring, correct induction loop geometry, and clean signal wiring separation to prevent electromagnetic interference.
Slow movement typically indicates improper counter-balance spring tension, insufficient voltage supply to the drive motor, or misconfigured acceleration/deceleration speed parameters on the main control board. Adjusting the spring tension to match the arm weight usually resolves speed discrepancies.
License plate recognition (LPR) cameras process vehicle plates into text data and trigger the gate via a relay output module or direct Wiegand output connected to the barrier controller’s open-signal input terminal.
Articulated or rounded aerodynamic aluminum boom arms with wind-venting profiles minimize wind resistance, reducing mechanical torque strain on the internal drive shaft during storm conditions.
A high-grade commercial barrier gate system equipped with a brushless DC motor and planetary gearbox offers an operational lifespan of 3,000,000 to 5,000,000 mean cycles between failure (MCBF) when serviced regularly.
