A drop arm barrier is a specialized perimeter control mechanism that utilizes a pivotable rigid beam to regulate vehicular flow at restricted entry checkpoints. Operating through an electro-mechanical drive assembly, the system delivers high-speed access authorization, forced-entry resistance, and seamless integration with credential reading networks to protect sensitive commercial and industrial facilities.
Section | Summary |
Understanding Drop Arm Barriers and Their Role in Security | Defines drop arm security equipment and details their role in perimeter protection and traffic management. |
How Drop Arm Barriers Operate to Control Vehicle Access | Analyzes the electro-mechanical drive cycle, speed regulation, and credential signaling pathways. |
Core Components of a Drop Arm Barrier System | Examines the internal engine, chassis, spring counterbalances, and logic controllers. |
Safety Features and Operational Reliability | Details photoelectric sensors, loop detectors, fail-safe mechanics, and physical enclosure protections. |
Security Applications and Ideal Deployment Scenarios | Outlines high-traffic commercial, industrial, and high-security deployment environments. |
Comparing Drop Arm Barriers with Other Access Control Solutions | Contrasts performance metrics across bollards, sliding gates, and drop arm mechanisms. |
Reliable Vehicle Access Control with Drop Arm Barrier Technology | Summarizes core selection criteria and long-term operational advantages for modern site security. |
A drop arm barrier is a physical vehicular gate designed to intercept, delay, and regulate incoming vehicle movement at secure perimeter boundaries.
Physical security infrastructure relies heavily on automated access points to enforce boundary control. In modern perimeter management, a barrier gate serves as the primary physical checkpoint between unauthorized public roadways and restricted facility premises. Unlike traditional manual gates, an automated barrier gate provides instantaneous physical access restriction while maintaining continuous communication with site management software.
Industrial security planners select a barrier gate setup because it provides clear visual deterrence alongside physical vehicle denial. These physical mechanisms manage vehicular velocity and verify digital credentials prior to granting passage. Implementing a heavy-duty barrier gate reduces the threat of unauthorized vehicle tailgating and unauthorized access into sensitive zones.
Modern physical perimeters integrate automated physical barriers directly into broader facility management frameworks. This integration ensures complete audit trails of vehicle entries and exits, supporting site safety protocols and security compliance standards.
A drop arm barrier operates through an integrated electro-mechanical sequence triggered by access control credentials to actuate a rotating horizontal boom.

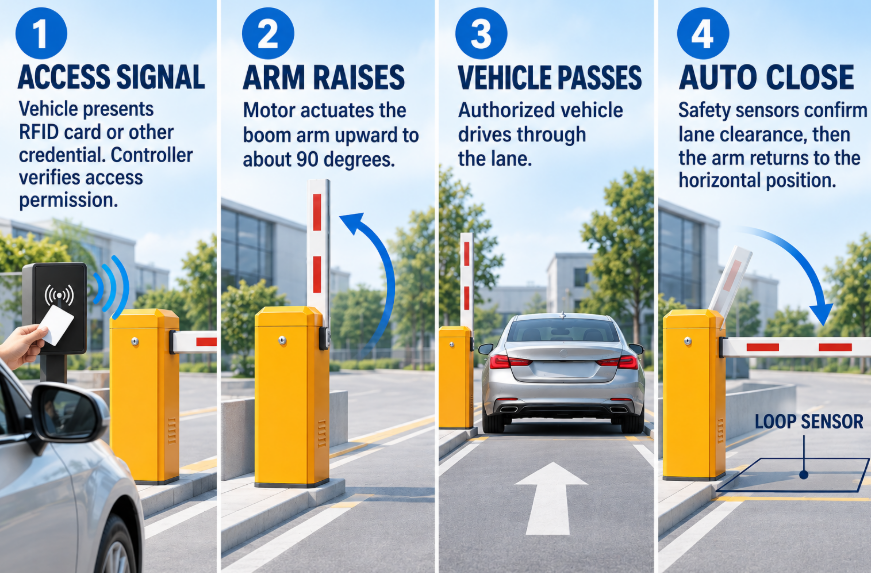

The operational cycle of an automated barrier gate begins when an approaching vehicle triggers an embedded inductive loop detector or presents an RFID credential. The central logic board processes this input signal, verifies access permissions, and instructs the internal motor drive to energize. To explore complete hardware setups for high-density entry lanes, review our guide on the Automatic Barrier Gate for Efficient Traffic Control.
Once energized, the motor turns a balanced mechanical linkage that transforms high-speed rotational energy into smooth, torque-controlled beam movement. The rigid arm rotates upward to a full ninety-degree vertical position, opening the drive lane for the authorized vehicle. Variable frequency drives and brushless DC motors ensure acceleration and deceleration curves remain smooth, preventing mechanical bounce at the top of the travel stroke.
After the vehicle crosses the entry threshold, secondary safety sensors confirm lane clearance before signaling the controller to drop the arm. The motor reverses direction, returning the beam to its horizontal resting state across the roadway.

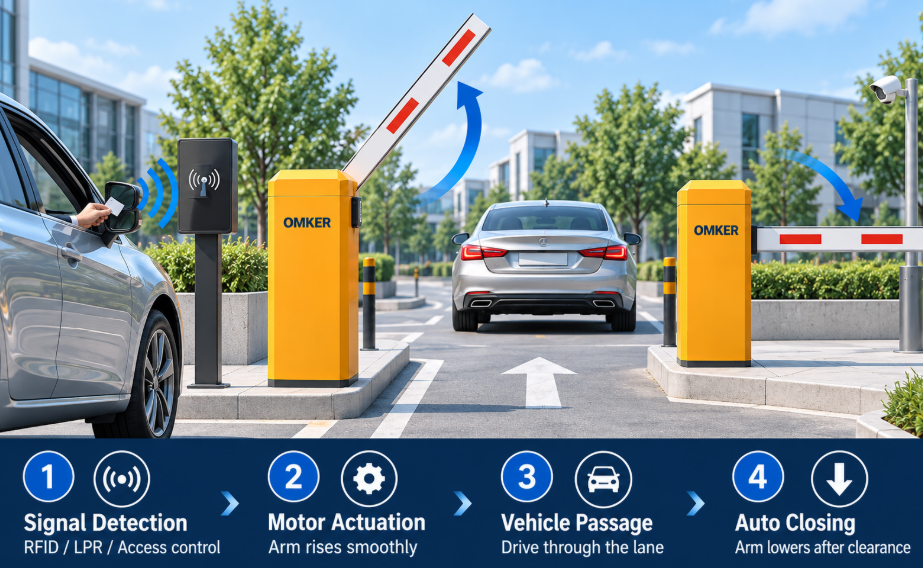

Signal Acquisition: The logic controller receives a dry-contact or digital signal from an RFID reader, license plate recognition system, or manual push-button station.
Clearance Validation: Safety circuits verify that the perimeter beam pathway is clear of pedestrians, static obstacles, and trailing vehicles.
Mechanical Actuation: The engine drives the mechanical linkage, elevating the main horizontal beam smoothly within designated duty-cycle parameters.
Auto-Closing Sequence: Once safety loops detect that the vehicle rear bumper has cleared the travel plane, the controller immediately lowers the arm to prevent tailgating.
The core components of a drop arm barrier include the structural chassis, drive motor, planetary gear reducer, counterbalance spring assembly, main beam, and programmable logic controller.
At the heart of every physical perimeter deployment are heavy-duty barrier gate operators and mechanisms. These mechanical assemblies convert electrical energy into repeatable rotational force required to move heavy structural arms over millions of continuous duty cycles. The internal motor must produce sufficient torque while operating alongside a tuned tension spring assembly that neutralizes the gravitational weight of the external arm.
The internal control panel governs all system actions, managing motor voltage, limit switches, obstruction detection logic, and external peripheral communications. High-grade systems house these barrier gate operators and mechanisms inside weatherproof steel cabinets treated with anti-corrosion primers and specialized powder coatings to withstand harsh outdoor environments.
To maintain structural integrity during impact or extreme weather, the outer chassis features heavy-gauge cold-rolled steel or stainless steel casing. The internal components are arranged systematically to allow field technicians fast access during scheduled maintenance inspections.
Safety features in drop arm barriers combine active sensors, passive physical protection, force detection algorithms, and manual overrides to prevent injury and property damage.
Deploying a powerful barrier gate into public or commercial traffic lanes requires strict adherence to safety engineering standards. Active safety relies on dual-channel inductive loop detectors cut into the asphalt underneath the arm path. These loops detect metal vehicle bodies and hold the barrier gate in the fully open position until the vehicle completely exits the detection zone.
Complementing loop detectors, infrared photoelectric safety beams project a continuous light band across the driveway lane. If an object, pedestrian, or vehicle breaks this optical beam while the arm is lowering, the controller instantly stops motion and reverses the arm back to the upright position. Advanced systems also feature intelligent auto-reverse motor sensing that monitors current draw to detect mechanical resistance immediately.
Modern physical security installations frequently combine automated barriers with specialized parking management components. For detailed technical specifications on integrating automated boom arms into commercial site layouts, examine the Automatic Parking System Straight Boom Barrier.
In the event of complete facility power loss, integrated mechanical fail-safe systems ensure site security is not compromised. Internal mechanical clutches allow security personnel to manually raise or lower the boom arm using an emergency key release. Alternatively, integrated back-up battery systems automatically lift the arm upon power failure to satisfy municipal fire code requirements.
Key Safety Mechanisms:
Inductive Safety Loops: Embedded roadway wire coils that sense vehicle mass and lock out close signals.
Photoelectric Beams: Cross-lane infrared light sensors that trigger an instant reverse if interrupted.
Impact Detection Motors: Drive units that sense physical resistance and reverse within milliseconds.
Rubber Impact Strips: Soft neoprene bottom cushions that protect vehicle finishes during accidental contact.
Emergency Manual Release: Mechanical key override enabling manual arm rotation during power loss.
Maintenance Note: Inspect spring tension counterbalance balance every 100,000 cycles. Imbalanced counterweights force the motor to work harder, generating excessive heat and shortening the lifespan of the internal gearbox drive. |
Drop arm barriers are ideal for high-traffic entry control points requiring fast duty cycles, active perimeter protection, and clear lane discipline.
Industrial facilities, logistics parks, and commercial complexes use automated entry control systems to organize heavy vehicle movements. High-throughput commercial sites demand an automated barrier gate capable of handling thousands of open-close cycles daily without thermal overload. Installing an industrial-grade barrier gate ensures smooth vehicle processing during peak morning and evening commute times.
High-security environments such as government facilities, military bases, and data centers utilize drop arm barriers as part of a multi-layered defense strategy. In these critical perimeter deployments, the drop arm mechanism is often paired with automated crash bollards or tire shredders to create an impenetrable vehicle airlock zone.
When specifying entry control systems for overseas markets, engineering requirements shift significantly. For example, European enterprise clients prioritize brushless DC drive units paired with integrated variable-speed controllers. European operational standards favor energy-efficient motors that generate minimal heat, run quietly, and provide soft-start and soft-stop physical braking curves to preserve mechanical component life.
Industry Sector Deployment Profiles:
Industrial Warehouses: Focuses on freight traffic management using heavy-duty arms with high wind resistance.
Commercial Parking: Prioritizes revenue protection and ticket control via continuous duty motors with fast cycle speeds.
Government & Defense: Emphasizes forced-entry deterrence through reinforced internal cable cores and anti-crash ratings.
Residential Communities: Focuses on unauthorized visitor prevention using low-noise operation integrated with RFID networks.
Drop arm barriers offer faster operation speeds and higher duty cycles than sliding gates, while providing broader physical lane coverage than bollard systems.
Facilities choosing a vehicular access system must balance opening speed, structural footprint, maintenance cost, and physical crash resistance. Industrial barrier gate operators and mechanisms are designed specifically for high-speed lane regulation, making them far superior to sliding or swing gates in high-traffic applications. While a sliding gate may require 15 to 30 seconds to open, a barrier gate clears the vehicle lane in under two seconds.
Bollards excel at high-impact vehicle mitigation, but they lack the immediate visual lane blocking provided by a full horizontal beam. Additionally, hydraulic bollards require deep excavation and extensive civil engineering work, leading to significantly higher total cost of ownership compared to surface-mounted barrier pedestals.
Cycle Speed: Drop arm mechanisms actuate in 1.0 to 3.5 seconds, whereas sliding gates require 15 to 30 seconds for complete opening.
Installation Complexity: Barrier pedestals install on standard reinforced concrete pads without deep trenching or subterranean drainage.
Maintenance Requirements: Simple spring balances and direct-drive gearboxes lower long-term preventative maintenance labor costs.
Footprint Efficiency: Vertical arm rotation conserves horizontal perimeter space, allowing tight multi-lane installation layouts.
Selecting a high-quality drop arm barrier ensures long-term operational efficiency, continuous lane security, and minimal site maintenance overhead.
Modern perimeter security relies on robust, repeatable, and intelligent physical infrastructure. Integrating a high-performance barrier gate into your facility entry points provides instantaneous vehicle control, deters unauthorized access, and structures traffic movement without creating bottlenecks. By selecting heavy-duty barrier gate operators and mechanisms, site managers protect their long-term infrastructure investment while maintaining strict security compliance.
When selecting an automated barrier system, evaluate the total weight of the internal gear assembly, the insulation class of the motor, and the housing IP rating. Prioritizing high-grade brushless motor technology, precision counterbalance spring systems, and comprehensive safety sensor loops guarantees smooth facility entry operations for years to come.
Final Equipment Selection Checklist:
Duty Cycle Requirements: Verify the motor rating matches your site's peak hourly vehicle count.
Arm Style Configuration: Choose straight boom, folding articulated boom, or fence-equipped arms depending on vertical ceiling clearances.
Climate Considerations: Specify internal cabinet heaters or cooling fans for sites exposed to extreme weather conditions.
Safety Sensor Layers: Always install both inductive loop detectors and optical safety beams to protect vehicles and pedestrians.
