A sliding gate opener works by converting rotational kinetic energy from an electric motor into linear horizontal force via a drive gear that engages with a matching gear rack or roller chain attached along the lower span of the gate panel, thereby propelling the gate open or closed along a tracking system guided by intelligent electronic control boards.
To fully comprehend the strategic value of choosing a high-grade automation setup, procurement managers and security engineers must inspect how these systems achieve consistent duty cycles under demanding conditions. By analyzing the structural components, step-by-step electronic signal pathways, and protective sensory arrays built into these drive systems, you can easily implement an optimized access control plan that protects assets, improves traffic flow, and guarantees decades of maintenance-free operability.
The following sections provide an exhaustive technical breakdown of modern driveway barrier automation:
The Core Mechanism of a Sliding Gate Opener
Key Components of Industrial Slide Gate Operators
The Step by Step Operational Process of Automatic Gates
Technical Specifications and Product Selection Criteria
Crucial Safety Features and Troubleshooting Guidelines
Strategic Benefits of Advanced Slide Gate Operators
Conclusion
The fundamental mechanical operational principle of a sliding gate opener revolves around the continuous conversion of electrical energy into precise horizontal linear force through a rigid gear-to-rack mesh interface or an high-tension roller chain system driven by an internal motor.
At the center of every automated perimeter system is the conversion of high-speed, low-torque rotational movement from an AC or DC electric motor into low-speed, high-torque linear motion. This process begins the moment the internal control board delivers power to the motor windings. Because standard electric motors spin at velocities far too high for direct gate engagement, the rotational output is immediately routed through an integrated gear reduction box. This gearbox typically features worm gears or planetary gear systems submerged in an oil bath or coated in high-viscosity synthetic grease to reduce friction, eliminate mechanical wear, and exponentially multiply the output torque needed to overcome the static inertia of heavy steel gate structures.

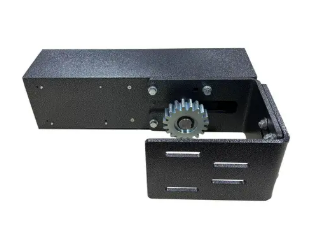

Once the torque is multiplied, it is transmitted to an external drive component, most commonly a hardened steel pinion gear or a heavy-duty drive sprocket. In a standard rack-and-pinion configuration, this external pinion gear meshes directly with a continuous linear gear rack that is bolted or welded along the entire horizontal length of the gate panel. As the pinion rotates clockwise or counterclockwise, its teeth lock into the gear rack, smoothly forcing the gate to slide along its tracks. In alternative chain-driven configurations, the sprocket drives a continuous loop of industrial roller chain fixed to both ends of the gate frame, pulling the gate back and forth across the driveway opening with equal precision and stability.
Furthermore, the physical motion must be meticulously guided to maintain absolute alignment and minimize structural friction. The gate panel itself is supported by heavy-duty bottom wheels that ride on an inverted V-track or round track anchored securely into a concrete foundation across the driveway. For properties where a ground track is impractical due to snow, ice, debris, or heavy vehicular traffic, a cantilever system is utilized. In a cantilever design, the gate is suspended over the driveway, supported by internal roller assemblies enclosed within a specialized bottom track. Regardless of whether a tracked or cantilever design is used, the heavy-duty sliding gate opener provides the controlled, relentless linear force required to move the barrier smoothly through its designated travel path.
Industrial slide gate operators are highly complex electromechanical assemblies comprised of heavy-duty electric motors, intelligent electronic control boards, precise mechanical limit switches, durable drive pinions, and weatherproof protective enclosures engineered to withstand decades of continuous exposure.
To ensure absolute operational reliability in high-traffic commercial zones and demanding industrial environments, every single component inside the operator must be manufactured to rigorous engineering tolerances. The prime mover in these systems is either an alternating current (AC) motor, ideal for extremely massive gates that require raw continuous power, or a direct current (DC) motor, which provides unparalleled control over speed curves, facilitates soft-start and soft-stop routines, and easily integrates with battery backup systems. These motors are paired with advanced solid-state control boards that act as the central nervous system of the apparatus, processing inputs from loop detectors, remote controls, card readers, and safety sensors while monitoring real-time electrical current draw to detect mechanical obstructions.
Another critical structural element within modern industrial slide gate operators is the limit switch assembly, which tells the control board exactly when the gate has reached its fully open or fully closed positions. These can be physical mechanical micro-switches tripped by a metallic striker plate attached to the rack, or advanced magnetic proximity sensors that detect polarized magnets without physical contact, entirely eliminating mechanical wear and vulnerability to freezing temperatures or dirt accumulation. Below is a comprehensive architectural breakdown of the core internal components that dictate the performance and longevity of these premium gate automation units:
Electric Drive Motor: Available in 24V DC, 110V AC, or 230V AC configurations, generating the primary rotational torque needed to initiate movement.
Intelligent Logic Controller: Microprocessor-driven motherboard that manages system programming, safety configurations, timing delays, and external accessory integration.
Gear Reduction Assembly: Hardened alloy steel or bronze gear sets that drop rotational speeds while drastically multiplying output force.
Manual Release Clutch: A keyed mechanical override system that disconnects the gearbox from the drive pinion, enabling manual gate movement during total power blackouts.
Weatherproof NEMA Enclosure: High-impact UV-stabilized ABS or die-cast aluminum housings rated IP54 or higher to isolate delicate electronics from rain, dust, and corrosive airborne elements.

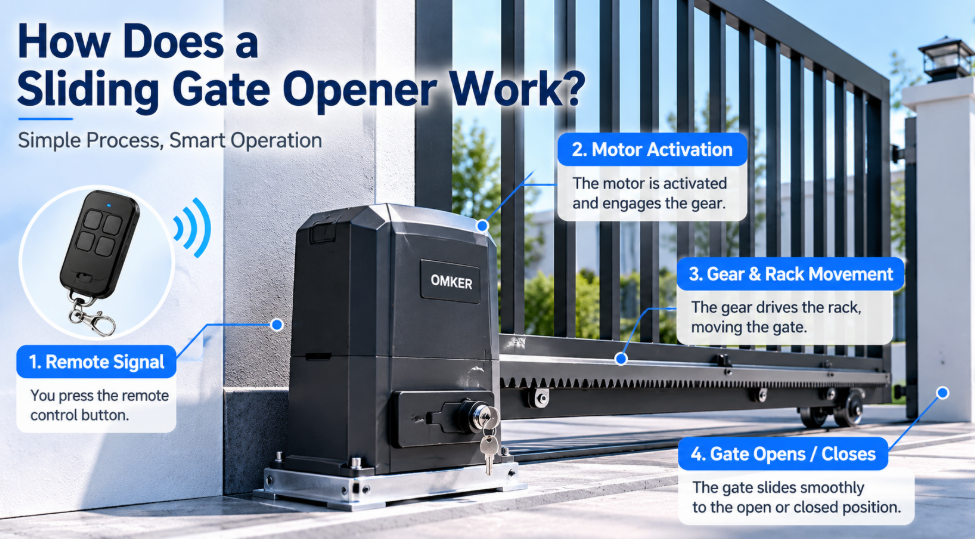

The sequential operation of modern slide gate operators involves a highly coordinated chain of wireless command reception, electronic power distribution, controlled acceleration, constant safety monitoring, and precise mechanical deceleration to ensure seamless perimeter control.
The entire operational cycle begins when an authorized user interacts with an access control interface, such as a long-range wireless remote control, a smartphone application, a RFID proximity card reader, or an underground vehicle induction loop detector. This device sends an electrical impulse or a secure, rolling-code radio frequency signal to the integrated receiver module on the logic control board. Upon verifying the security credentials or signal validity, the microprocessor immediately wakes from its standby mode, runs a instantaneous internal safety diagnostic check, and energizes the main power relays or solid-state MOSFETs to direct electrical current to the drive motor windings.
Once power is delivered, the system initiates its soft-start phase. Instead of slamming the gate with immediate maximum torque—which would cause severe mechanical shock to the gear teeth, loosen mounting bolts, and shorten the lifespan of the gate structure—the control board gradually increases the voltage or modulates the frequency to accelerate the gate smoothly up to its maximum rated travel speed. During this mid-travel phase, the control board continuously samples data from an integrated digital encoder or counts pulses from the motor rotation to precisely track the gate's physical position down to the millimeter across the driveway span.
As the gate panel nears the end of its physical travel path, the system enters its final phase. The control board reads the oncoming limit switch signal or recognizes the pre-programmed deceleration point via its internal encoder data. It then transitions the motor into a soft-stop routine, steadily decreasing the current to slow the gate down to a gentle crawl just before it reaches the physical stop post. This prevents destructive structural impacts and ensures the gate locks securely into its receiving catch. However, if the gate ever stops responding correctly or experiences an electrical corruption mid-cycle, operators must know how to reset gate opener electronics to recalibrate the travel limits and restore safe, automated functionality to the entrance barrier.
Selecting the appropriate automated drive system requires a meticulous evaluation of core engineering parameters including maximum weight capacity, linear travel speed, daily duty cycle ratings, and specialized electrical power requirements.
When procurement managers specify a automation system for a commercial project, matching the machine's technical specifications to the physical realities of the site is critical to avoiding premature mechanical failure. The first metric to evaluate is the maximum gate weight capacity, which must always include a significant safety margin to account for wind resistance, friction accumulation over time, and potential structural sagging. Residential gate operators are typically rated for gates ranging from 300kg to 800kg, whereas heavy-duty industrial models can easily manipulate colossal perimeter barriers weighing upwards of 2000kg to 4000kg with absolute ease.
Another indispensable metric is the duty cycle rating, which defines the percentage of time the operator can run continuously without overheating its motor coils or tripping its thermal overload protection switches. Residential systems often feature a 30% to 50% duty cycle, meaning they are designed to rest between intermittent operations. Conversely, high-frequency commercial installations, such as airport security gates or busy distribution hubs, require a 100% continuous-duty cycle rating, utilizing brushless DC motors and oil-cooled gearboxes to run non-stop 24 hours a day. The table below outlines the core specifications found across premium commercial and residential drive units:
Technical Parameter | Residential Class Units | Commercial/Industrial Class Units |
Maximum Gate Weight Capacity | 500 kg to 800 kg | 1500 kg to 4000 kg |
Linear Moving Speed | 10 to 12 meters per minute | 12 to 20 meters per minute (High Speed) |
Motor Type Configuration | 24V DC Brush Motor | Three-Phase AC or Brushless DC Motor |
Duty Cycle Rating | Part-Time (30% to 50%) | Continuous (100% Duty Cycle) |
Ingress Protection Rating | IP54 Weatherproof | IP67 Heavy-Duty Submersible-Grade Isolation |
Backup Power Integration | Optional Dual 12V Batteries | Standard High-Capacity Intelligent UPS System |
In addition to weight and duty cycle, environmental factors such as ambient temperature variations and wind loading must guide your selection process. Solid panel gates act like giant sails in high wind conditions, placing immense lateral stress on the gate tracks and dramatically increasing the torque required to move them. Therefore, industrial operators must be chosen with oversized power reserves and adaptive electronic current-sensing capabilities to dynamically adjust force curves when fighting high wind resistance or minor track obstructions without falsely triggering safety auto-reverse sequences.
Modern gate automation regulations demand the mandatory integration of multi-layered safety mechanisms including photoelectric through-beam sensors, active contact safety edges, and highly responsive electronic current-reversal algorithms to prevent vehicular damage and personal injury.
Because an automated gate can weigh several tons and moves with substantial mechanical momentum, safety is the single most important aspect of system design and installation. The primary line of defense against entrapment is the non-contact photoelectric sensor array. These sensors project an invisible infrared light beam across the driveway opening directly in the path of the gate line. If a vehicle, pedestrian, or animal breaks this infrared beam while the gate is closing, the control board instantly halts forward motion within milliseconds and reverses the motor direction to return to the fully open position, avoiding any physical impact.
Complementing these optical sensors are active pressure-sensitive rubber edges mounted to the leading and trailing vertical edges of the gate frame. If these edges make physical contact with an object, an internal conductive strip immediately sends an emergency stop signal to the processor. In addition to these external accessories, the logic board itself constantly monitors the motor's back-EMF or current draw. If the current spikes unexpectedly above a pre-calibrated threshold—indicating that the gate has struck a physical obstruction—the system executes an immediate safety reversal. However, if a severe electrical storm or improper user programming corrupts these safety thresholds, maintenance teams must understand the exact procedure on how to reset automated safety parameters to safely recalibrate the machine and ensure it complies with modern UL325 or EN12453 safety standards.
Verify Main Power Ingress: Check that the primary circuit breaker is engaged and that the transformer is outputting the correct low-voltage or high-voltage readings to the logic board.
Inspect Photoelectric Beam Alignment: Clean the optical lenses of all dust, cobwebs, or moisture, and verify that the alignment LED indicator on the receiver module is glowing solid green.
Examine Mechanical Track Integrity: Manually disengage the drive clutch and slide the gate by hand to check for warped tracks, crushed roller wheels, or stones wedged in the V-groove.
Test Electronic Limit Proximity: Ensure the limit magnets or micro-switch striker plates are positioned correctly and are clearing the sensor face by the recommended distance of 5 to 10 millimeters.
Integrating a premium slide gate automation system delivers unmatched advantages in site security amplification, optimized space management, enhanced convenience, and long-term asset value enhancement.
For commercial enterprises, industrial facilities, and high-end residential complexes alike, the installation of an advanced perimeter automation framework provides a powerful psychological and physical deterrent against unauthorized access, vandalism, and cargo theft. By ensuring that the entry boundary remains locked and closed at all times except when an authorized vehicle is actively passing through, these systems close critical gaps in facility security layouts. Furthermore, because sliding gates retract parallel to existing fence lines, they do not consume valuable parking space or turn-around areas inside the driveway, allowing facilities to utilize every square meter of their property layout effectively.
Maximum Perimeter Security: Rigid mechanical locking through the gear-to-rack mesh ensures the gate cannot be easily forced or pried open by intruders.
Optimized Spatial Efficiency: Ideal for tight urban environments or narrow driveways since the gate moves laterally along the fence boundary without swinging outward.
All-Weather Reliability: Heavy-duty internal drive components operate flawlessly in heavy rain, extreme sub-zero winter freezes, and blistering desert heatwaves.
Seamless Access Integration: Connects easily to modern smart building systems, biometrics, automatic license plate recognition cameras, and cloud-based logging software.
From an operational standpoint, the convenience and efficiency gains provided by high-quality slide gate operators cannot be overstated. Logistics managers can automate delivery bay access, allowing freight trucks to enter smoothly without forcing security guards or truck drivers to step out into hazardous weather conditions to manually clear the path. Over time, the reduced labor requirements, eliminated security vulnerabilities, and enhanced curb appeal contribute to a substantial return on investment, while simultaneously boosting the overall market value and professionalism of the real estate asset.
The automated sliding gate opener represents an exceptional fusion of mechanical power, electronic precision, and strict safety engineering, working together to deliver reliable and secure perimeter access control for modern properties.
By understanding the intricate mechanics of gear reduction, the crucial role of intelligent control microprocessors, and the critical need for comprehensive safety sensor networks, industrial buyers and property owners can make informed procurement decisions. Investing in a high-grade slide gate automation framework ensures that your physical perimeter remains uncompromised while facilitating the smooth, efficient flow of authorized vehicular traffic for years to come.
