Designing residential & industrial sliding gate operators involves selecting appropriate motor power, drive mechanisms, duty cycle ratings, structural housings, and advanced control boards tailored specifically to gate mass, opening frequency, and safety standards.
Section | Summary |
Benefits of industrial sliding gate designs | Industrial sliding gate designs prioritize duty cycles, continuous operation capability, high physical security, perimeter protection, and high-torque mechanical components to withstand extreme environmental stress. |
Sliding gate design details: technical specifications to consider | Key technical specifications include drive system mechanism, AC or DC drive power, max gate weight capacities from 1200KG to 5000KG, duty cycles, and integrated safety controls tailored for project requirements. |
Power supply options for gate operators | Gate operators utilize various power sources including AC high-torque systems, low-voltage DC with battery backup, and hybrid solar configurations to guarantee continuous operational performance. |
Types of industrial gate design: comparing modern solutions | Industrial installations leverage specialized drive transmission methods including rack and pinion systems and chain-driven mechanisms to handle specific gate weights and operational environments. |

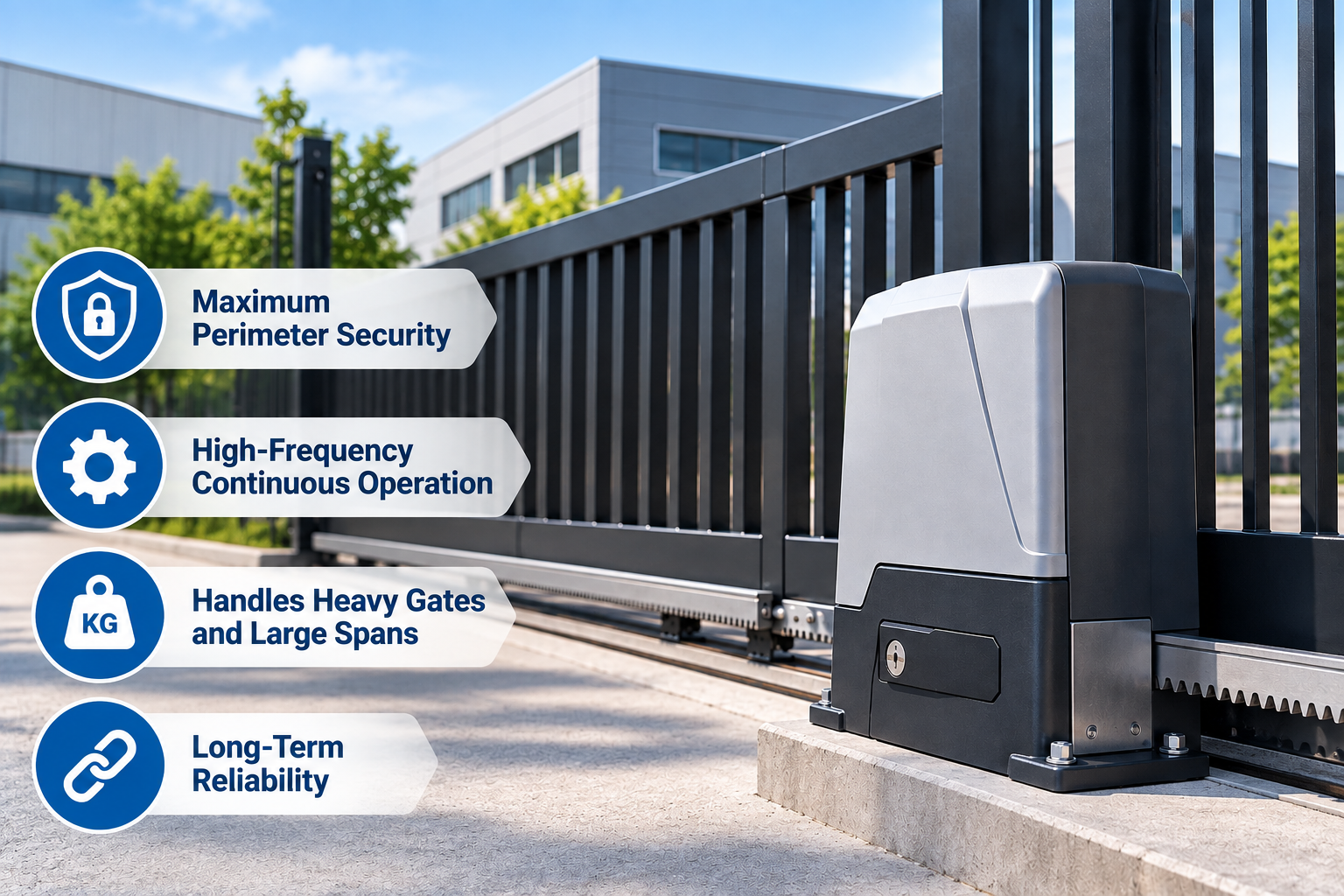

Industrial sliding gate designs deliver long-term reliability, maximum perimeter security, continuous high-frequency operation, and robust resistance against heavy physical impact.
When engineering an industrial sliding gate system, structural integrity takes precedence over compact sizing. Commercial facilities demand perimeter barriers that operate continuously without overheating or mechanical fatigue. By specifying heavy-duty internal gears and reinforced enclosures, industrial designs ensure uninterrupted security for logistics centers, factories, and commercial hubs.
High Frequency Duty Cycles
Unlike residential setups that operate a few times daily, industrial operators manage hundreds of cycles per day. High duty cycle ratings are achieved by integrating heavy-duty motors, oil-bath gearboxes, and superior thermal management systems that prevent thermal overload shutoff during peak traffic hours.
Enhanced Physical Perimeter Security
Industrial sliding gates serve as physical barriers against unauthorized vehicle entry. Industrial operators incorporate high holding torque and self-locking worm gearboxes that resist powerful manual force, eliminating the need for additional mechanical locks on large perimeter openings.
Adaptability to Heavy Weight and Large Spans
Industrial sliding gate drives are engineered to transport gate leaves weighing thousands of kilograms across wide driveway openings. Reinforced internal drive shafts and heavy-duty bearings prevent structural deflection and ensure linear movement across extended continuous operations.
For industrial environments demanding heavy-duty operation and continuous cycle durability, evaluating heavy-duty sliding gate operators ensures proper torque transmission, long-term mechanical stability, and full compliance with commercial safety regulations.
Maintenance Notice: Industrial operators require scheduled gearbox lubrication checks, limit switch calibration, and alignment inspections every six months to prevent premature gear wear and ensure continuous operational safety. |
Key technical specifications include motor power voltage, rated drive torque, max gate weight classification, drive mechanism selection, duty cycle capabilities, and intelligent safety controls.
Engineers and facility managers must evaluate structural gate mass, driveway opening width, and daily operational frequency before selecting a drive unit. Gate drive selection is categorized by drive mechanism (rack and pinion versus chain arm), drive power type (AC versus DC supply), and heavy-duty load capacity ratings spanning from light commercial boundaries to extreme industrial security perimeters. Proper selection ensures smooth operation, continuous performance, low noise output, and complete operational safety.

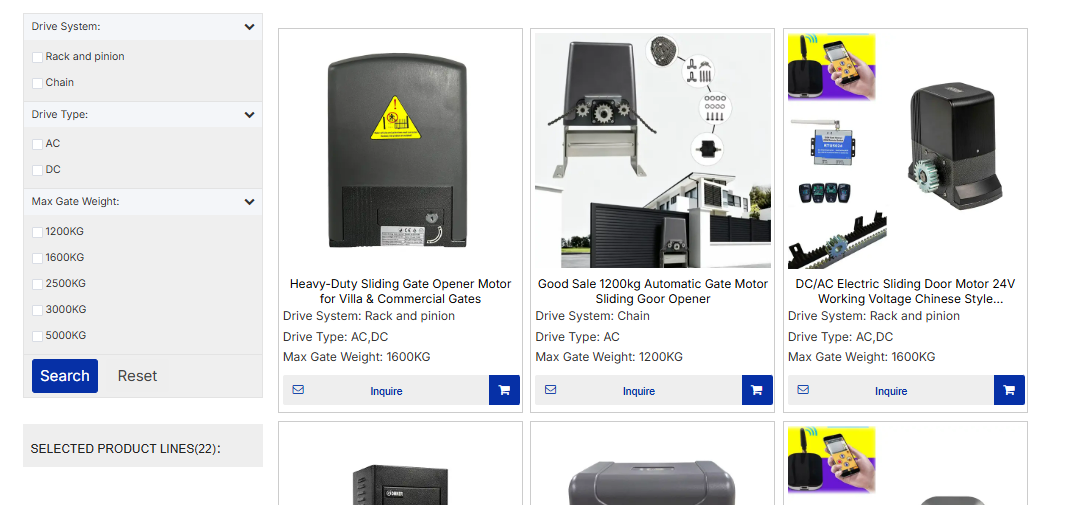

To explore specific product models, filter drive parameters, and find the exact solution for your project, visit our complete range of sliding gate openers to match your preferred technical specifications.
https://www.omker.com/silding-gate-opener.html
Technical Parameter Category | Light Commercial / Heavy Residential | Heavy Industrial & High-Security |
Max Gate Weight Tiers | 1200KG / 1600KG | 2500KG / 3000KG / 5000KG |
Drive Mechanism Options | Rack and Pinion Drive | Rack and Pinion / Chain Arm Drive |
Drive Power Supply | 24V DC / 110V-220V AC | 220V AC / 380V Three-Phase AC |
Operational Characteristics | Low noise, energy-efficient, soft-start/stop | High-torque, continuous duty, extreme load capacity |
Emergency Power Option | Battery Backup Supported (DC Models) | Mains Power / Generator / Industrial UPS |
Ideal Applications | Large residential entryways, light commercial | Factories, logistics hubs, high-security perimeters |
Drive mechanisms are engineered to handle distinct structural requirements. Rack and pinion sliding gate operators deliver smooth mechanical transmission, precise stopping accuracy, and reliable day-to-day operation along straight gate frames. Alternatively, chain arm sliding gate operators provide exceptional structural adaptability and persistent pulling power, making them ideal for heavy, versatile gate structures operating in challenging outdoor environments.
Drive motor selection balances operational speed with continuous load duty cycles. AC sliding gate operators supply heavy-duty power and continuous performance tailored for high-frequency usage and massive industrial gate leaves. Meanwhile, DC sliding gate operators deliver ultra-smooth running, quiet motor operation, high energy efficiency, and full support for battery backup systems to preserve full perimeter security during power grid outages.
Weight capacity ratings directly determine gearbox casing strength and motor power sizing. Gate installations up to 1200KG and 1600KG provide the perfect balance of speed and power for large residential entryways and light commercial properties. For massive industrial-grade barriers, high-capacity operators rated for 2500KG, 3000KG, and up to 5000KG effortlessly drive heavy industrial doors and high-security site barriers under continuous daily stress.
Working Principle: The drive unit converts electrical energy into linear travel via internal reduction gears, transferring high rotational torque through either a precision gear rack or heavy-duty drive chain mounted parallel to the sliding gate leaf. |
Power supply selection ranges from standard AC grid power to low-voltage DC configurations with battery backup systems and continuous solar charging capabilities.
Providing consistent electrical power is essential for perimeter access control systems. Engineers evaluate site location, backup power necessities, and cycle frequency to select the optimal electrical power topology for every automation project.
High-Voltage Mains Power Supply Standard mains voltage provides uninterrupted power for heavy-duty industrial operators. High-voltage installations drive high-torque induction motors capable of moving heavy industrial gates without requiring complex power step-down transformers.
Low-Voltage Direct Current with Battery Backup 24V direct current systems provide key operational benefits, including smooth soft-start and soft-stop functions and sensitive obstacle detection. Integrated battery backup power allows uninterrupted gate operation during unexpected municipal power outages.
Solar-Powered Off-Grid Solutions Remote agricultural or industrial perimeters often lack main power access. Solar power setups utilize efficient charging controllers, low-standby control boards, and deep-cycle batteries to maintain continuous gate operation using renewable energy.
To maintain maximum power efficiency, low standby consumption, and smooth acceleration curves across residential and commercial setups, engineers at OMKER integrate intelligent micro-controllers designed specifically for dynamic load adjustments.
Operational Tip: When selecting low-voltage DC systems with battery backup, always verify that battery capacity matches winter temperature performance drops to avoid mid-cycle gate stalls during cold climate conditions. |

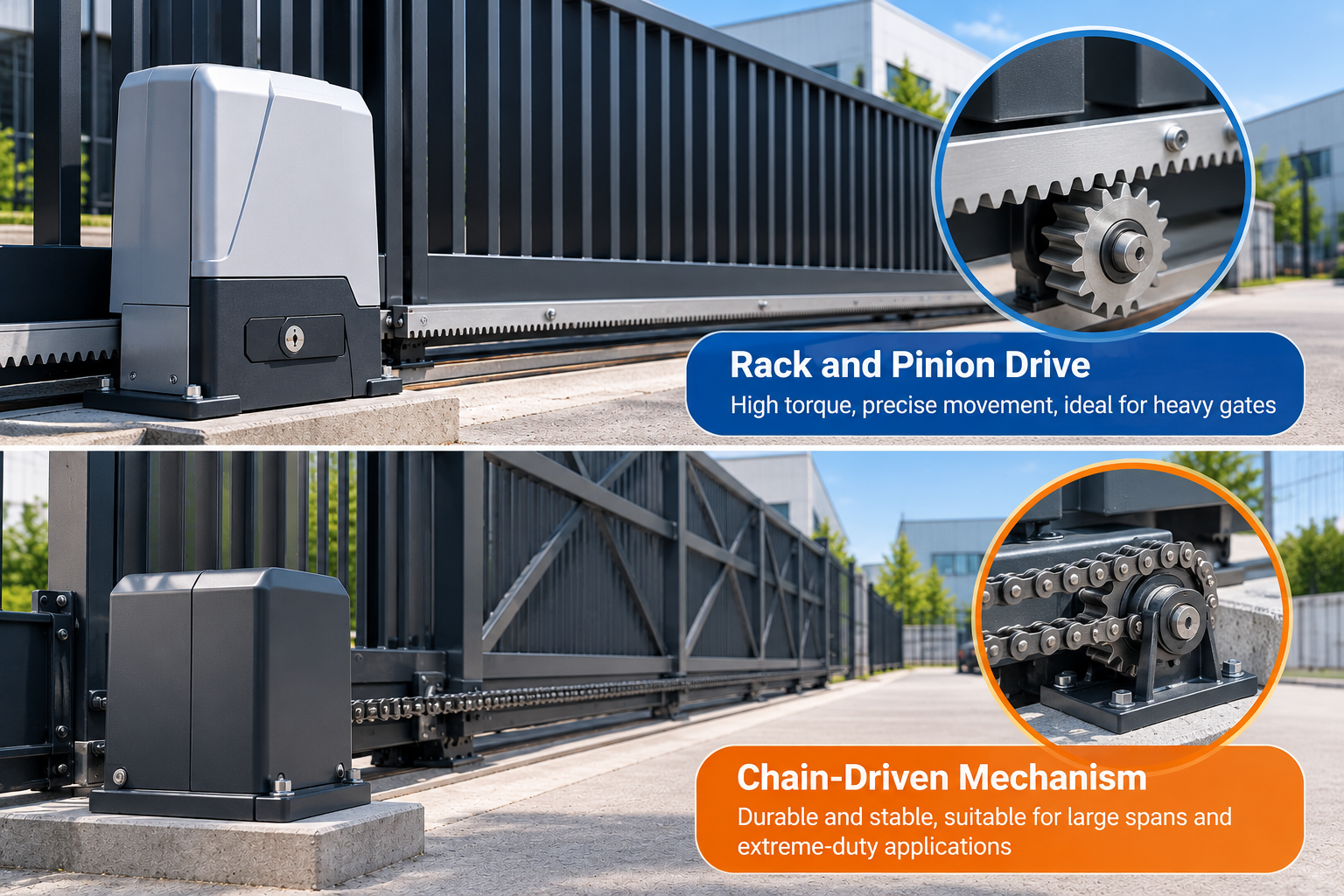

Modern industrial gate operators rely primarily on rack and pinion drive systems or heavy-duty chain drive setups to deliver reliable linear transmission.
Different architectural and structural requirements demand distinct drive mechanism geometries. Selecting between rack-driven and chain-driven automation depends on gate weight, length, track alignment precision, and site cleanliness factors.
Rack and pinion operators utilize a rotating drive gear engaged with a straight tooth rack mounted along the full length of the gate leaf.
This drive transmission method provides direct, slip-free drive force ideal for heavy rigid gates. Steel or heavy-duty reinforced racks ensure smooth linear speed and precise stopping positions when paired with magnetic limit switches.
High Mechanical Transmission Efficiency Direct tooth engagement eliminates drive slippage, maximizing motor efficiency and ensuring smooth gate movement even across long opening distances.
Precise Position Control Combined with digital rotary encoders, rack systems deliver precise position feedback, allowing exact slowdown points and immediate obstacle stopping responses.
Clean Aesthetics and Low Spatial Footprint The drive rack mounts directly to the gate structure, providing a compact installation profile that minimizes driveway encroachment.
Chain sliding gate operators use a drive sprocket to propel a continuous roller chain linked across the length of the gate frame.
Chain drive systems offer structural flexibility, making them suitable for site conditions where perfect gate frame alignment is difficult to maintain. The flexible nature of the drive chain absorbs minor structural variations without placing excessive lateral force on internal gearbox bearings.
Tolerance to Gate Frame Misalignment Flexible chain linkages accommodate minor foundation settling, thermal expansion, or non-linear gate frames that could otherwise cause rack binding.
High Durability in Harsh Terrain Heavy-duty roller chains perform reliably in environments with dirt, gravel, or high snow accumulation where ground-level gear racks might face debris obstructions.
Simplified Mechanical Adjustment Chain tensioners allow quick on-site mechanical adjustments without replacing mounted rack sections, lowering maintenance labor costs.
Choosing the correct sliding gate operator requires balancing electrical, mechanical, and perimeter security factors. Our engineering team provides custom drive specifications, torque calculations, and control board configurations tailored precisely to your operational requirements. Contact us to optimize your gate access infrastructure with reliable, high-performance sliding gate operators designed for maximum durability and safety compliance.
Designing and selecting sliding gate operators requires a comprehensive understanding of mechanical stress, electrical power parameters, duty cycle ratings, and specialized drive transmission methods. Residential operators focus on quiet performance, sleek aesthetics, and safety detection. Industrial operator systems prioritize structural strength, high starting torque, thermal management, continuous duty cycles, and robust physical security. By properly evaluating technical parameters such as gate mass, opening speed, power backup needs, and drive mechanism geometries, facility managers and system integrators ensure long-term operational performance, minimal downtime, and full compliance with international safety standards.
